Let’s learn about Ringspann Internal Freewheels FAV with Dai Hong Phat, through the following article!
1. About Dai Hong Phat – Ringspann Germany
– Dai Hong Phat is the official distributor of Ringspann Germany in Vietnam. We provide genuine transmission shaft coupling solutions that meet international standards, helping to optimize the performance and durability of machinery systems.
– Ringspann was founded in 1944 in Bad Homburg, Germany. Main products include: industrial brakes, freewheels, shaft-hub connections, solid & elastic couplings, Overload clutches, precision clamping fixtures, and remote control systems for many industries such as energy, machine tools, conveyors, and port equipment
– Ringspann Internal Freewheels FAV supplied by Dai Hong Phat are 100% genuine imported, with full CO/CQ, meeting international quality standards.
Reference: Other Ringspann internal freewheels lines
2. Characteristics of the Ringspann Freewheels FAV:
– Manufactured brand:Ringspann/Germany
– Wide size range with high torque capacity – Nominal torque up to 2,500 Nm. Maximum transmissible torque can reach 2× nominal torque, but proper selection must be based on actual load torque.
– Bore diameter: From 20 mm to 80 mm
– Maximum overrunning speed: Ranges from 220 to 1,600 rpm depending on model size (e.g., FAV 80 transmits 2,500 Nm at 220 rpm)
– Bearing type: Sleeve bearings ensure smooth operation
– Lubrication: Factory-filled with grease, designed for maintenance-free operation
– Weight: Approx. 1–9 kg depending on size
View more product “Ringspann Internal Freewheels FXN“
| FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT: SALES DEPARTMENT HOTLINE: +84906 955 057 – EMAIL: INFO@DHP-CORP.COM.VNb |
3. Applications of the Integrated Freewheels FAV:
The Ringspann FAV-815 is a complete roller-type freewheel with lever arm, ideal for backstop and indexing applications in low-to-medium speed systems. Known for its high torque handling, easy installation, stable performance, and virtually maintenance-free design.

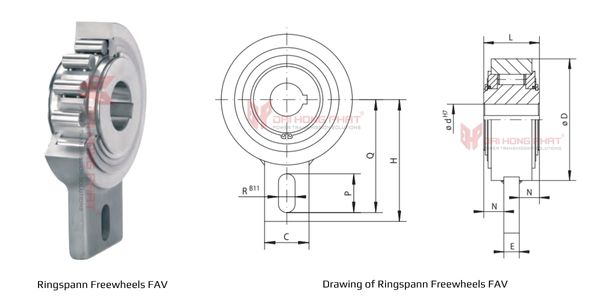

4. Technical drawing of the Intergrated Freewheels FAV:
| Catalogue Ringpann Freewheels FAV |
Installation Ringpann Freewheels FAV |
||||||
 |
|
| Freewheels size | Nominal Torque | Max. speed Inner ring freewheels | C | D | E | H | L | N | P | Q | R | Weight |
| Nm | min-1 | mm | kg | |||||||||
| FAV 20 | 220 | 500 | 20 | 40 | 12 | 90 | 35 | 11,5 | 35 | 85 | 15 | 1,3 |
| FAV 25 | 220 | 500 | 25 | 40 | 12 | 90 | 35 | 11,5 | 35 | 85 | 15 | 1,3 |
| FAV 30 | 1025 | 350 | 30 | 40 | 15 | 110 | 54 | 19,5 | 35 | 102 | 15 | 3,5 |
| FAV 35 | 1025 | 350 | 35 | 40 | 15 | 110 | 54 | 19,5 | 35 | 102 | 15 | 3,4 |
| FAV 40 | 1025 | 350 | 40 | 40 | 15 | 110 | 54 | 19,5 | 35 | 102 | 15 | 3,3 |
| FAV 45 | 1600 | 250 | 45 | 80 | 20 | 140 | 54 | 17,0 | 35 | 130 | 18 | 5,5 |
| FAV 50 | 1600 | 250 | 50 | 80 | 20 | 140 | 54 | 17,0 | 35 | 130 | 18 | 5,4 |
| FAV 55 | 1600 | 250 | 55 | 80 | 20 | 140 | 54 | 17,0 | 35 | 130 | 18 | 5,3 |
| FAV 60 | 1600 | 250 | 60 | 80 | 20 | 140 | 54 | 17,0 | 35 | 130 | 18 | 5,2 |
| FAV 70 | 1600 | 250 | 70 | 80 | 20 | 140 | 54 | 17,0 | 35 | 130 | 18 | 5,0 |
| FAV 80 | 2500 | 220 | 80 | 80 | 20 | 140 | 64 | 22,0 | 40 | 145 | 20 | 9,0 |
5. Why choose Dai Hong Phat?
– 100% genuine products imported directly from Ringspann Germany.
– Protect customers from counterfeit goods and always provide full CO/CQ documents.
– Goods in stock, fast delivery nationwide 24/7.
– Free technical advice and support for drawings and catalogs.
– Fine-tuning workshop to meet individual requirements.
—————–/—————–/—————–/—————–/—————–
With more than 15 years of experience, Dai Hong Phat Transmission Shaft Coupling is proud to be a trusted partner of hundreds of domestic and foreign enterprises.
Let us accompany your sustainable development!
