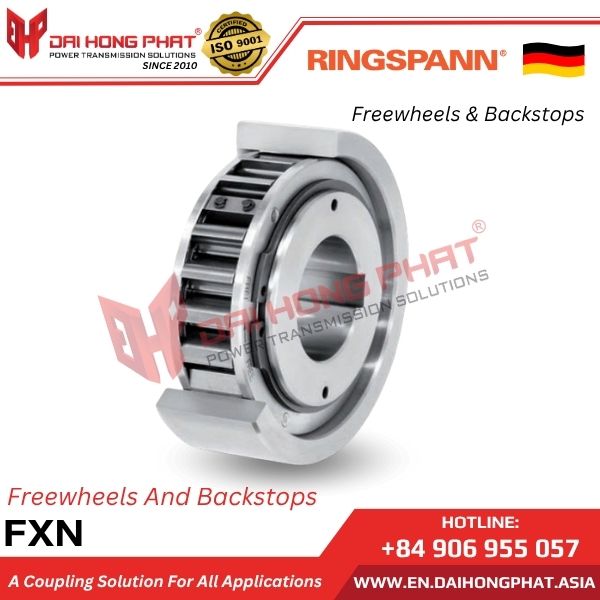

Ringspann Internal Freewheels FXN one-way clutch from Germany features advanced Sprag Lift-Off X technology to minimize wear during overrunning. Designed for use in electric motors and inclined conveyors, it offers a compact build, high torque capacity up to 20,500 Nm, and speeds up to 5,000 rpm – ideal for high-performance, long-lasting power transmission systems.

Dai Hong Phat shaft couplingis genuine distributor of Ringspann Germany in Vietnam.

Category: Ringspann Freewheels & Backstops Tags: Couplings Dai Hong Phat Corp, Ringspann Vietnam, Fluid Drive Coupling

Description

5/5 - (4 votes)

Let’s learn about Ringspann Internal Freewheels FXN with Dai Hong Phat, through the following article!

1. About Dai Hong Phat – Ringspann Germany

– Dai Hong Phat is the official distributor of Ringspann Germany in Vietnam. We provide genuine transmission shaft coupling solutions that meet international standards, helping to optimize the performance and durability of machinery systems.
– Ringspann was founded in 1944 in Bad Homburg, Germany. Main products include: industrial brakes, freewheels, shaft-hub connections, solid & elastic couplings, Overload clutches, precision clamping fixtures, and remote control systems for many industries such as energy, machine tools, conveyors, and port equipment
– Ringspann Internal Freewheels FXN supplied by Dai Hong Phat are 100% genuine imported, with full CO/CQ, meeting international quality standards.

Reference: Other Ringspann internal freewheels lines

2. Characteristics of the Ringspann Freewheels FXN:

– Manufactured brand:Ringspann/Germany
– Sprag-type one-way clutch (freewheel) without support bearings, equipped with sprag lift-off X technology to eliminate wear during overrunning operation.
– Operating principle – Sprag Lift-Off X: When the inner ring rotates at high speed, centrifugal force causes the sprags to lift off from the outer raceway (creating clearance “a”), resulting in near-zero contact and virtually no wear. This significantly increases the service life. When the speed decreases, springs return the sprags to their original position, ready to transmit torque.
– Mounting: The outer ring is press-fitted into the customer’s housing, allowing for a compact and space-saving design.
– Nominal torque capacity: Up to 20,500 Nm.
– Bore size: Up to 130 mm, with standard sizes available for quick delivery.
– Speed limit: The inner ring can freely overrun up to 5,000 rpm. At high speeds, sprags disengage from the outer ring to prevent wear. During load operation, the drive speed should not exceed 40% of the lift-off speed to ensure effective engagement.

View more product “Ringspann Complete Freewheels FGR“

FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT:
SALES DEPARTMENT
HOTLINE: +84906 955 057 – EMAIL: INFO@DHP-CORP.COM.VNb

3. Applications of the Integrated Freewheels FXN:

The FXN Backstop is designed for systems with high inner ring speeds during overrunning — such as electric motors or inclined conveyors — to prevent reverse rotation or backdriving when the machine stops.
Real-world examples:

In textile machinery, the FXN 66–25/100 NX freewheel is used in a creep drive system, enabling slow-speed start-up engagement and automatic disengagement at high speeds.
On inclined conveyors, the FXN 85–40/140 MX freewheel ensures the belt does not roll back when the motor stops.

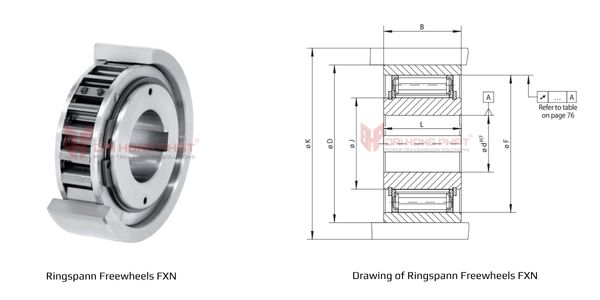

4. Technical drawing of the Intergrated Freewheels FXN:

Catalogue Ringpann Freewheels FXN				Installation Ringpann Freewheels FXN
