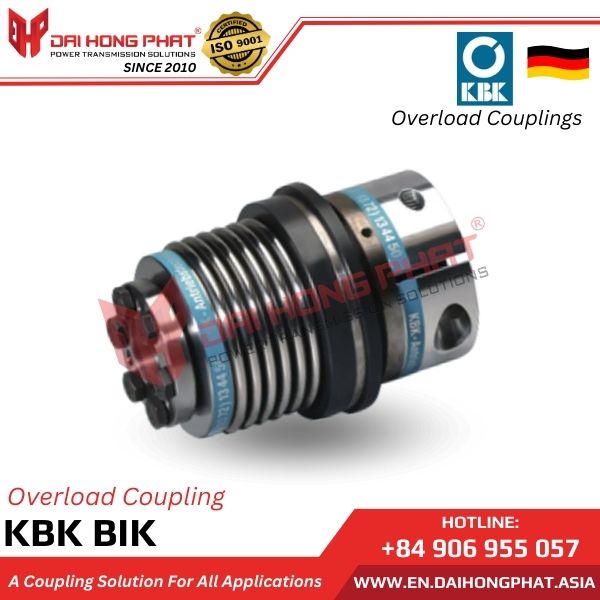

KBK BIK SAFETY COUPLING

The Safety Couplings KBK BIK feature torque ranges from 3 to 500Nm, outer diameters ranging from 49 to 129 mm, and bore diameters from 6 to 62 mm. This overload protection coupling combines optimized torques with the ability to compensate for shaft misalignment, making it widely used in industrial plants.

Category: KBK Overload Couplings Tags: KBK BIK, KBK Coupling, KBK distributors, Overload Coupling, Backlash-Free Torque Limiter, KBK Backlash-Free Torque Limiter, KBK BIK Overload Coupling, Safety Couplings KBK BIK

Description

5/5 - (1 vote)

1. Dai Hong Phat Corp. is the representative specializing in supplying all KBK Safety Coupling products throughout Vietnam:

– Established since 2003 and operating for over 18 years, KBK has expanded its presence in over 45 countries worldwide in the field of manufacturing industrial machinery parts.
– Dai Hong Phat has partnered with KBK, a leading European manufacturer of industrial machinery parts from Germany, renowned worldwide.
– We, at Dai Hong Phat, are the authorized importer and distributor of all 100% genuine KBK BIK Overload Coupling products in Vietnam.
– With over 15 years of commitment, Dai Hong Phat ensures that our customers purchase genuine 100% Safety Couplings KBK BIK with the highest quality and best prices in the market.

2. Characteristics of the Safety Couplings KBK BIK:

– The Safety Couplings KBK BIK are manufactured by KBK/Germany
– Safety coupling and overload coupling with no harsh reaction
– Compact internal tapered design for high clamping force on both sides
– Easy-to-assemble hub with center clamping
– Torque range: 3 – 500Nm
– Outer diameter: 49 – 129 mm
– Bore diameter: 6 – 62 mm
– Operating environment: -30°C to +120°C
– The overload protection coupling is a combination of optimized torques and the ability to compensate for shaft misalignment. Sprockets, chain discs, gears, or custom components can be directly assembled onto the coupling flange face with high precision.

View more product “Safety Couplings KBK BII“

FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT:
SALES DEPARTMENT
HOTLINE: +84906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN

3. Applications of the Safety Couplings KBK BIK:

Safety Couplings KBK BIK is widely used in light, medium, and heavy industrial manufacturing plants and production lines, including the wood industry, cement production, industrial steel manufacturing, shipyard industry, food processing, steel coil production, and more. Its primary function is to protect against sudden power outages or overload incidents. It is particularly used for mounting chain discs, pulleys, and more.

View more product “Safety Couplings KBK BIA“

4. Technical of the Safety Couplings KBK BIK:

Catalogue KBK BIK Overload Coupling				Installation KBK BIK Overload Coupling

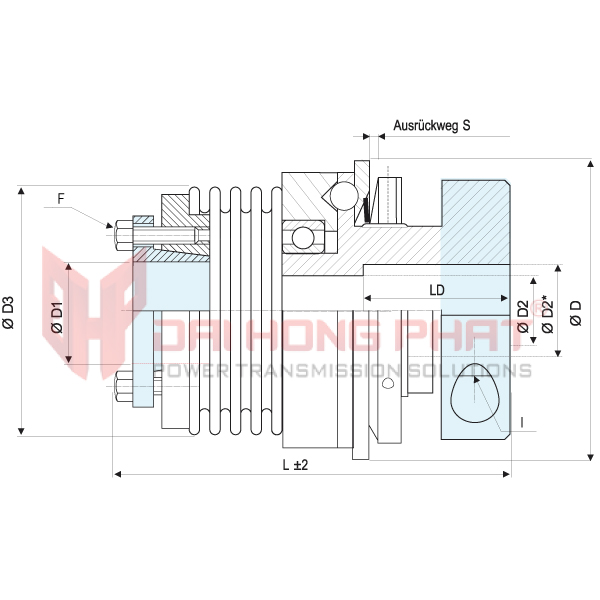

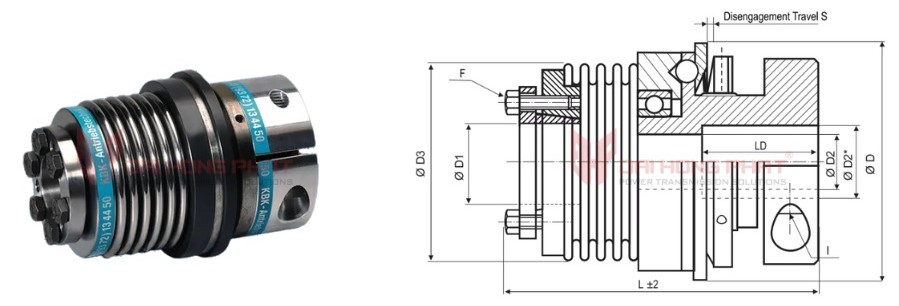

*Technical drawing of the Safety Couplings KBK BIK*

Size	Dimensions (mm)							Technical Data
	ØD	L	ØD1	ØD2	ØD3	F	I	max. speed	Mass	Torque Range
	Outer Ø	Length	Bore Size (H7) min~max	Bore Size (H7) min~max		Screw ISO4017 TA (Nm)	Screw ISO4762 TA (Nm)	(1/min)	(kg)	1 TKN (Nm)	2 TKN (Nm)
-10	49	68	6-14	6-16	40.5	M3	M4	11650	0.27	3 – 7	5 – 10
		78	10#	11#		2.1	5.1
-30	64	79	12-20	10-20	56.0	M5	M6	9540	0.81	5 – 15	10 – 30
		88	14#	14#		6	15
-60	79	97	15-25	12-28	66.0	M6	M8	8180	1.48	12 – 35	20 – 60
		107	18#	21#		8.5	36
-80	94	107	20-35	14-35	82.0	M6	M10	6220	3.20	15 – 40	30 – 80
		119	27#	27#		14	72
-150	94	107	20-35	14-35	82.0	M6	M10	6220	3.20	50 – 130	65 – 150
		119	27#	27#		14	72
-200	109	114	20-40	22-41	90.0	M6	M12	5720	3.90	30 – 90	80 – 200
		127	32#	33#		14	125
-300	119	133	25-50	30-50	110.0	M8	M12	5200	6.10	60 – 200	150 – 300
		143	41#	41#		18	125
-500	129	147	35-55	35-56	122.0	M8	M12	4470	8.40	80 – 250	200 – 500
		158	45#	46#		26	125

5. Why choose Dai Hong Phat Corp. as your supplier for KBK Backlash-Free Torque Limiter?

– Our customers will have the opportunity to purchase genuine KBK shaft couplings imported directly from KBK Germany.
– Dai Hong Phat will safeguard you against risks by providing genuine KBK Safety Coupling products and protecting you from counterfeit items.
– We ensure that all necessary CO/CQ documentation for Safety Couplings KBK BIK products will be provided to our customers.
– With a readily available stock of KBK BIK Coupling, Dai Hong Phat guarantees swift delivery to our customers.
– Technical drawings of the shaft couplings will be provided upon request to our customers.
– We maintain a highly skilled team of technical specialists to assist our customers with any inquiries or concerns they may have.
– Free consultation services are offered to optimize solutions for our customers’ plants with genuine Overload Coupling products from the Ringfeder brand.
– Our customers will receive the official KBK shaft coupling catalogue from Dai Hong Phat.
– We offer complimentary customization of technical specifications and dimensions for Backlash-Free Torque Limiter products according to our customers’ requirements.
– Our nationwide 24/7 delivery service ensures minimal downtime for our customers’ machinery.
– Dai Hong Phat boasts a professional workshop for precision machining tailored to our customers’ specific requests.
