1. Why choose Dai Hong Phat Corp. as your supplier for Flexible Jaw Couplings KTR?
– Genuine KTR Rotex DFN Flexible Coupling from KTR Germany.
– Dai Hong Phat protects against risks and counterfeits.
– Full CO/CQ documents.
– Products are always available, fast delivery.
– Provide technical drawings upon request.
– Dedicated consulting support by a team of professional technicians.
– Free consultation on optimal solutions for factories.
– Provide genuine catalogs.
– Free conversion of technical parameters upon request.
– Nationwide delivery 24/7, minimizing machine downtime.
– Professional fine-tuning workshop upon request.
2. Dai Hong Phat Corp. is the specialized representative for supplying all KTR products in Vietnam:
– Dai Hong Phat Corp. is the importer and distributor of 100% genuine Rotex DFN Flexible Jaw Couplings from the KTR brand in Vietnam (Authorized Distributor for KTR Products in Vietnam).
– With over 15 years of reputation, Dai Hong Phat ensures to provide customers with 100% genuine KTR products of the highest quality and the best prices on the market.
Mr. Arthur Low – Director of KTR Singapore visited Dai Hong Phat Company on a business trip

Certificate of Dai Hong Phat as Authorised Distributor of KTR Germany in Vietnam

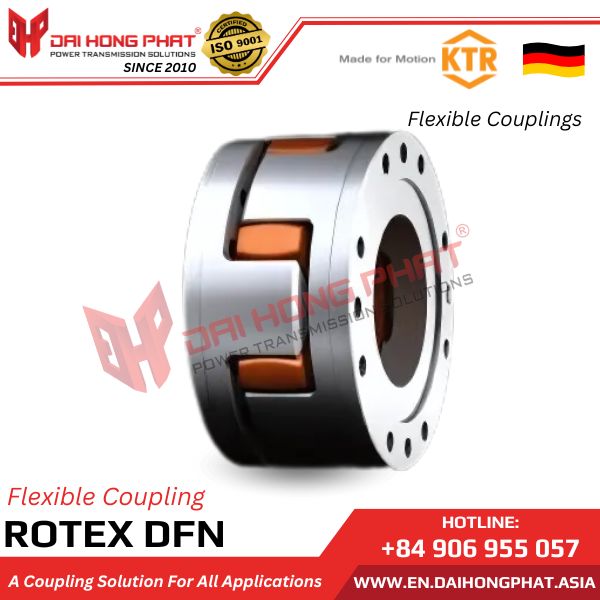

3. Characteristics of KTR Rotex DFN Flexible Couplings:
– Rotex DFN Flexible Jaw Couplings are manufactured by KTR/Germany.
– The coupling is a vibration-resistant, torsionally flexible flange coupling (flange coupling) with flange connections on both sides.
– Double-flange type for heavy-duty applications.
– Designed for driving and driven machine screw connections.
– Can be mounted axially without replacing other components.
– The spider can be replaced quickly.
– Flange material: part 3b made of GGG40 (nodular cast iron).
– Compact outer dimensions.
– Flange and drive center are available from stock.
– Coaxial, axial, angular compensation.
– Complies with ATEX regulations (according to EU Directive 2014/34/EU).
– No regular maintenance required.
– The jaw couplings ensure transmission of torque, vibration resistance, and absorption of vibrations caused by uneven machine operation.
– Rotex DFN coupling is a compactly designed flexible coupling. Despite the low weight and inertia of the flexible couplings, they can transmit high torsional moments. The compact shaft couplings are characterized by long service life and the sound operational characteristics generated by the entire machining process.
– All sizes of KTR Rotex DFN couplings have a maximum torsional angle of 5°. They can be mounted horizontally and vertically.
View more product “Rotex SD Flexible Jaw Couplings“
| FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT: SALES DEPARTMENT HOTLINE: +84 906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN |
4. Applications of KTR Rotex DFN Flexible Couplings:
The combination of the KTR Rotex DFN flexible couplings and this brake disc is used wherever braking or maintenance braking is required, such as on conveyor belts, power generators, turbine drive systems, industrial fans, shafts, and winches. Drive systems related to safety are better combined with Rotex centers made of steel/GJS. Applications with moderate demands can be combined with GJL centers.
5. Technical of KTR Rotex DFN Couplings:
| Catalogue KTR Rotex DFN Couplings |
Installation KTR Rotex DFN Couplings |
||||||

| Coupling (Model) |
Dimensions [mm] | |||||||
| DH | L | L1 | M | Z | pitch | D4 | D5 | |
| DFN- 24 | 55 | 34 | 30 | M5 | 8 | 8×45° | 45 | 36 |
| DFN-28 | 65 | 40 | 35 | M6 | 8 | 54 | 44 | |
| DFN-38 | 80 | 44 | 45 | M8 | 8 | 66 | 54 | |
| DFN-42 | 95 | 50 | 50 | M8 | 12 | 16×22.5° | 80 | 65 |
| DFN-48 | 105 | 52 | 56 | M8 | 12 | 90 | 75 | |
| DFN-55 | 120 | 62 | 65 | M10 | 8 | 8×45° | 102 | 84 |
| DFN-65 | 135 | 67 | 75 | M10 | 12 | 16×22.5° | 116 | 96 |
| DFN-75 | 160 | 78 | 85 | M12 | 15 | 20×18° | 136 | 112 |
| DFN-90 | 200 | 85 | 100 | M16 | 15 | 172 | 145 | |
| DFN-100 | 225 | 100 | 110 | M16 | 15 | 195 | 165 | |
| DFN-110 | 255 | 107 | 120 | M20 | 15 | 218 | 180 | |
| DFN-125 | 290 | 120 | 140 | M20 | 15 | 252 | 215 | |
| DFN-140 | 320 | 133 | 155 | M20 | 15 | 282 | 245 | |
| DFN-160 | 370 | 151 | 175 | M24 | 15 | 325 | 280 | |
| DFN-180 | 420 | 165 | 195 | M24 | 18 | 24×15° | 375 | 330 |
Customers purschasing KTR Rotex DFN Coupling at Dai Hong Phat.corp enjoy the following benefits?
– The KTR brand from Germany is a leading manufacturer of power transmission equipment worldwide. Since its establishment in 1950, KTR has consistently excelled in pioneering the design and innovation of various types of shaft couplings, hydraulic brakes, cooling systems, and hydraulic systems.
– We at Dai Hong Phat collaborate with KTR, a renowned manufacturer of power transmission equipment in Europe and worldwide.
– Dai Hong Phat Company commits to providing 100% genuine products of Rotex DFN Flexible Jaw Couplings, with brand new quality, accompanied by certification and clear origin from the KTR brand.
– The core value of our collaboration is to bring significant benefits to customers in terms of genuine shaft coupling solutions distributed by Dai Hong Phat.
