KTR CARDAN COUPLINGS G-GD (Universal Joint Couplings)

Contact for quotation: +84 906 955057

Status: In stock

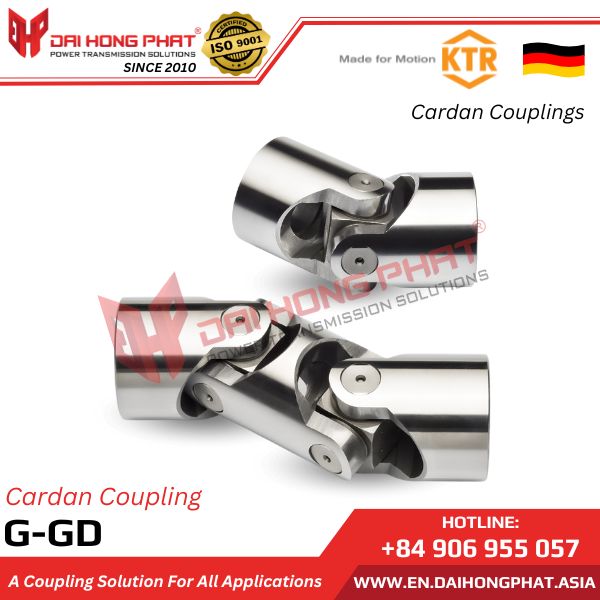

KTR Cardan Couplings G-GD (Universal joint couplings) is designed with a central joint piece and two shafts linked together by straps. The drive shaft joint comprises a central joint piece and two shafts connected by straps. The bearings of the joint ends are manufactured with plain bearings with precise G and GD designs.

Dai Hong Phat Transmission Shaft Couplings is the authorized distributor and genuine provider of KTR Germany in Vietnam.

Category: KTR Cardan Couplings Tags: KTR Vietnam, Small Cardan Coupling

Description

5/5 - (23 votes)

Let’s learn about KTR Cardan Couplings G-GD with Dai Hong Phat, through the following article!

1. About Dai Hong Phat Corp- KTR Germany

– Dai Hong Phat Corp is the official authorized representative of KTR Germany in Vietnam (KTR Vietnam). We provide genuine transmission shaft coupling solutions, meeting international standards, helping to optimize the performance and durability of machinery systems.
– KTR was established in 1959 in Germany. KTR is an abbreviation of
K – Kupplung (Coupling) | T – Technology (Technology) | R – Rheine (Region)
– KTR products: Rotex shaft coupling, Clampex shaft locking joint, hydraulic brake, …
– KTR Cardan Couplings G-GD products supplied by Dai Hong Phat are 100% genuine imported, with full CO/CQ, meeting international quality standards.

ktr-authorised-distributor-certificate-vietnam-dai-hong-phat-2026

Certificate of Dai Hong Phat as Authorized Distributor of KTR Germany in Vietnam

View more: Other KTR Cardan Couplings

2. Characteristics of KTR Cardan Couplings G-GD

– Manufacturer brand: KTR/Germany.
– Maximum Speed = 1,000 revolutions per minute (rpm)
– Maximum Misalignment Angle = 45° per coupling
– Maximum Bore Diameter = 50 mm
– Maximum Angular Compensation = 45° per coupling
– The Precisiom joint G-GD consists of a central joint hub and two yokes connected by straps. The bearings of the coupling ends are made of plain bearings with precise G and GD designs. The plain bearings of type G and GD limit the maximum allowable speed to 1,000 rpm. The maximum misalignment angle of the drive shaft on each coupling is 45°.
– The bearings allow for precise compensation of angular misalignment. Additionally, double joints with two trunnions can compensate for radial displacement. Extended couplings compensate for axial displacement in addition to angular and radial displacement.

View more products: Precision joint GR/HR (Universal Joint Couplings)

FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT:
SALES DEPARTMENT
HOTLINE: +84 906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN

3. Applications of KTR Cardan Couplings G-GD (Universal joint Couplings):

The Cardan Couplings G-GD (Universal Joint Couplings) are commonly used in industrial machinery, automotive systems, agricultural equipment, construction machinery, marine applications, aerospace equipment, power transmission systems, renewable energy systems, mining equipment, and railway transportation. They facilitate torque transmission between misaligned shafts in diverse applications, ensuring smooth operation and longevity of mechanical systems.

4. Technical specifications of the G-GD Cardan Coupling

Catalogue Cardan KTR G/GD				Installation Cardan KTR G/GD

cardan-couplings-g-gd

Type G and GD
Types and size				Dimensions											Weight [kg]
Size G	DIN designation G	Size GD	DIN designation GD	d (H7)	D	L2	L1	C	L4	L3	a (JS9)	b	Q (H10)	SW (H10)	G	GD
01 G	E6 x 16-G	01 GD	D6 x 16-G	6	16	34	17	8	22	56	2	7.0	6	6	0.05	0.08
02 G	E8 x 16-G	02 GD	D8 x 16-G	8	16	40	20	11	22	62	2	9.0	8	8	0.05	0.08
03 G	E10 x 22-G	03 GD	D10 x 22-G	10	22	48	24	12	26	74	3	11.4	10	10	0.10	0.15
04 G	E12 x 25-G	04 GD	D12 x 25-G	12	25	56	28	13	30	86	4	13.8	12	12	0.16	0.25
05 G	E14 x 28-G	05 GD	D14 x 28-G	14	28	60	30	14	36	96	5	16.3	14	14	0.20	0.40
1 G	E16 x 32-G	1 GD	D16 x 32-G	16	32	68	34	16	37	105	5	18.3	16	16	0.30	0.45
2 G	E18 x 36-G	2 GD	D18 x 36-G	18	36	74	37	17	40	114	6	20.8	18	18	0.45	0.70
3 G	E20 x 42-G	3 GD	D20 x 42-G	20	42	82	41	18	47	129	6	22.8	20	20	0.60	1.00
4 G	E22 x 45-G	4 GD	D22 x 45-G	22	45	95	47.5	22	50	145	6	24.8	22	22	0.95	1.55
5 G	E25 x 50-G	5 GD	D25 x 50-G	25	50	108	54	26	55	163	8	28.3	25	25	1.20	2.00
6 G	E30 x 58-G	6 GD	D30 x 58-G	30	58	122	61	29	68	190	8	33.3	30	30	1.85	2.90
6 G1	E32 x 58-G	6 GD1	D32 x 58-G	32	58	130	65	33	68	198	10	35.3	30	30	2.00	3.00
7 G	E35 x 70-G	7 GD	D35 x 70-G	35	70	140	70	33	72	212	10	38.3	–	–	3.15	4.75
8 G	E40 x 80-G	8 GD	D40 x 80-G	40	80	160	80	38	85	245	12	43.3	–	–	4.60	7.20
9 G	E50 x 95-G	9 GD	D50 x 95-G	50	95	190	95	46	100	290	14	53.8	–	–	7.60	12.0

5. Why choose Dai Hong Phat Corp?

– 100% genuine products imported directly from KTR Germany.
– Protect customers from counterfeit goods and always provide full CO/CQ documents.
– Goods in stock, fast delivery nationwide 24/7.
– Free technical consultation and support for drawings, catalogs.
– Refined processing workshop to meet individual requirements.

—————-/—————–/—————–/—————–/—————–

With more than 15 years of experience, Dai Hong Phat Transmission Shaft Coupling is proud to be a trusted partner of hundreds of domestic and foreign enterprises.

We don’t just sell products — we help select the right coupling to ensure smooth, stable, and long-lasting system performance.

Let us accompany your sustainable development!
