MAV 3008 SHRINK DISC

The Shrink Disc MAV 3008 provides a non-positive connection, without any friction, between an outer hollow shaft and an inner locking element. The device is mounted onto the outer diameter of the hub and attached to the shaft.

Description

5/5 - (1 vote)

1. What makes Dai Hong Phat Corp. the ideal choice for your Shrink Disc MAV supplier?

– You will be able to purchase 100% genuine Shrink Disc MAV 3008 directly imported by Dai Hong Phat from the manufacturer.
– You can trust Dai Hong Phat to protect you from risks and counterfeit products of MAV.
– Dai Hong Phat provides complete CO/CQ documents for Shrink Disc MAV.
– MAV products are always available in Dai Hong Phat’s warehouse, ensuring fast delivery to customers.
– Dai Hong Phat will provide technical drawings of the MAV products you purchase upon request.
– Dai Hong Phat offers dedicated support and consultation to customers regarding bolted flexible couplings, with a team of highly skilled technical specialists.
– Dai Hong Phat provides free consultation on optimal solutions for your plant regarding genuine MAV Products.
– Dai Hong Phat provides customers with genuine Shrink Disc MAV catalogues.
– Dai Hong Phat offers free technical parameter conversion and customization of MAV 3008 according to customer requirements.
– Dai Hong Phat provides nationwide 24/7 delivery services, minimizing downtime for your machinery.
– Dai Hong Phat has a professional workshop for custom machining according to customers’ specific requirements.

2. Dai Hong Phat Corp. is the specialized representative for supplying all Shrink Disc MAV products throughout Vietnam:

– Dai Hong Phat is the exclusive importer and distributor of all 100% genuine MAV brand shrink disc products across Vietnam and the Southeast Asia region.
– With over 10 years of reputable service, Dai Hong Phat ensures customers acquire 100% authentic Shrink Disc MAV 3008 products with high quality and the best prices in the market.

3. Characteristics of Shrink Disc MAV 3008:

– Shrink Disc MAV 3008 is manufactured by MAV/Italy.
– Inner diameter d: 12-500 mm.
– Outer diameter D: 35-850 mm.
– Total length L: 14.5-231.7 mm.
– Torque T: 20,900-1.553Mio Nm.
– Two-part design.
– Self-releasing cone, lubricated with MoS2 (μ = 0.05).
– Standard series, medium capacity.
– Diameter tolerance at the center: h8.
– Surface finish of the shaft and hub: Ra <3.2 μm.
– The MAV 3008 shrink disc is suitable for transferring torque, axial loads, and bending moments, individually or in combination. The applied load is transferred through pressure and friction between the contact surfaces of the shaft and hub. Under high-temperature conditions, it generates high radial pressure on the hub and shaft.

View more product “Shrink Disc MAV 2008“

FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT:
SALES DEPARTMENT
HOTLINE: +84906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN

4. Applications of Shrink Disc MAV 3008:

The Shrink Disc MAV 3008 is widely used in various industries today due to its cost-effective solution. It is utilized in medical machinery, food processing, woodworking, and more.

5. Technical of Shrink Disc MAV 3008:

Catalogue MAV 3008				Installation MAV 3008

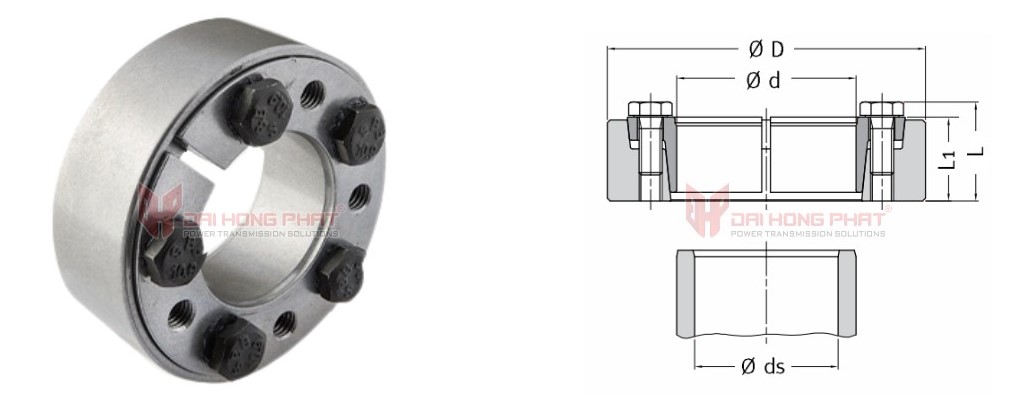

*Technical drawing of Shrink Disc MAV 3008*

DIMENSIONS				SCREWS		FEATURES				WEIGHT
ds mm	d mm x D mm	L1 mm	L mm	size	Ma Nm	Mt Nm	Fax kN	Ps MPa	Ph MPa	kg
9	12 x 35	14.5	11	M 5	5	21	4.6	122	301	0.07
10	12 x 35	14.5	11	M 5	5	40	7.9	188	301	0.07
11	14 x 38	14.5	11	M 5	5	29	5.3	114	258	0.08
12	14 x 38	14.5	11	M 5	5	51	8.4	167	258	0.08
13	16 x 41	19	15	M 6	12	96	14	200	308	0.13
14	16 x 41	19	15	M 6	12	132	18	239	308	0.13
15	18 x 44	19	15	M 6	12	121	16	190	274	0.14
16	18 x 44	19	15	M 6	12	159	19	220	274	0.14
17	20 x 47	19	15	M 6	12	146	17	179	247	0.15
18	20 x 47	19	15	M 6	12	186	20	203	247	0.15
19	24 x 50	22	18	M 6	12	172	18	145	235	0.20
20						218	21	165	235
21						267	25	184	235
24	30 x 60	24	20	M 6	12	297	24	137	205	0.31
25						352	28	150	205
26						412	31	162	205
28	36 x 72	27.3	22	M 8	30	563	40	169	234	0.49
30						714	47	187	234
31						722	46	177	234
34	44 x 80	29.3	24	M 8	30	734	43	135	215	0.62
35						831	47	144	215
36						933	51	153	215
38	50 x 90	31.3	26	M 8	30	1,230	65	166	241	0.83
40						1,490	74	180	241
42						1,760	84	193	241
42	55 x 100	34.3	29	M 8	30	1,640	78	172	240	1.2
45						2,080	92	190	240
48						2,560	107	206	240
48	62 x 110	34.3	29	M 8	30	1,940	81	156	213	1.4
50						2,230	89	165	213
52						2,340	90	160	213
50	68 x 115	34.3	29	M 8	30	1,810	72	134	218	1.4
55						2,620	95	160	218
60						3,590	119	184	218
55	75 x 138	37.4	31	M 10	59	2,770	100	156	233	2.3
60						3,760	125	178	233
65						4,910	151	197	233
60	80 x 145	37.4	31	M 10	59	3,200	106	151	218	2.5
65						4,230	130	170	218
70						5,400	154	187	218
65	90 x 155	44.4	38	M 10	59	4,730	145	159	226	3.4
70						6,030	172	174	226
75						7,500	200	189	226
70	100 x 170	49.4	43	M 10	59	6,440	184	164	231	4.7
75						7,990	213	177	231
80						9,720	243	190	231
75	110 x 185	56.5	49	M 12	100	8,810	234	170	236	6.2
80						10,600	267	182	236
85						11,700	277	178	236
80	115 x 197	60.5	53	M 12	100	11,200	280	177	236	7.6
85						12,200	286	170	236
90						14,700	326	183	236
85	120 x 197	60.5	53	M 12	100	11,000	259	154	226	7.3
90						13,300	296	166	226
95						15,900	334	178	226
85	125 x 215	60.5	53	M 12	100	11,600	274	163	241	9.2
90						14,000	312	175	241
95						16,600	350	186	241
85	130 x 215	60.5	53	M 12	100	10,600	250	149	232	8.8
90						12,800	286	161	232
95						15,300	322	171	232
90	135 x 230	66.8	58	M 14	160	13,000	289	148	224	11
95						15,200	326	159	224
100						18,200	365	169	224
95	140 x 230	66.8	58	M 14	160	14,300	301	146	216	11
100						16,800	337	156	216
105						19,600	375	165	216
105	155 x 263	70.8	62	M 14	160	20,900	398	161	224	16
110						24,000	437	169	224
115						27,400	477	176	224
115	165 x 290	78	68	M 16	250	31,700	551	182	237	22
120						35,800	597	189	237
125						39,100	626	190	237
125	175 x 300	78	68	M 16	250	40,000	640	194	248	23
130						44,700	688	201	248
135						49,700	737	207	248
135	180 x 320	95	85	M 16	250	56,000	829	184	228	34
140						62,100	887	189	228
145						68,500	945	195	228
135	185 x 320	95	85	M 16	250	53,100	787	174	222	33
140						59,000	843	180	222
145						65,200	899	185	222
150	200 x 340	95	85	M 16	250	75,100	1,000	200	240	37
155						82,000	1,050	204	240
160						89,300	1,110	209	240
160	220 x 370	115.5	103	M 20	490	103,000	1,290	195	236	53
165						112,000	1,360	199	236
170						121,000	1,430	203	236
170	240 x 405	119.5	107	M 20	490	125,000	1,470	201	241	66
180						145,000	1,610	208	241
190						164,000	1,730	211	241
190	260 x 430	131.5	119	M 20	490	165,000	1,740	189	227	81
200						189,000	1,890	196	227
210						215,000	2,050	202	227
210	280 x 460	144.5	132	M 20	490	215,000	2,050	182	214	104
220						243,000	2,210	188	214
230						273,000	2,370	193	214
230	300 x 485	155	140	M 24	840	299,000	2,600	197	224	120
240						333,000	2,770	201	224
250						369,000	2,950	205	224
240	320 x 520	155	140	M 24	840	301,000	2,510	182	210	139
250						334,000	2,670	186	210
260						365,000	2,800	188	210
250	340 x 570	170	155	M 24	840	410,000	3,280	208	236	191
260						445,000	3,430	209	236
270						489,000	3,630	213	236
260	350 x 580	174	159	M 24	840	432,000	3,320	194	223	200
270						475,000	3,520	198	223
280						520,000	3,710	201	223
280	360 x 590	174	159	M 24	840	527,000	3,760	204	228	205
290						575,000	3,960	207	228
300						625,000	4,160	211	228
300	390 x 650	183	166	M 27	1250	640,000	4,270	210	233	252
310						693,000	4,470	213	233
320						743,000	4,640	214	233
330	420 x 670	203	186	M 27	1250	809,000	4,900	192	214	288
340						871,000	5,120	195	214
350						935,000	5,340	198	214
340	440 x 740	211	194	M 27	1250	909,000	5,350	194	216	392
350						976,000	5,580	197	216
360						1,046,000	5,810	199	216
360	460 x 770	211	194	M 27	1250	1,035,000	5,750	197	217	423
370						1,106,000	5,980	199	217
380						1,179,000	6,210	202	217
380	480 x 800	231.7	213	M 30	1700	1,302,000	6,850	204	222	498
390						1,386,000	7,100	206	222
400						1,472,000	7,360	208	222
400	500 x 850	231.7	213	M 30	1700	1,391,000	6,950	196	213	575
410						1,465,000	7,140	197	213
420						1,553,000	7,390	199	213
