Let’s learn about KTR Bellhousing PSG (for servo hydraulics) with Dai Hong Phat, through the following article!
1. About Dai Hong Phat Corp- KTR Germany
– Dai Hong Phat Corp is the official authorized representative of KTR Germany in Vietnam (KTR Vietnam). We provide genuine transmission shaft coupling solutions, meeting international standards, helping to optimize the performance and durability of machinery systems.
– KTR was established in 1959 in Germany. KTR is an abbreviation of
K – Kupplung (Coupling) | T – Technology (Technology) | R – Rheine (Region)
– KTR products: Rotex shaft coupling, Clampex shaft locking joint, hydraulic brake, …
– KTR Bellhousing PSG products supplied by Dai Hong Phat are 100% genuine imported, with full CO/CQ, meeting international quality standards.
Certificate of Dai Hong Phat as Authorized Distributor of KTR Germany in Vietnam
See more: Other KTR Bellhousing

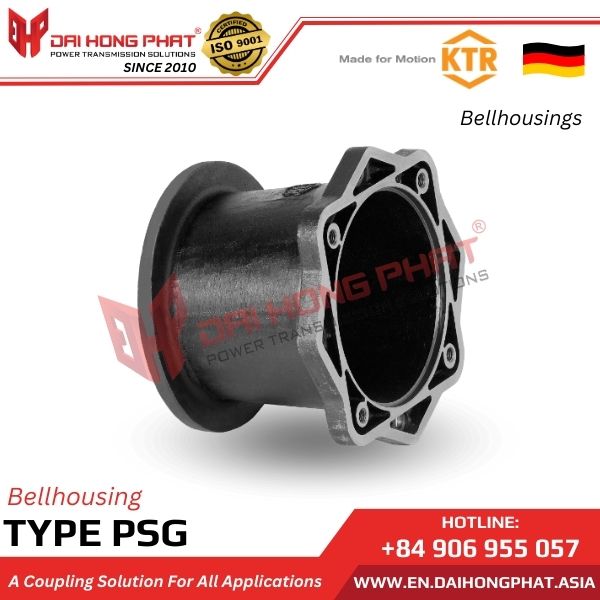

2. Characteristics KTR Bellhousing PSG
– Manufactured brand: KTR/Germany
– The KTR housing is made of high-quality steel.
– Available in both circular and rectangular shapes on the motor side.
– Flange sizes are designed to fit the square mounting pattern of servo motors.
– The size of the pump housing goes up to 300 mm, fabricated from bar stock with dimensions of 350 mm and welded construction.
View more product: BellHousing PS
| FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT: SALES DEPARTMENT HOTLINE: +84 906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN |
3. Applications KTR Bellhousing PSG
The BellHousing KTR PSG is made of high-quality steel, ensuring durability and precise operation. Therefore, it is applied for special needs, such as heavy loads and impacts during operation. Additionally, the hydraulic pump cover is also used for servo hydraulic systems.
4. Technical KTR Bellhousing PSG
| Catalogue BellHousing KTR PSG |
Installation BellHousing KTR PSG |
||||||
 |
|
| Bellhousing size | A1 | B | B1 | B3 | h | K | M | L1 | L3 | L5 | B5 | Min. B4 |
Venting hole | Drain port | ||
| B9 | L7 | B20 | L21 | |||||||||||||
| PSG 200/1/.. | 200 | 165 | 130 | 145 | 7 | 11 | M10 | 124 | 16 | 12 | 170 | 55 | 36 | 60 | 7.5 | 36 |
| PSG 250/1/.. | 250 | 215 | 180 | 190 | 7 | 13.5 | M12 | 175 | 19 | 12 | 228 | 70 | 40 | 77 | 7.5 | 43 |
| PSG 250/2/.. | 250 | 215 | 180 | 190 | 7 | 13.5 | M12 | 155 | 19 | 14 | 180 | 69 | 40 | 65 | 7.5 | 43 |
| PSG 350/10/.. | 350 | 300 | 250 | 260 | 7 | 17.5 | M16 | 228 | 26 | 17 | 255 | 95 | 50 | 102 | 7.5 | 51 |
| PSG 350/16/.. | 350 | 300 | 250 | 260 | 7 | 17.5 | M16 | 204 | 26 | 17 | 350 | 139 | 50 | 87 | 7.5 | 51 |
5. Why choose Dai Hong Phat Corp?
– 100% genuine products imported directly from KTR Germany.
– Protect customers from counterfeit goods and always provide full CO/CQ documents.
– Goods in stock, fast delivery nationwide 24/7.
– Free technical consultation and support for drawings, catalogs.
– Refined processing workshop to meet individual requirements.
—————-/—————–/—————–/—————–/—————–
