Let’s learn about KTR Bellhousing PG (made of cast iron) with Dai Hong Phat, through the following article!
1. About Dai Hong Phat Corp- KTR Germany
– Dai Hong Phat Corp is the official authorized representative of KTR Germany in Vietnam (KTR Vietnam). We provide genuine transmission shaft coupling solutions, meeting international standards, helping to optimize the performance and durability of machinery systems.
– KTR was established in 1959 in Germany. KTR is an abbreviation of
K – Kupplung (Coupling) | T – Technology (Technology) | R – Rheine (Region)
– KTR products: Rotex shaft coupling, Clampex shaft locking joint, hydraulic brake, …
– KTR Bellhousing PG products supplied by Dai Hong Phat are 100% genuine imported, with full CO/CQ, meeting international quality standards.
Certificate of Dai Hong Phat as Authorized Distributor of KTR Germany in Vietnam
See more: Other KTR Bellhousing

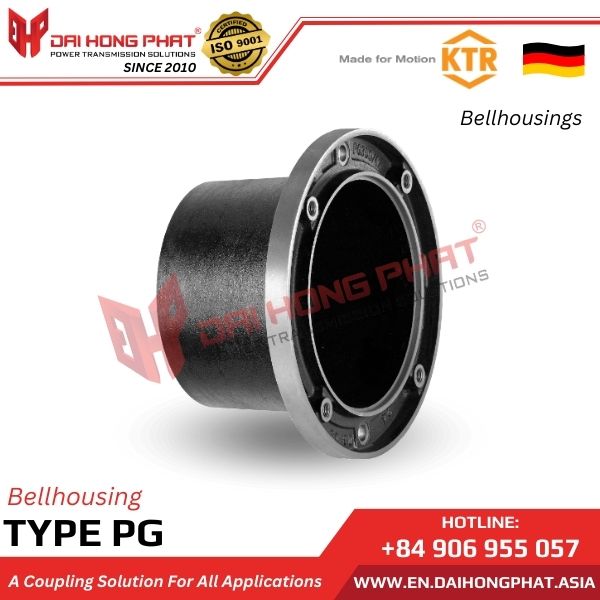

2. Characteristics KTR Bellhousing PG
– Manufactured brand: KTR/Germany
– The pump mounting bracket is made of high-strength cast iron material.
– Can be mounted horizontally combined with the KTR foot flange.
– The pump mounting bracket is available with ventilation and oil drainage holes upon request.
– It has noise reduction characteristics.
– Used on servo motors.
View more product: BellHousing PG
| FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT: SALES DEPARTMENT HOTLINE: +84 906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN |
3. Applications KTR Bellhousing PG
The BellHousing PG is made of cast iron, providing higher rigidity compared to other materials. Therefore, it is applied for special requirements, such as heavy loads and impacts during operation. Additionally, the BellHousing KTR is also used in the marine and mining industries.
4. Technical drawing KTR Bellhousing PG
| Catalogue BellHousing KTR PG |
Installation BellHousing KTR PG |
||||||
 |
|
| Bellhousing size | Dimensions [mm] | |||||||||||||||
| A1 | B | B1 | B3 | h | K | M | L1 | L3 | L5 | B5 | Min. B4 |
Venting hole | Drain port | |||
| B9 | L7 | B20 | L21 | |||||||||||||
| PG 300/5/.. | 300 | 265 | 230 | 234 | 5 | 14 | M12 | 144 | 20 | 15 | 215 | 30 | 50 | 63 | 7.5 | 45 |
| PG 350/4/.. | 350 | 300 | 250 | 260 | 7 | 17 | M16 | 188 | 26 | 15 | 242 | 76 | 50 | 82 | 7.5 | 51 |
| PG 350/6/.. | 204 | 235 | 87 | |||||||||||||
| PG 400/2/.. | 400 | 350 | 300 | 300 | 7 | 17 | M16 | 256 | 26 | 20 | 280 | 97 | 50 | 118 | 7.5 | 51 |
| PG 400/4/.. | 204 | 260 | 92 | |||||||||||||
| PG 400/5/.. | 228 | 280 | 104 | |||||||||||||
| PG 450/2/.. | 450 | 400 | 350 | 350 | 7 | 17 | M16 | 234 | 26 | 24 | 289 | 97 | 50 | 107 | 7.5 | 51 |
| PG 450/3/.. | 262 | 20 | 315 | 91 | 121 | |||||||||||
| PG 550/1/.. | 550 | 500 | 450 | 450 | 7 | 17 | M16 | 265 | 26 | 25 | 360 | 97 | 50 | 125 | 7.5 | 51 |
| PG 550/8/.. | 248 | 349 | 116 | |||||||||||||
| PG 660/3/.. | 660 | 600 | 550 | 550 | 8 | 22 | M20 | 279 | 32 | 33 | 425 | 119 | 50 | 157 | 7.5 | 60 |
| PG 660/5/.. | 330 | 157 | ||||||||||||||
5. Why choose Dai Hong Phat Corp?
– 100% genuine products imported directly from KTR Germany.
– Protect customers from counterfeit goods and always provide full CO/CQ documents.
– Goods in stock, fast delivery nationwide 24/7.
– Free technical consultation and support for drawings, catalogs.
– Refined processing workshop to meet individual requirements.
—————-/—————–/—————–/—————–/—————–
