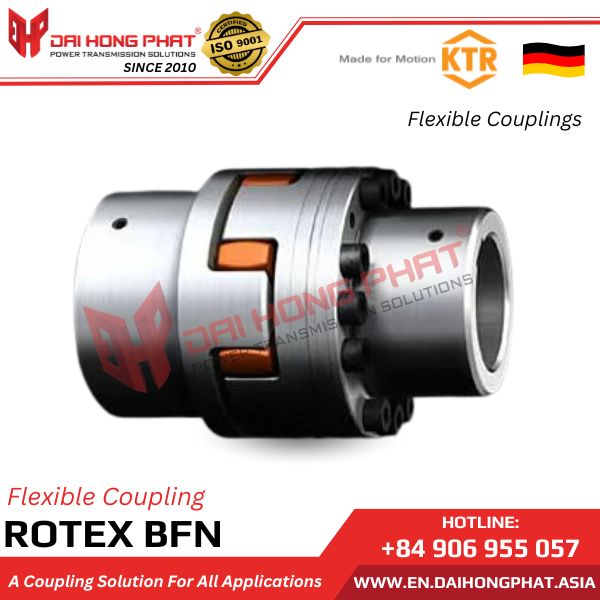

KTR FLEXIBLE COUPLINGS ROTEX BFN

The KTR Flexible Couplings Rotex BFN (ROTEX AFN and BFN Flexible Jaw Couplings) are flexible, torsionally shaped couplings and are particularly suitable for heavy-duty industrial applications. The design of the shaft coupling is characterized by a flange type that allows the assembly and disassembly of the coupling or rubber washer without moving the drive or driven surface.

Dai Hong Phat Transmission Shaft Couplings is the authorized distributor and genuine provider of KTR Germany in Vietnam.

Category: KTR Flexible Couplings Tags: pump coupling, KTR Vietnam, Rotex Couplings, Couplings Dai Hong Phat Corp, Flexible Shaft Couplings

Description

5/5 - (3 votes)

Let’s learn about KTR Flexible Couplings Rotex BFN with Dai Hong Phat, through the following article!

1. About Dai Hong Phat Corp- KTR Germany

– Dai Hong Phat Corp is the official authorized representative of KTR Germany in Vietnam (KTR Vietnam). We provide genuine transmission shaft coupling solutions, meeting international standards, helping to optimize the performance and durability of machinery systems.
– KTR was established in 1959 in Germany. KTR is an abbreviation of
K – Kupplung (Coupling) | T – Technology (Technology) | R – Rheine (Region)
– KTR products: Rotex shaft coupling, Clampex shaft locking joint, hydraulic brake, …
– KTR Flexible Couplings Rotex BFN products supplied by Dai Hong Phat are 100% genuine imported, with full CO/CQ, meeting international quality standards.

ktr-goods-agent-certificate Certificate of Dai Hong Phat as Authorized Distributor of KTR Germany in Vietnam

See more: Other KTR Flexible Couplings

2. Characteristics of KTR Flexible Couplings Rotex BFN

– Manufacturer brand: KTR/Germany.
– Flexible flange coupling / jaw coupling.
– Low inertia device.
– Plug-in shaft alignment, rubber insert replaceable.
– Material: Center hub 4N made of steel, driving flange 3Na made of GJS.
– Electrical lines can be interrupted by removing screws.
– ATEX standard compliant (according to EU Directive 2014/34/EU).
– Ability to dampen shock and vibration.
– Inline, offset, angular compensation.
– Low maintenance requirement, long service life.
– The KTR Rotex BFN coupling ensures the transmission of torque while reducing torsional vibrations and absorbing shocks caused by uneven machinery operation. The component is ideal for transmitting torque while reducing vibration and shock absorption.
– The design of the shaft coupling is characterized by a flange type that allows for easy assembly and disassembly of the shaft coupling or rubber insert without displacing the drive or driven components.

See more products: KTR Flexible Couplings AH
See more specifications: KTR Elastomer Rings Rotex

FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT:
SALES DEPARTMENT
HOTLINE: +84 906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN

3. Applications of KTR Flexible Couplings Rotex BFN

The KTR Rotex DF Flexible Jaw Couplings are equipped with the new temperature-resistant T-PUR® rubber, available in three different Shore hardness levels. The shaft coupling ensures the transmission of torque while reducing torsional vibrations and absorbing shocks caused by uneven machinery operation.

See article: Top 5+ Shaft Couplings for Machine Manufacturing

4. Technical specifications of KTR Rotex BFN Flexible Jaw Coupling

Catalogue KTR Rotex BFN Coupling				Installation KTR Rotex BFN Coupling

*Technical drawing of Rotex BFN Flexible Jaw Couplings*

Coupling Model	Dimensions [mm]								TA [Nm]
Coupling Model	D1	DH	DN2	D4	L1; L2	S	B1	L	TA [Nm]
BFN-24	27	55	36	45	30	2	15	86	10
BFN-28	30	65	42	54	35	2.5	15	100	17
BFN-38	38	80	52	66	45	3	18	124	41
BFN-42	45	95	62	80	50	3	20	138	41
BFN-48	52	105	70	90	56	3.5	21	152	41
BFN-55	60	120	80	102	65	4	22	176	83
BFN-65	70	135	94	116	75	4.5	26	201	83
BFN-75	80	160	108	136	85	5	30	229	120
BFN-90	105	200	142	172	100	5.5	34	265	295
BFN-100	115	225	158	195	110	6	38	295	295
BFN-110	130	255	178	218	120	6.5	42	321	580
BFN-125	150	290	206	252	140	7	46	370	580
BFN-140	170	320	235	282	155	7.5	50	409	580
BFN-160	200	370	270	325	175	9	57	463	1000
BFN-180	230	420	315	375	195	10.5	64	515	1000

5. Why choose Dai Hong Phat Corp?

– 100% genuine products imported directly from KTR Germany.
– Protect customers from counterfeit goods and always provide full CO/CQ documents.
– Goods in stock, fast delivery nationwide 24/7.
– Free technical consultation and support for drawings, catalogs.
– Refined processing workshop to meet individual requirements.

—————-/—————–/—————–/—————–/—————–

With more than 15 years of experience, Dai Hong Phat Transmissions Shaft Couplings is proud to be a trusted partner of hundreds of domestic and foreign enterprises.
Let us accompany your sustainable development!
