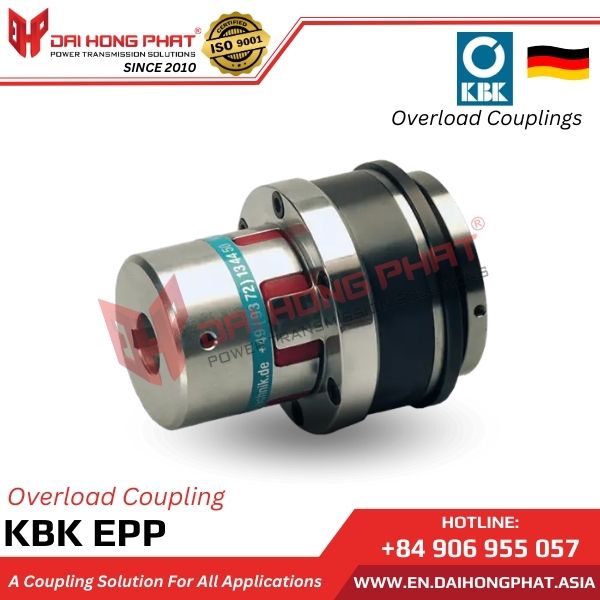

KBK EPP SAFETY COUPLING

The KBK EPP Safety Couplings are designed with excellent shock absorption capabilities, axial misalignment compensation, and the ability to connect vertically. Additionally, the coupling’s properties can be adjusted as needed. With a torque range of 3 – 500 Nm, an outer diameter ranging from 49 to 129 mm, and a bore diameter between 6 and 55 mm, these safety couplings offer versatility and reliability for various applications.

Description

5/5 - (1 vote)

1. Dai Hong Phat Corp. is the representative specializing in supplying all KBK Safety Coupling products throughout Vietnam:

– Established since 2003 and operating for over 18 years, KBK has expanded its presence in over 45 countries worldwide in the field of manufacturing industrial machinery parts.
– Dai Hong Phat has partnered with KBK, a leading European manufacturer of industrial machinery parts from Germany, renowned worldwide.
– We, at Dai Hong Phat, are the authorized importer and distributor of all 100% genuine KBK EPP Overload Coupling products in Vietnam.
– With over 15 years of commitment, Dai Hong Phat ensures that our customers purchase genuine 100% Safety Couplings KBK EPP with the highest quality and best prices in the market.

2. Characteristics of the Safety Couplings KBK EPP:

– The Safety Couplings KBK EPP are manufactured by KBK/Germany.
– Torque range: 3 – 500 Nm.
– Outer diameter: 49 – 129 mm.
– Bore diameter: 6 – 55 mm.
– Excellent shock absorption capability, axial misalignment compensation, and ability to connect vertically.
– Adjustable properties of the coupling.
– The KBK EPP Coupling is a combination of optimized torques and axial misalignment compensation. Sprockets, chain discs, gears, or customized parts can be directly mounted on the flange-faced coupling with high precision.

View more product “Safety Couplings KBK EPK“

FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT:
SALES DEPARTMENT
HOTLINE: +84906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN

3. Applications of the Safety Couplings KBK EPP:

Safety Couplings KBK EPP is widely used in light, medium, and heavy industrial manufacturing plants and production lines, including the wood industry, cement production, industrial steel manufacturing, shipyard industry, food processing, steel coil production, and more. Its primary function is to protect against sudden power outages or overload incidents. It is particularly used for mounting chain discs, pulleys, and more.

View more product “Safety Couplings KBK EPI“

4. Technical of the Safety Couplings KBK EPP:

Catalogue KBK EPP Overload Coupling				Installation KBK EPP Overload Coupling

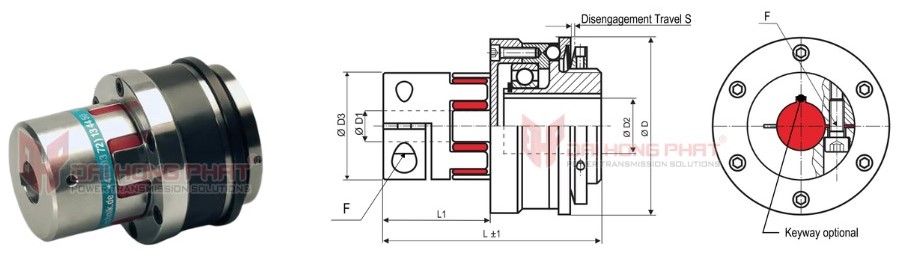

*Technical drawing of the Safety Couplings KBK EPP*

Size	Dimensions (mm)							Technical Data
	ØD	L	Ø D1	Ø D2	Ø D3	F	L1	max. speed	Mass	Torque 98 Sh TKN	Torque Range
	Outer Ø	Length	Bore Size (H7) min~max	Bore Size (H7) min~max		Screw (ISO4762) TA (Nm)		(1/min)	(kg)	(Nm)	1 TKN (Nm)	2 TKN (Nm)
-14	49	55	4-16	6-12	30	M3	24	11690	0.21	12.5	3 – 7	5 – 10
						1.4
-19	64	81	10-22	10-16	40	M6/11	41	8950	0.65	17	5 – 15	10 – 30
		73				M6/11	33
-24	79	98.5	15-32	15-24	55	M6/11	50	7630	1.24	60	12 – 35	20 – 60
		88.5				M6/11	40
-28	94	121	19-38	19-29	65	M6/11	59	6030	2.1	160	50 – 130	65 – 150
		107				M8/25	45
-38	119	134	20-45	20-42	80	M8/25	67	4980	3.8	325	60 – 200	150 – 300
		120				M10/49	53
-42	129	157	28-45	20-50	95	M10	76	4440	5.9	450	80 – 250	200 – 500
						70	76

5. Why choose Dai Hong Phat Corp. as your supplier for KBK Overload Couplings?

– Our customers will have the opportunity to purchase genuine KBK shaft couplings imported directly from KBK Germany.
– Dai Hong Phat will safeguard you against risks by providing genuine KBK Safety Coupling products and protecting you from counterfeit items.
– We ensure that all necessary CO/CQ documentation for Safety Couplings KBK EPP products will be provided to our customers.
– With a readily available stock of KBK EPP Coupling, Dai Hong Phat guarantees swift delivery to our customers.
– Technical drawings of the shaft couplings will be provided upon request to our customers.
– We maintain a highly skilled team of technical specialists to assist our customers with any inquiries or concerns they may have.
– Free consultation services are offered to optimize solutions for our customers’ plants with genuine Overload Coupling products from the Ringfeder brand.
– Our customers will receive the official KBK shaft coupling catalogue from Dai Hong Phat.
– We offer complimentary customization of technical specifications and dimensions for KBK EPP Coupling products according to our customers’ requirements.
– Our nationwide 24/7 delivery service ensures minimal downtime for our customers’ machinery.
– Dai Hong Phat boasts a professional workshop for precision machining tailored to our customers’ specific requests.
