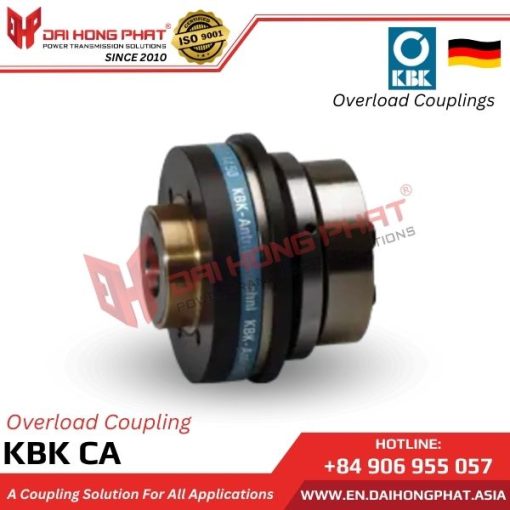

KBK OVERLOAD COUPLINGS CA

Contact for quotation: +84 906 955057

Status: In stock

KBK Overload Couplings CA is a combination of optimized torque moments and the ability to compensate for shaft misalignment. It is self-centering and features very high clamping force, with a torque range of 3 – 500Nm.

Dai Hong Phat Corp Transmission Shaft Couplings is an authorized distributor and genuine provider of KBK Germany in Vietnam.

Category: KBK Overload Couplings Tags: Torque Limiting Couplings, Couplings Dai Hong Phat Corp, Safety Couplings, KBK Vietnam, Overload Couplings

Description

5/5 - (4 votes)

Let’s learn about KBK Overload Couplings CA with Dai Hong Phat through the following article!

1. About Dai Hong Phat – KBK Germany

– Dai Hong Phat is the official authorized representative of KBK Germany in Vietnam. We provide genuine transmission shaft coupling solutions that meet international standards, helping to optimize the performance and durability of machinery systems.
– KBK Antriebstechnik was founded in 2003 in Germany, specializing in the production of precision mechanical transmission solutions. With more than 20 years of development, KBK is famous for its high technical quality and flexible customization. Main products include couplings such as bellows, elastomer, safety, Oldham, magnetic couplings, along with shaft-hub connections and clamping rings serving many mechanical and automation industries.
– The KBK CA Overload Couplings product supplied by Dai Hong Phat is 100% genuine imported, with full CO/CQ, meeting international quality standards.

View more: Other KBK overload shaft coupling lines

2. Characteristics of KBK Overload Couplings CA

– Manufacturer brand: KBK/Germany.
– Self-centering with very high clamping force.
– KBK CA for mounting sprockets, pulleys.
– Torque range: 3 – 500Nm.
– Operating environment: -30°C to +120°C.
– Rotational speed: 4500 to 12000 revolutions per minute.
– The overload safety coupling is a combination of optimized torque moments and the ability to compensate for shaft misalignment. Sprockets, pulleys, gears, or custom parts can be directly mounted on the flange face of the coupling with high precision.

View more product: Safety Couplings KBK LP

FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT:
SALES DEPARTMENT
HOTLINE: +84906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN

3. Applications of KBK Overload Couplings CA

Overload Shaft Couplings KBK CA is widely used in light, medium, and heavy industrial manufacturing plants and production lines, including the wood industry, cement production, industrial steel manufacturing, shipyard industry, food processing, steel coil production, and more. Its primary function is to protect against sudden power outages or overload incidents. It is particularly used for mounting chain discs, pulleys, and more.

4. Technical specifications of the Safety Couplings KBK CA

Catalogue KBK CA Overload Couplings				Installation KBK CA Overload Couplings

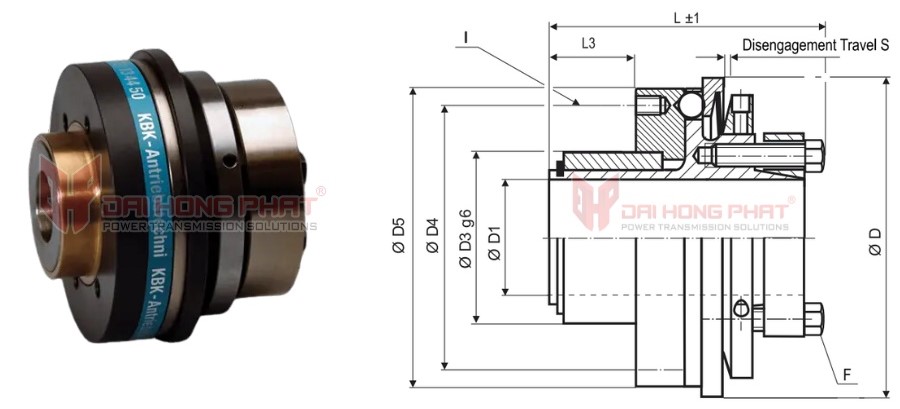

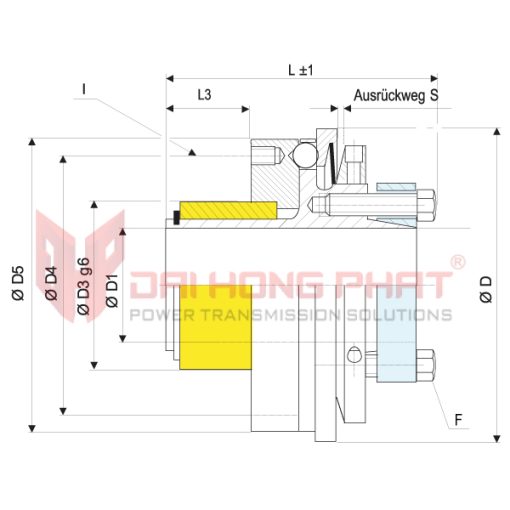

technical-drawing-of-overload-couplings-ca — *Technical drawing of the Safety Couplings KBK CA*

Size	Dimensions (mm)									Technical Data
	ØD	Ø D1	Ø D3	Ø D4	Ø D5	L	L3	I	F	Torque Range		max. speed (1/min)	Mass (kg)
	Outer Ø	Bore Size (H7) min~max				Length		6x	Screw ISO4017 TA (Nm)	1 TKN (Nm)	2 TKN (Nm)
-10	49	5-14	24	30	47	46	8	M3	M3	3-7	5-10	12000	0.18
		8#							2.1
-30	64	12-20	30	46	60	54	9	M4	M5	5-15	10-30	9400	0.53
		14#							5.9
-60	79	15-25	36	50	75	69	16	M5	M5	13-35	20-65	7800	1
		18#							8.7
-80	94	20-35	48	65	90	80	22	M6	M6	15-40	30-80	6400	1.8
		27#							15
–150	94	20-35	48	65	90	80	22	M6	M6	50-130	65-150	6400	1.8
		27#							15
-200	109	20-40	52	70	105	85	25	M6	M6	30-90	80-200	5500	2
		32#							15
-300	119	25-46	58	76	115	101	31	M8	M8	60-200	150-300	5000	3.2
		38#							25
-500	129	35-50	66	110	125	126	33	M8	M8	80-250	200-500	4500	4.7
		41#							36
