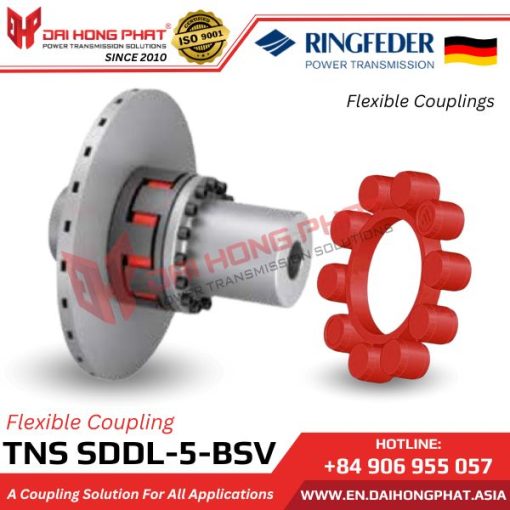

Let’s learn about Ringfeder Flexible Couplings TNS SDDL-5-BSV with Dai Hong Phat, through the following article!
1. About Dai Hong Phat Corp – Ringfeder Germany
– Dai Hong Phat Corp is the official authorized representative of Ringfeder Germany in Vietnam (Ringfeder Vietnam), Laos, Cambodia, Philippines and Bangladesh. We provide genuine transmission shaft coupling solutions that meet international standards, helping to optimize the performance and durability of machinery systems.
– Ringfeder Germany – the world’s leading brand in transmission and shock absorber solutions, with over 100 years of history of creation and innovation. Founded in 1922, with the first product “friction springs“, Ringfeder has become a global symbol of prestige for quality and reliability.
– Ringfeder Flexible Couplings TNS SDDL-5-BSV products supplied by Dai Hong Phat are 100% genuine imported, with full CO/CQ, meeting international quality standards.
Certificate of Dai Hong Phat Corp is an authorized representative of Ringfeder Germany in Vietnam
2. Characteristics of Ringfeder Flexible Couplings TNS SDDL-5-BSV:
– Manufacturer: Ringfeder/Germany
– Torsional flexibility, compensation for angle, radial and axial
– Elastic quality available in many different hardness levels
– Suitable for temperatures from – 30 ° C to + 100 ° C
– Connection outer diameter up to 400 mm, brake disc outer diameter up to 1000 mm.
– Bore up to max. 160 mm
– Torque up to T Kn = 13,350 Nm / T Kmax = 40,000 Nm
– Speed up to n max = 7,250 rpm
– This coupling with washers dampens shocks, vibrations and is oil-resistant. The washers are made of conductive Pb. The two-part construction of the two coupling halves allows radial mounting and dismounting of the central part. The coupling is suitable for use in all rotation directions and mounting positions.
– The Ringfeder TNS SDDL-5-BSV allows angular, radial and axial misalignments within the limit definitions. The coupling transmits the torque via washers, pressure-resistant in synthetic rubber (Pb) or polyurethane (VkR) and connected together to form a seal.
See more: Specifications of Ringfeder Elastomer Rings TNS (TsChan S)
| FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT: SALES DEPARTMENT HOTLINE: (+84) 0906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN |
3. Application of Ringfeder TNS Flexible Couplings SDDL-5-BSV in operations:
This versatile quality Ringfeder TNS SDDL-5-BSV coupling is optimally used, for example, as drive components in a wide range of construction machinery as well as in steel, mining and cement plant technology, as well as connecting components in overhead cranes, containers and foundries.

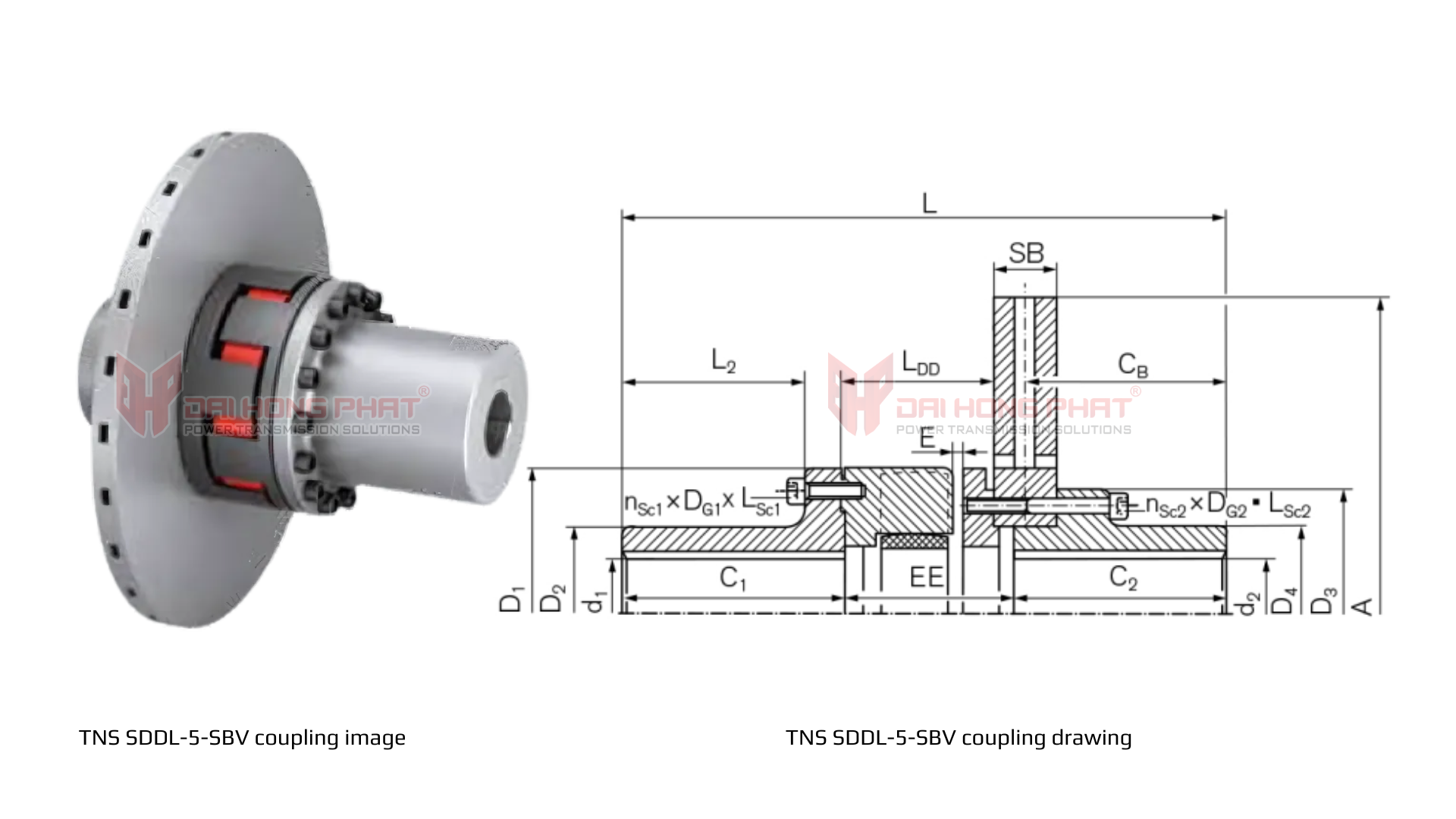

4. Technical specifications of Ringfeder shaft coupling TNS SDDL-5-BSV:
| Catalogue Ringfeder TNS SDDL-5-BSV Coupling |
Installation instructions Ringfeder TNS SDDL-5-BSV Coupling |
||||||
 |
|
Thông số kỹ thuật khớp nối TNS SDDL-5-BSV:
| Couplings Model |
Identifier | TKN [Nm] |
nmax [1/min] |
Dimensions [mm] | Gwub [kg] |
|||
| d1kMax | d2kMax | D1 | L | |||||
| SDDL-5-BSV 125 | WS5212-0315V30 | 250 | 300 | 55 | 55 | 126 | 286,5 | 24 |
| SDDL-5-BSV 145 | WS5214-0315V30 | 400 | 3000 | 65 | 55 | 145 | 298 | 27.6 |
| SDDL-5-BSV 145 | WS5214-0355V30 | 400 | 2700 | 65 | 65 | 145 | 32 | |
| SDDL-5-BSV 170 | WS5217-0400V30 | 630 | 2400 | 75 | 75 | 170 | 331,5 | 44.6 |
| SDDL-5-BSV 170 | WS5217-0450V30 | 630 | 2100 | 75 | 75 | 170 | 354,5 | 51.5 |
| SDDL-5-BSV 230 | WS5223-0500V30 | 1700 | 1800 | 110 | 105 | 230 | 412,5 | 93 |
| SDDL-5-BSV 230 | WS5223-0550V30 | 1700 | 1800 | 110 | 105 | 230 | 99 | |
| SDDL-5-BSV 260 | WS5226-0550V30 | 2650 | 1800 | 125 | 105 | 260 | 469 | 121.5 |
| SDDL-5-BSV 260 | WS5226-0630V30 | 2650 | 1500 | 125 | 105 | 260 | 135.8 | |
| SDDL-5-BSV 260 | WS5226-0710V30 | 2650 | 1300 | 125 | 125 | 260 | 158.8 | |
| SDDL-5-BSV 300 | WS5230-0630V42 | 3900 | 1400 | 140 | 150 | 300 | 492 | 185.8 |
| SDDL-5-BSV 300 | WS5230-0710V30 | 3900 | 1300 | 140 | 125 | 300 | 480 | 181 |
| SDDL-5-BSV 300 | WS5230-0800V30 | 3900 | 1200 | 140 | 150 | 300 | 210.9 | |
| SDDL-5-BSV 360 | WS5236-0630V42 | 6500 | 1400 | 160 | 150 | 360 | 540,5 | 231.6 |
| SDDL-5-BSV 360 | WS5236-0800V30 | 6500 | 1200 | 160 | 150 | 360 | 528,5 | 256.7 |
| SDDL-5-BSV 400 | WS5240-0800V42 | 8900 | 1000 | 160 | 185 | 400 | 588,5 | 327 |
| SDDL-5-BSV 400 | WS5240-1000V42 | 8900 | 900 | 160 | 185 | 400 | 427 | |
