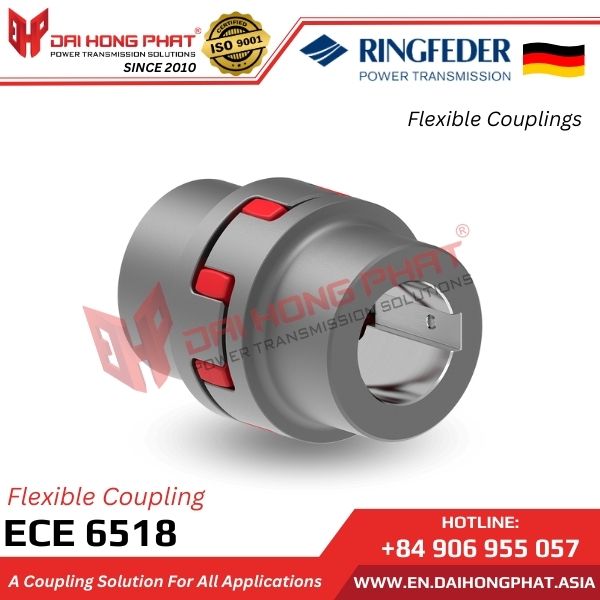

RINGFEDER FLEXIBLE COUPLINGS ECE 6518

Contact for quotation: +84 906 955057

Status: In stock

Ringfeder Flexible Couplings ECE 6518 with two cast iron hubs and a polyurethane elastomer seal is available in three different Shore hardness levels. The ECE 6518 is maintenance-free, easy to install, and electrically insulated, making it suitable for use in servo drive systems, hydraulic systems, pumps, and general mechanical engineering.

Dai Hong Phat Corp Transmission Shaft Couplings is an authorized distributor and genuine provider of Ringfeder Germany in Vietnam, Laos, Cambodia, Philippines and Bangladesh.

Category: Ringfeder Flexible Couplings Tags: Ringfeder Couplings, Ringfeder Flexible Couplings, Couplings Dai Hong Phat Corp, Flexible Shaft Couplings, Ringfeder Vietnam, ECE 6518

Description

5/5 - (5 votes)

Let’s learn about Ringfeder Flexible Couplings ECE 6518 with Dai Hong Phat, through the following article!

1. About Dai Hong Phat Corp – Ringfeder Germany

– Dai Hong Phat Corp is the official authorized representative of Ringfeder Germany in Vietnam (Ringfeder Vietnam), Laos, Cambodia, Philippines and Bangladesh. We provide genuine transmission shaft coupling solutions that meet international standards, helping to optimize the performance and durability of machinery systems.
– Ringfeder Germany – the world’s leading brand in transmission and shock absorber solutions, with over 100 years of history of creation and innovation. Founded in 1922, with the first product “friction springs“, Ringfeder has become a global symbol of prestige for quality and reliability.
– Ringfeder Flexible Couplings ECE 6518 products supplied by Dai Hong Phat are 100% genuine imported, with full CO/CQ, meeting international quality standards.

An authorized distributor for Ringfeder product in Vietnam Certificate of Dai Hong Phat Corp is an authorized representative of Ringfeder Germany in Vietnam

View more: Other types of Ringfeder flexible shaft couplings

2. Characteristics of Ringfeder Flexible Couplings ECE 6518

– Manufacturer brand: Ringfeder/Germany.
– ECE 6518 is made of cast iron, with polyurethane seals available in three different Shore hardness ratings: 64 ShD, 92 ShA, and 94 ShA.
+ Sizes 38-55: Yellow seal, 92 ShA
+ Sizes 65-90: Red seal, 98 ShA
– Torque (TKN): 190 – 4,500 Nm
– Maximum rotational speed (nmax): 3,300 – 8,300 rpm
– Overall length (L): 114 – 295 mm
– Outer diameter (D): 80 – 200 mm

View product: Ringfeder Flexible Couplings ECE 6418

FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT:
SALES DEPARTMENT
HOTLINE: (+84) 0906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN

3. Applications of Ringfeder Flexible Couplings ECE 6518

The ECE 6518 cast iron shaft coupling is maintenance-free, easy to install, and electrically insulated, making it suitable for use in servo drive systems, hydraulic systems, pumps, and general mechanical engineering.

View article: What is a flexible shaft coupling? Common types of flexible shaft couplings

View article: Comparison of 5 Common Types of Shaft Couplings in Mechanical Industry

4. Technical specifications of Shaft Couplings ECE 6518

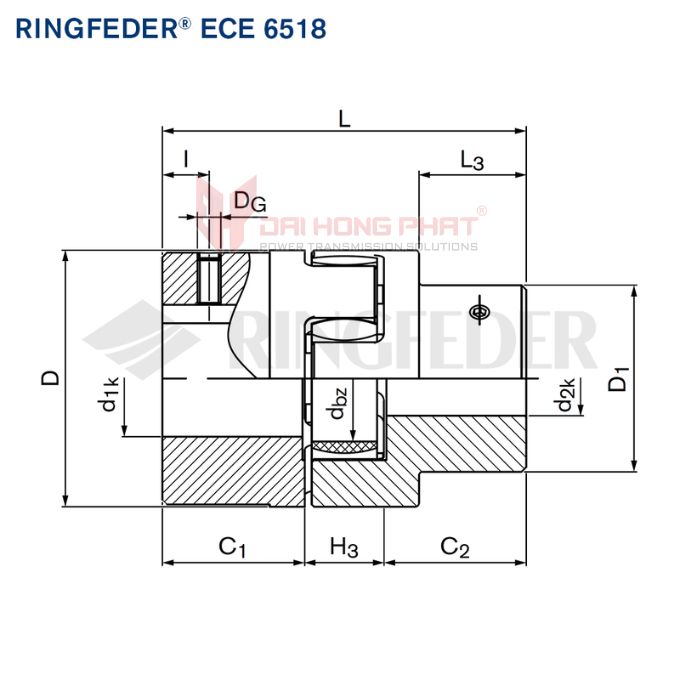

Catalogue Ringfeder ECE 6518 Coupling				Installation Ringfeder ECE 6518 Coupling

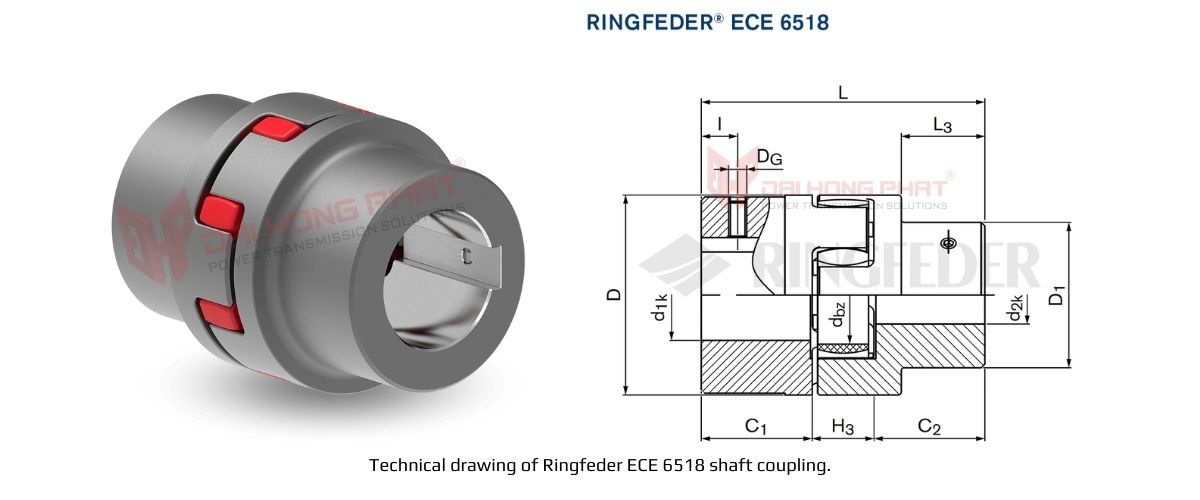

technical-drawing-of-flexible-couplings-ece-6518

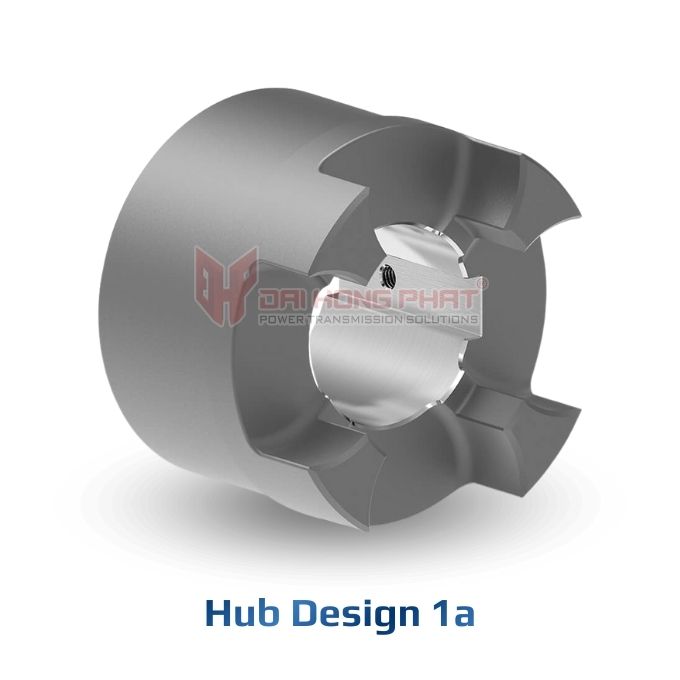

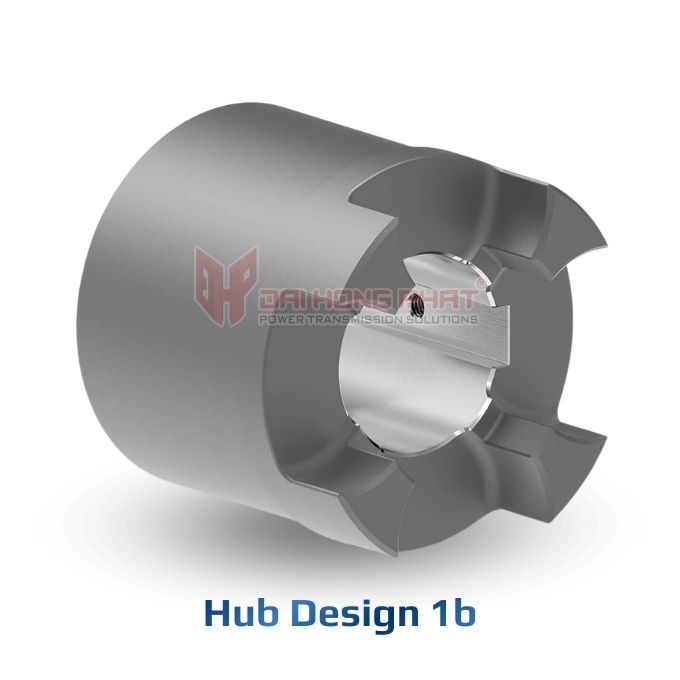

Couplings Size	Hub Design	T_KN [Nm]	Dimenssions [mm]				Gw [kg]
Couplings Size	Hub Design	T_KN [Nm]	d_kmin-d_kmax	D	D1	L	Gw [kg]
ECE 6518 – 38	1	190	12 – 40	80	66	114	2
	1a	190	12 – 48	80	78	114	2.4
	1b	190	12 – 48	80	78	164	3.6
ECE 6518 – 42	1	265	14 – 55	95	75	126	3.2
	1a	265	14 – 55	95	94	126	3.8
	1b	265	14 – 55	95	94	176	5.5
ECE 6518 – 48	1	310	15 – 52	105	85	140	4.96
	1a	310	15 – 62	105	104	140	5.45
	1b	310	15 – 62	105	104	188	7.51
ECE 6518 – 55	1	410	20 – 60	120	98	160	6.6
	1a	410	20 – 74	120	118	160	7.5
	1b	410	20 – 74	120	118	210	10.2
ECE 6518 – 65	1	940	22 – 70	135	115	185	10.1
	1a	940	22 – 80	135	133	185	11.5
	1b	940	22 – 80	135	133	235	15
ECE 6518 – 75	1	1920	30 – 80	160	135	210	16
	1a	1920	30 – 95	160	158	210	18.2
	1b	1920	30 – 95	160	158	260	21.2
ECE 6518 – 90	1	3550	40 – 97	200	160	245	27.5
	1a	3550	40 – 110	200	198	245	36.3
	1b	3550	40 – 110	200	198	295	44.8
