Let’s learn about Ringfeder Flexible Couplings TNR 2425.1 with Dai Hong Phat, through the following article!
1. About Dai Hong Phat Corp – Ringfeder Germany
– Dai Hong Phat Corp is the official authorized representative of Ringfeder Germany in Vietnam (Ringfeder Vietnam), Laos, Cambodia, Philippines and Bangladesh. We provide genuine transmission shaft coupling solutions that meet international standards, helping to optimize the performance and durability of machinery systems.
– Ringfeder Germany – the world’s leading brand in transmission and shock absorber solutions, with over 100 years of history of creation and innovation. Founded in 1922, with the first product “friction springs“, Ringfeder has become a global symbol of prestige for quality and reliability.
– Ringfeder Flexible Couplings TNR 2425.1 products supplied by Dai Hong Phat are 100% genuine imported, with full CO/CQ, meeting international quality standards.
Certificate of Dai Hong Phat Corp is an authorized representative of Ringfeder Germany in Vietnam
2. Technical of Flexible Couplings TNR 2425.1:

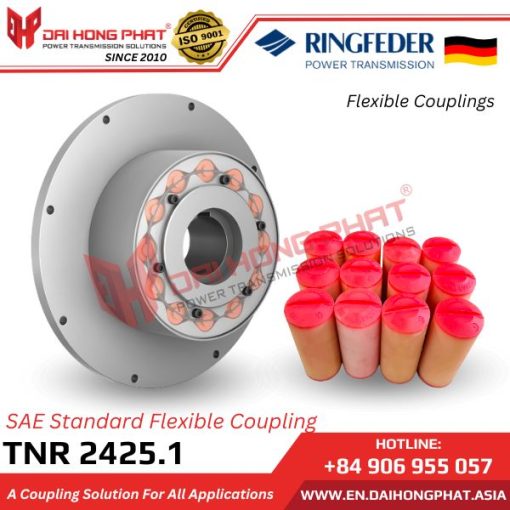

– Torsional Highflex Couplings TNR 2425.1 are manufactured by Ringfeder/Germany.
– Torsional Flexibility: High resilience for efficient power transmission.
– Torque [Nm]: 144 to 9600.
– Speed [rpm]: 1200 to 4750.
– Temperature Range: -50°C to +230°C.
– The shaft coupling allows flexible adjustment of the stiffness of the round rubber. piece, ensuring smoother startup and optimizing vibration of the entire drive system. The stiffness of the coupling and the shock-absorbing rubber are suitable for corresponding drive conditions.
– The Ringfeder TNR 2425.1 is specially designed for use with internal combustion engines, allowing movement in all directions to compensate for shaft misalignment, including axial, radial, and angular misalignment.
Reference: Ringfeder Elastomer Rings TNR Specifications
| FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT: SALES DEPARTMENT HOTLINE: +84906 955 057 – EMAIL: INFO@DHP-CORP.COM.VNb |
3. Application of Ringfeder Flexible Couplings TNR 2425.1:
The Ringfeder Torsional Highflex Couplings TNR 2425.1 is specially designed and optimized for use primarily in internal combustion engines. It is installed between the engine and the transmission gearbox or coupling module for construction machinery such as excavators, cranes, crushers, or wheel loaders.
4. Technical of Torsional Highflex Couplings TNR 2425.1:

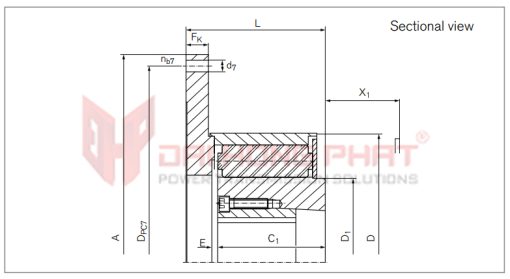

| Catalogue Ringfeder TNR 2425.1 |
Installation Ringfeder TNR 2425.1 |
||||||
 |
|
Technical specifications of Ringfeder TNR 2425.1 coupling:
| Couplings Model |
Taper bushing | SAE size | Dimensions [mm] | Gwub [kg] |
||||
| A | L | DPC7 | D | D1 | ||||
| 120.1 – 06.5 | 1615 | 6.5 | 215.9 | 71 | 200 | 120 | 73 | 2.8 |
| 120.1 – 07.5 | 1615 | 7.5 | 241.3 | 71 | 222.3 | 120 | 73 | 3.1 |
| 120.1 – 08.0 | 1615 | 8 | 263.5 | 71 | 244.5 | 120 | 73 | 3.4 |
| 120.1 – 10.0 | 1615 | 10 | 314.3 | 71 | 295.3 | 120 | 73 | 4.1 |
| 160.1 – 06.5 | 2012 | 6.5 | 215.9 | 84 | 200 | 160 | 100 | 5.3 |
| 160.1 – 07.5 | 2012 | 7.5 | 241.3 | 84 | 222.3 | 160 | 100 | 5.6 |
| 160.1 – 08.0 | 2012 | 8 | 263.5 | 84 | 244.5 | 160 | 100 | 5.9 |
| 160.1 – 10.0 | 2012 | 10 | 314.3 | 84 | 295.3 | 160 | 100 | 6.8 |
| 200.1 – 07.5 | 2517 | 7.5 | 222.3 | 104 | 213.3 | 200 | 129 | 10.2 |
| 200.1 – 08.0 | 2517 | 8 | 263.5 | 104 | 244.5 | 200 | 129 | 10.6 |
| 200.1 – 10.0 | 2517 | 10 | 314.3 | 104 | 295.3 | 200 | 129 | 11.6 |
| 200.1 – 11.5 | 2517 | 11.5 | 352.4 | 104 | 333.7 | 200 | 129 | 12.6 |
| 260.1 – 10.0 | 3535 | 10 | 314.3 | 132 | 438.2 | 260 | 165 | 20.3 |
| 260.1 – 11.5 | 3535 | 11.5 | 352.4 | 132 | 489 | 260 | 165 | 21.5 |
| 260.1 – 14.0 | 3535 | 14 | 466.7 | 132 | 438.2 | 260 | 165 | 25.6 |
| 260.1 – 16.0 | 3535 | 16 | 517.5 | 132 | 489 | 260 | 165 | 28 |
| 320.1 – 14.0 | 4040 | 14 | 466.7 | 162 | 542.9 | 320 | 208 | 44.6 |
| 320.1 – 16.0 | 4040 | 16 | 517.5 | 162 | 489 | 320 | 208 | 47.2 |
| 320.1 – 18.0 | 4040 | 18 | 571.5 | 162 | 542.9 | 320 | 208 | 50.3 |
| 400.1 – 16.0 | 5050 | 16 | 517.5 | 197 | 489 | 400 | 268 | 83.9 |
| 400.1 – 18.0 | 5050 | 18 | 571.5 | 197 | 542.9 | 400 | 268 | 87.6 |
| 400.1 – 21.0 | 5050 | 21 | 673.1 | 197 | 641.4 | 400 | 268 | 95.2 |
| 400.1 – 24.0 | 5050 | 24 | 733.4 | 197 | 692.2 | 400 | 268 | 99.7 |
