RINGFEDER FLEXIBLE COUPLINGS TNM E

The Ringfeder Flexible Couplings TNM E are a coupling designed to resist puncture and torsional elasticity. It features a symmetrical design with two equal parts. It balances deviations in angle, radial, and axial directions within defined limits. The coupling can be used at any rotational angle and mounting position.

Dai Hong Phat Shaft Coupling is the authorized representative and genuine distributor of Ringfeder Germany in Vietnam, Laos, Cambodia, Philippines and Bangladesh.

Description

5/5 - (4 votes)

Let’s learn about Ringfeder Flexible Couplings TNM E with Dai Hong Phat, through the following article!

1. About Dai Hong Phat Corp – Ringfeder Germany

– Dai Hong Phat Corp is the official authorized representative of Ringfeder Germany in Vietnam (Ringfeder Vietnam), Laos, Cambodia, Philippines and Bangladesh. We provide genuine transmission shaft coupling solutions that meet international standards, helping to optimize the performance and durability of machinery systems.
– Ringfeder Germany – the world’s leading brand in transmission and shock absorber solutions, with over 100 years of history of creation and innovation. Founded in 1922, with the first product “friction springs“, Ringfeder has become a global symbol of prestige for quality and reliability.
– Ringfeder Flexible Couplings TNM E products supplied by Dai Hong Phat are 100% genuine imported, with full CO/CQ, meeting international quality standards.

An authorized distributor for Ringfeder product in Vietnam Certificate of Dai Hong Phat Corp is an authorized representative of Ringfeder Germany in Vietnam

See more: Other types of Ringfeder flexible shaft couplings

2. Characteristics of Flexible Couplings TNM E:

– Flexible Couplings TNM E is manufactured by Ringfeder/Germany.
– It is designed with 2 hubs and shock-absorbing buffers, available in 18 different sizes.
– Torque range [Nm]: T_{KN Pb72}: 13 – 27000Nm; T_{KN Pb82}: 20-41000Nm.
– The speed range is from 1800 to 5000 rpm, and the temperature range is from -30°C to +100°C.
– The shaft bore sizes d1 and d2 range from 19 to 230mm.
– The design features two identical parts.
– The shock-absorbing rubber buffers come in different hardness levels: standard Pb72 and high hardness Pb82.

See article: What is a flexible shaft coupling? Common types of flexible shaft couplings
Reference: Ringfeder Rubber Elements TNM Nor-mex Specifications

FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT:
SALES DEPARTMENT
HOTLINE: (+84) 0906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN

3. Applications of Elastomer Jaw Couplings TNM E:

Elastomer Jaw Couplings TNM Eprovides flexibility during rotation, safety in case of failure, and allows for compensation of shaft misalignment. Torque is transmitted through resilient materials linked together to form a damping and vibration-reducing ring capable of withstanding forces and conducting electricity.

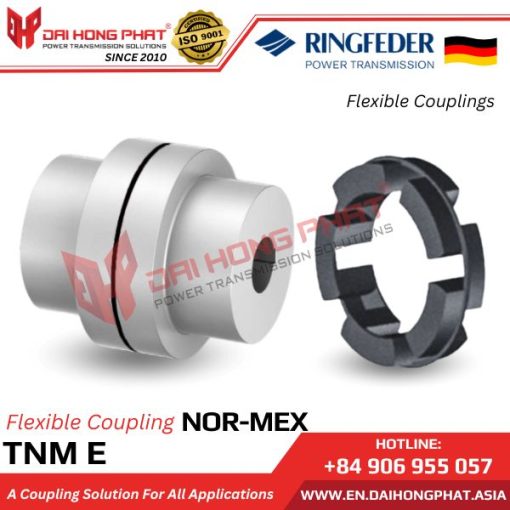

*Ringfeder TNM E Coupling at Dai Hong Phat*

4. Technical and special features of Elastomer Jaw Couplings TNM E:

Elastomer Jaw Couplings TNM E are designed with two identical parts, providing resistance against puncture and torsional elasticity. It balances deviations in angle, concentricity, and axial alignment within defined limits. The coupling can be used at any rotational angle and installation position.

Technical of Ringfeder TNM Nor-Mex E Coupling:

Catalogue Ringfeder TNM E Coupling				Installation Ringfeder TNM E Coupling

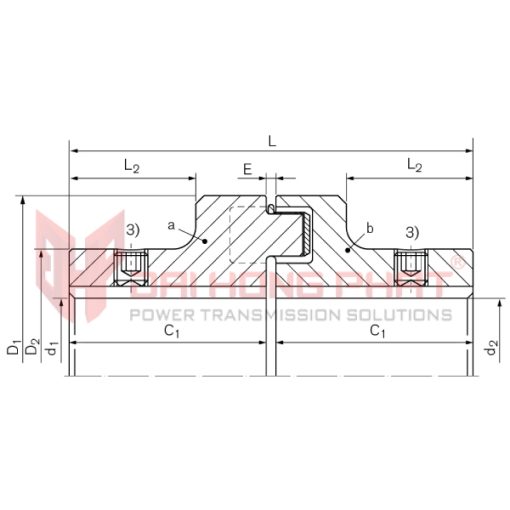

*Technical drawing of Elastomer Jaw Couplings TNM E*

Ringfeder TNM E coupling specifications:

Model	Identifier	Pb72	Pb82	n_max	Dimensions [mm]					Gw_ub [kg]
Model	Identifier	Nm	Nm	1/min	d_1Kmax	d_2kmax	D1	D2	L	Gw_ub [kg]
TNM E 50	WN0105	13	20	5000	19	19	50	33	52	0.4
TNM E 67	WN0106	22	35	5000	28	28	67	46	62.5	1
TNM E 82	WN0108	48	75	5000	32	32	82	53	83	1.8
TNM E 97	WN0109	96	150	5000	42	42	97	69	103	3.4
TNM E 112	WN0111	150	230	5000	48	48	112	79	123.5	5.3
TNM E 128	WN0112	250	380	5000	55	55	128	90	143.5	8.2
TNM E 148	WN0114	390	600	4500	65	65	148	107	163.5	12.7
TNM E 168	WN0116	630	980	4000	75	75	168	124	183.5	19.3
TNM E 194	WN0119	1050	1650	3500	85	85	194	140	203.5	27.9
TNM E 214	WN0121	1500	2400	3000	95	95	214	157	224	38.2
TNM E 240	WN0124	2400	3700	2750	110	110	240	179	244	53.4
TNM E 265	WN0126	3700	5800	2500	120	120	265	198	285.5	75
TNM E 295	WN0129	4900	7550	2250	130	130	295	214	308	95.7
TNM E 330	WN0133	6400	9900	2000	150	150	330	248	328	132.9
TNME 370	WN0137	8900	14000	1750	170	170	370	278	368	187.7
TNM E 415	WN0141	13200	20500	1500	190	190	415	315	408	259.3
TNM E 480	WN0148	18000	28000	2100	210	210	480	315	448	328.7
TNM E 575	WN0157	27000	41000	1800	230	230	575	350	488	467
