Let’s learn about Ringfeder Steel Disc Couplings TND HSH with Dai Hong Phat, through the following article!
1. About Dai Hong Phat Corp – Ringfeder Germany
– Dai Hong Phat Corp is the official authorized representative of Ringfeder Germany in Vietnam (Ringfeder Vietnam), Laos, Cambodia, Philippines and Bangladesh. We provide genuine transmission shaft coupling solutions that meet international standards, helping to optimize the performance and durability of machinery systems.
– Ringfeder Germany – the world’s leading brand in transmission and shock absorber solutions, with over 100 years of history of creation and innovation. Founded in 1922, with the first product “friction springs“, Ringfeder has become a global symbol of prestige for quality and reliability.
– Ringfeder Steel Disc Couplings TND HSH products supplied by Dai Hong Phat are 100% genuine imported, with full CO/CQ, meeting international quality standards.
Certificate of Dai Hong Phat Corp is an authorized representative of Ringfeder Germany in Vietnam
See also: Other types of Ringfeder elastic disc shaft couplings
2. Characteristics of the Steel Disc Couplings TND HSH:
2.1. Specifications
– The Steel Disc Couplings TND HSH are manufactured by Ringfeder/Germany.
– The coupling is available in 11 sizes.
– Max. Bore Diameter d: 32-215 mm.
– Max. Outer Diameter D1: 70.5-510 mm.
– Hub Distance E: 7.5-47 mm.
– Overall Length L: 86.5-527 mm.
– Rot. Speed nmax: 1,700-12,200 1/min.
– Torque TKN: 170-130,000 Nm.
2.2. Outstanding advantages
– Completely backlash-free and maintenance-free
– Highly effective in compensating angular and axial misalignment
– High torsional stiffness
– Low restoring forces in case of shaft misalignment due to optimized disc pack design
– Quick and easy setup of double-cardanic with two couplings and one spacer
– The Ringfeder TND HSH is a rigid steel disc coupling, free from violent reactions, consisting of two standard H shafts and S disc packs alternately connected to shafts by high-strength bolts.
View more product “Steel Disc Couplings TND HDV“
| FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT: SALES DEPARTMENT HOTLINE: +84906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN |

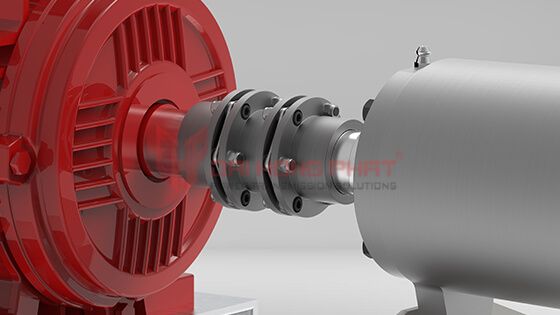

3. Applications of the Ringfeder Steel Disc Couplings TND HSH:
TND XDX Couplings are widely used in industry:
– Industrial pumps, fans
– Air compressors, generators, turbine drives
– Axial fans & centrifugal fans
– Paper making machines & industrial printers
– Mixers, agitators, plastic – food extruders
– Lifting equipment & moving transmissions
– Ship drives & water screw systems
4. Technical drawing of the Steel Disc Couplings TND HSH:
| Catalogue Ringfeder TND HSH |
Installation Ringfeder TND HSH |
||||||
 |
|
| Coupling Model |
TKN HD | TKN HT | nmax | Dimensions [mm] | Gw | ||||
| Nm | Nm | 1/min | d1k;d2k max | C1 / C2 | D1 | L2 | L | [kg] | |
| HSH 47 | 170 | 230 | 12200 | 32 | 39.5 | 70.5 | 5 | 86.5 | 1.3 |
| HSH 63 | 320 | 420 | 9900 | 42 | 45 | 88 | 8 | 99 | 2.6 |
| HSH 82 | 750 | 1050 | 7500 | 55 | 55 | 116 | 10 | 120.5 | 5.6 |
| HSH 98 | 1350 | 1750 | 6200 | 65 | 60 | 140.5 | 11 | 132 | 8.8 |
| HSH 118 | 2400 | 3000 | 5250 | 85 | 75 | 166.5 | 12 | 163 | 15.4 |
| HSH 141 | 4000 | 5200 | 4400 | 95 | 90 | 198.5 | 14 | 195 | 25.9 |
| HSH 169 | 6500 | 8500 | 3650 | 115 | 125 | 238 | 16 | 271 | 50 |
| HSH 205 | 21000 | 26000 | 2950 | 140 | 160 | 295 | 22 | 348 | 97.8 |
| HSH 254 | 36000 | 44000 | 2500 | 175 | 200 | 345 | 26 | 432.5 | 171.2 |
| HSH 262 | 74000 | — | 2050 | 180 | 210 | 420 | 32 | 454 | 223.2 |
| HSH 316 | 130000 | — | 1700 | 215 | 240 | 510 | 38 | 527 | 384.4 |
