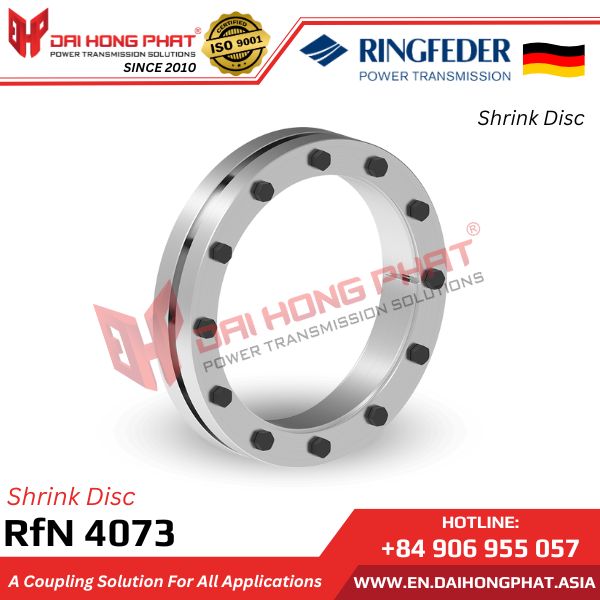

RfN 4073 SHRINK DISC

Ringfeder Shrink Disc RfN 4073 features a specially lightweight structure and a compact design with low torque values. They are ideal for applications requiring sealing of air and small gearboxes. These Shrink Discs are particularly suitable for applications with minimal or no dynamic loads, where the demand for torque transmission values is low.

Category: Ringfeder Shrink Discs Tags: Shrink Discs RfN 4073, Shrink disc, Shaft lock, Shaft clamping element, Authorized Distributor for Ringfeder Products in Cambodia, Authorized Distributor for Ringfeder Products in Philippines, Authorized Distributor for Ringfeder Products in Laos, Authorized Distributor for Ringfeder Products in Vietnam, Ringfeder distributors, RINGFEDER RFN 4073, Ringfeder Germany, Dai Hong Phat

Description

5/5 - (1 vote)

1. Why choose Dai Hong Phat Corp. as your supplier for Shrink Disc Ringfeder?

– Purchase genuine RfN 4073 Shrink Disc directly from Ringfeder Germany.
– Dai Hong Phat ensures genuine products and protection against counterfeits.
– CO/CQ documentation provided for all Shrink Disc Ringfeder products.
– Swift delivery with available stock of Ringfeder RfN 4073.
– Technical drawings of shaft couplings available upon request.
– Skilled technical specialists to assist with any inquiries.
– Free consultation services to optimize solutions with genuine Ringfeder products.
– Official Ringfeder shaft coupling catalog provided.
– Complimentary customization of technical specifications for Shrink Disc Ringfeder products.
– Nationwide 24/7 delivery service for minimal machinery downtime.
– Professional workshop for precision machining tailored to requests.

2. Dai Hong Phat Corp. is the specialized representative for supplying all Shrink Disc Ringfeder in Vietnam:

– Dai Hong Phat Corp. is the exclusive importer and distributor of all 100% genuine Ringfeder products throughout Vietnam and the Southeast Asia region. (Authorized Distributor for Ringfeder Products in Vietnam, Laos, Cambodia, Philippines, …).
– With over 15 years of reputable service, Dai Hong Phat ensures customers acquire Shrink Disc RfN 4073 that are 100% authentic, high-quality, and competitively priced in the market.

3. Technical of Shrink Disc Ringfeder RfN 4073:

– The Shrink Discs RfN 4073 is manufactured by Ringfeder/Germany and features the following specifications:
– Inner diameter (d): 14-160 mm.
– Outer diameter (D): 34-204 mm.
– Total length (L): 14-36 mm.
– Maximum torque (T): 9-7,260 Nm.
The Ringfeder RfN 4073 is designed to be compact with low torque values, making it suitable for applications requiring sealing air and small gearboxes. It is placed around the hollow shaft to provide concentric connection and suitable balance for high-speed applications.
The Ringfeder RfN 4073 is capable of preventing the ingress of dust and moisture when the locking screws are tightened. The inner ring features grooves to reduce pressure and force on the shaft’s center. It is easy to disassemble and replace.

View more product “Shrink Disc RfN 4071“

FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT:
SALES DEPARTMENT
HOTLINE: +84906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN

4. Applications of Shrink Disc RfN 4073:

Shrink Discs, such as the Ringfeder Shrink Disc RfN 4073, are primarily used to minimize surface tension in connected parts. The Ringfeder RfN 4073 is commonly employed in scenarios involving very thin hollow shafts or hollow shafts with limited flow due to materials like cast iron or aluminum, such as aluminum conveyor rollers or thin levers.
Ringfeder Shrink Discs find widespread application across various industries, including:
– Manufacturing of tools and medical equipment.
– Food production and processing industry.
– Packaging, including packaging and beverages.
– Chemical industry applications.
– Mining and mineral extraction.
– Construction sector.
– Wood and paper production, and more.

5. Technical of Shrink Disc RfN 4073:

Catalogue Ringfeder RFN 4073				Installation Ringfeder RFN 4073

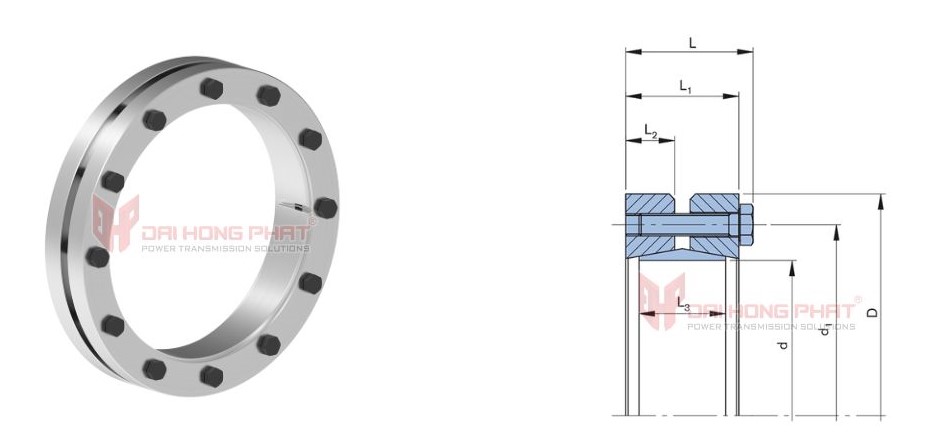

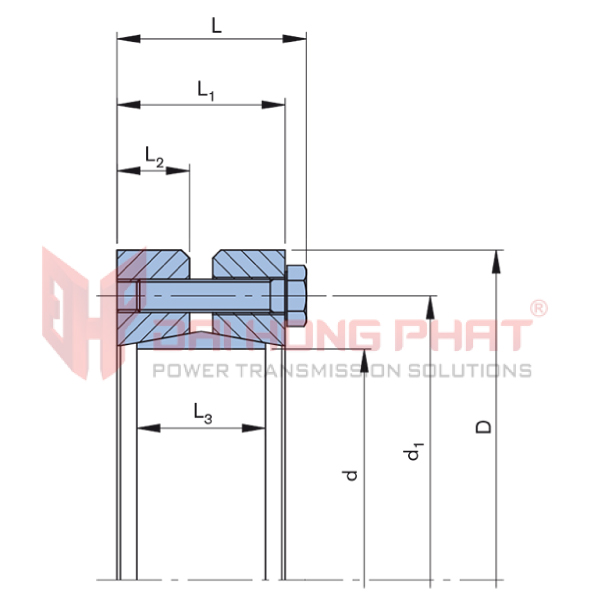

*Technical drawing of Shrink Disc RfN 4073*

Shrink Discs dimensions [mm]				T_A [Nm]	T [Nm]	Gw [kg]	^Tmax [Nm]
d x D	d_w	d₁	L
14 x 34	9	24	14	2.4	9	0.1	18
	10				14		26
	11				20		35
16 x 42	11	30	14.8	2.4	32	0.1	40
	12				41		51
	13				52		64
20 x 47	14	34	17.5	3	41	0.13	51
	15				51		64
	16				62		78
22 x 50	16	37	18.5	3	68	0.16	85
	17				80		100
	18				94		118
24 x 50	18	39	18.5	5	185	0.16	231
	19				205		256
	20				235		293
28 x 56	20	43	18.5	3	77	0.18	96
	22				103		129
	24				132		165
31 x 60	24	46	18.5	3	110	0.2	138
	25				123		154
	27				154		193
36 x 66	28	52	18.5	3	161	0.24	201
	30				194		243
	32				215		269
40 x 68	33	55	18.5	4	265	0.23	331
	34				290		363
	35				320		396
46 x 80	38	63	22.5	4	400	0.44	503
	40				470		589
	42				550		683
51 x 86	42	68.5	22.5	4	440	0.49	550
	44				510		640
	45				550		680
56 x 91	46	73	22.5	4	560	0.52	690
	48				630		790
	50				710		890
61 x 96	52	77	22.5	4	710	0.56	890
	54				810		1010
	56				910		1130
66 x 100	58	82	22.5	4	850	0.57	1070
	60	82			950		1190
	62	82			1060		1320
70 x 110	62	90	27.5	6	1410	0.93	1770
	64				1560		1950
	65				1630		2040
75 x 114	66	93	27.5	6	1480	0.93	1840
	68				1620		2020
	70				1770		2210
80 x 120	71	101	27.5	6	2000	1.04	2500
	73				2160		2700
	75				2330		2920
85 x 128	76	105	32	12	2370	1.41	2960
	78				2560		3200
	80				2760		3450
94 x 140	82	119	32	12	2300	1.66	2870
	85				2600		3250
	88				2920		3660
105 x 150	92	128	32	12	3000	1.77	3750
	95				3330		4160
	98				3680		4600
112 x 158	100	135	32	12	3390	1.91	4240
	104				3850		3570
	106				4100		5120
120 x 164	106	141	36	12	3900	2.2	4870
	110				4400		5500
	112				4670		5830
130 x 172	115	151	36	12	4250	2.21	5320
	120				4890		6110
	122				5100		6380
140 x 182	125	161	36	12	5690	2.4	7110
	128				6140		7670
	130				6450		8060
150 x 194	135	171	36	12	6280	2.7	7840
	138				6730		8420
	140				7050		8810
160 x 204	142	181	36	12	6360	2.8	7940
	145				6800		8500
	148				7260		9070
