Let’s learn about KBK Encoder Couplings KB4F with Dai Hong Phat through the following article!
1. About Dai Hong Phat – KBK Germany
– Dai Hong Phat Corp is the official authorized representative of KBK Germany in Vietnam. We provide genuine transmission shaft coupling solutions that meet international standards, helping to optimize the performance and durability of machinery systems.
– KBK Antriebstechnik was founded in 2003 in Germany, specializing in the production of precision mechanical transmission solutions. With more than 20 years of development, KBK is famous for its high technical quality and flexible customization. Main products include couplings such as bellows, elastomer, safety, Oldham, magnetic couplings, along with shaft-hub connections and clamping rings serving many mechanical and automation industries.
– The KBK Encoder Couplings KB4F product supplied by Dai Hong Phat is 100% genuine imported, with full CO/CQ, meeting international quality standards.
View more: Other KBK encoder coupling lines
2. Characteristics of KBK Encoder Couplings KB4F
– Manufacturer brand: KBK/Germany.
– Designed with flanges standardized according to DIN-EN-ISO 9401-1.
– High torsional stiffness, compensation of shaft misalignment at low restoring forces.
– Allows for shaft misalignment with low restoring forces.
– Shaft diameter range: 10-80 mm.
– Torque range: 18-1400 Nm.
View more product: KBK Encoder Couplings KB4C
| FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT: SALES DEPARTMENT HOTLINE: +84906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN |
3. Applications of KBK Encoder Couplings KB4F
The Encoder Shaft Coupling KBK KB4F is the optimal solution for positioning applications and transmitting high torsional moments in compact installations. This coupling is utilized for encoders, servo motors, packaging machines, CNC machines, machine tools, and specialized machinery.
View article: Top 5+ shaft couplings for machine manufacturing

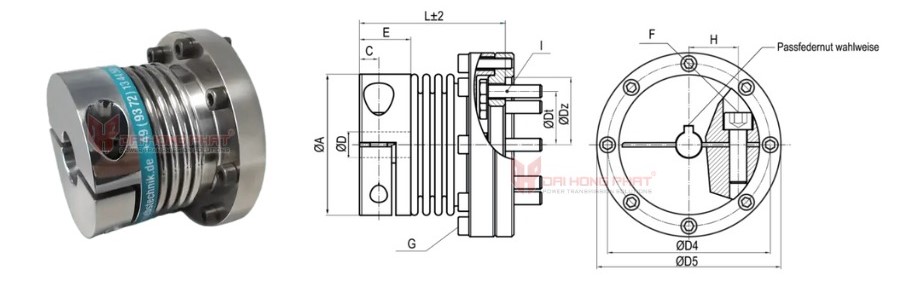

4. Technical specifications of the Metal Bellows Coupling KBK KB4F
| Catalogue KBK KB4F Coupling |
Installation KBK KB4F Coupling |
||||||
 |
|
| Size | Torque TKN (Nm) |
Dimensions (mm) | Masse (kg) | |||||||
| L | Ø A | D1 | H | C | E | D4 | F | |||
| 18 | 18 | 63 | 45 | 10-25.4 | 17 | 5.5 | 17.5 | 56.5 | M5 | 0.50 |
| 71 | 8 | 0.52 | ||||||||
| 30 | 30 | 61 | 56 | 10-32 | 20 | 7.3 | 21 | 65 | M6 | 0.70 |
| 69 | 30# | 15 | 0.72 | |||||||
| 60 | 60 | 68 | 66 | 12-35 | 23 | 8.6 | 24 | 76 | M8 | 1.00 |
| 78 | 40 | 1.05 | ||||||||
| 150 | 150 | 79 | 82 | 14-44 | 28 | 9.8 | 27 | 94 | M10 | 1.65 |
| 90 | 84 | 1.75 | ||||||||
| 300 | 300 | 90 | 110 | 30-60 | 39 | 11.8 | 32.5 | 120 | M12 | 2.90 |
| 101 | 145 | 3.00 | ||||||||
| 500 | 500 | 100 | 122 | 35-70 | 45 | 13.3 | 36 | 142 | M12 | 4.55 |
| 111 | 145 | 4.70 | ||||||||
| 1400 | 1400 | 140 | 157 | 50-80 | 55 | 22.5 | 55 | 171 | 2xM20 | 10.50 |
| 470 | ||||||||||
5. Why choose Dai Hong Phat Corp?
– 100% genuine products imported directly from KBK Germany.
– Protect customers from counterfeit goods and always provide full CO/CQ documents.
– Goods in stock, fast delivery nationwide 24/7.
– Free technical consultation and support for drawings, catalogs.
– Refined processing workshop to meet individual requirements.
—————-/—————–/—————–/—————–/—————–
With more than 15 years of experience, Dai Hong Phat Transmissions Shaft Couplings is proud to be a trusted partner of hundreds of domestic and foreign enterprises.
Let us accompany your sustainable development!
