METAL BELLOWS COUPLING KBK KB3P

The Metal Bellows Coupling KBK KB3P, designed for encoders, is made of stainless steel, providing excellent rigidity while allowing for shaft misalignment. It features low restoring force, facilitating shaft misalignment compensation. The coupling accommodates shaft diameters ranging from 3 to 25 mm and operates within a torque range of 0.5 to 10 Nm.

Description

5/5 - (1 vote)

1. Why choose Dai Hong Phat Corp. as your supplier for KBK Metal Bellows Couplings?

– Our customers will have the opportunity to purchase genuine KBK shaft couplings imported directly from KBK Germany.
– Dai Hong Phat will safeguard you against risks by providing genuine KBK Encoder Coupling products and protecting you from counterfeit items.
– We ensure that all necessary CO/CQ documentation for Metal Bellows Coupling KBK KB3P products will be provided to our customers.
– With a readily available stock of KBK KB3P Coupling, Dai Hong Phat guarantees swift delivery to our customers.
– Technical drawings of the shaft couplings will be provided upon request to our customers.
– We maintain a highly skilled team of technical specialists to assist our customers with any inquiries or concerns they may have.
– Free consultation services are offered to optimize solutions for our customers’ plants with genuine Metal Bellows Coupling products from the Ringfeder brand.
– Our customers will receive the official KBK shaft coupling catalogue from Dai Hong Phat.
– We offer complimentary customization of technical specifications and dimensions for KBK KB3P Coupling products according to our customers’ requirements.
– Our nationwide 24/7 delivery service ensures minimal downtime for our customers’ machinery.
– Dai Hong Phat boasts a professional workshop for precision machining tailored to our customers’ specific requests.

2. Dai Hong Phat Corp. is the specialized representative for supplying all Metal Bellows Coupling KBK products in Vietnam:

– Dai Hong Phat Company is the exclusive importer and distributor of all 100% genuine KBK encoder coupling products throughout Vietnam and the Southeast Asia region. (Authorized Distributor for KBK Products in Vietnam).
– With over 15 years of reputable service, Dai Hong Phat ensures customers acquire Metal Bellows Coupling KBK KB3P that are 100% authentic, high-quality, and competitively priced in the market.

3. Characteristics of The Metal Bellows Coupling KBK KB3P:

– The Metal Bellows Coupling KBK KB3P are manufactured by KBK/Germany.
– Made of stainless steel.
– Exhibits good rigidity.
– Allows for high shaft misalignment.
– Low restoring force, enabling shaft misalignment compensation.
– Shaft diameter ranges from 3-25 mm.
– Torque range: 0.5-10 Nm.

View more product “Metal Bellows Coupling KBK KBFK“

FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT:
SALES DEPARTMENT
HOTLINE: +84906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN

4. Applications of the Metal Bellows Coupling KBK KB3P:

The Encoder bellows coupling is the optimal solution for applications requiring precise positioning and high torque transmission in compact installation spaces. The KBK KB3P product is used for Encoders, Servo motors, in packaging machines, CNC machines, machine tools, special machinery, vacuum applications, and more.

5. Technical of the Metal Bellows Couplings KBK KB3P:

Catalogue Encoder KBK KB3P				Installation Encoder KBK KB3P

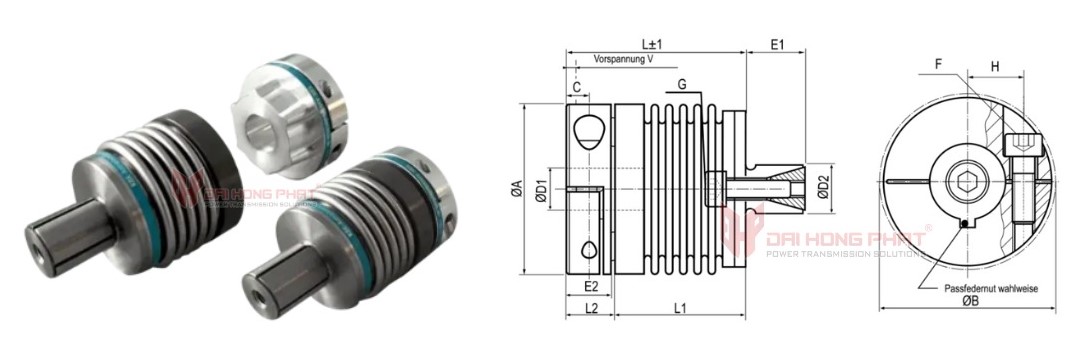

*Technical Drawing of the Metal Bellows Coupling KBK KB3P*

Size	Torque TKN (Nm))	Dimensions (mm)								Masse (g)
		L	Ø A	Ø B	D1	D2	H	C	F/G
5	0.5	24	15.5	17.5	3-8	8-12	5.2	2.5	M2/M3	14.9
		28								15.4
		31			8#				0.43/1	15.8
10	1	26	15.5	17.5	3-8	8-12	5.2	2.5	M2/M3	16.4
		30								17
		34			8#				0.43/1	17.8
15	1.5	29	20	21	3-10	10-14	7	3	M2.5/M4	31.7
		33			10#				0.85/3	34.1
20	2	33	25	27	3-14	10-16	9	3.5	M3/M4	46.7
		39								50.3
		43			14#				2/3	57.2
45	4.5	43	32.5	34	6-18	14-20	12	5	M4/M5	100.7
		51			18#				3.5/5.9	108.1
100	10	49	40.5	41.5	6-25	16-22	15.5	5	M4/M6	157.1
		59			25#				4.5/10	179.3

Size	Dimensions (mm)
	E1	E2	L1	L2	L3	V
5	8	6	17	7	11	0.5
			21
			24
10	8	6	19	7	11	0.5
			23
			27
15	12	6.5	21.5	7.5	12.5	0.5
			25.5
20	12	10	22	11	16	0.5
			28
			32
45	16	12	30	13	20	0.5
			38
100	20	12	36	13	21	1
			46
