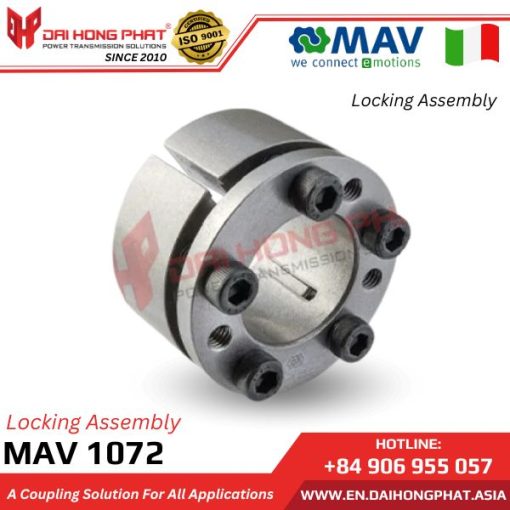

MAV 1072 LOCKING ASSEMBLY

The locking assembly MAV 1072 facilitates the transmission of torque, axial loads, and radial loads either independently or in combination. It operates without harsh reactions and provides friction between the shaft and its hubs.

Category: MAV Locking Assemblies Tags: Dai Hong Phat, LOCKING ASSEMBLY, power lock, LOCKING ELEMENTS, MAV 1072, MAV Italy, Keyless shaft bushing, Locking devices, Shaft hub connections, Locking Assembly MAV 1072

Description

5/5 - (1 vote)

1. What makes Dai Hong Phat Corp. the ideal choice for your Locking Assembly MAV supplier?

– You will be able to purchase 100% genuine Locking Assembly MAV 1072 directly imported by Dai Hong Phat from the manufacturer.
– You can trust Dai Hong Phat to protect you from risks and counterfeit products of MAV.
– Dai Hong Phat provides complete CO/CQ documents for Locking Assembly MAV.
– MAV products are always available in Dai Hong Phat’s warehouse, ensuring fast delivery to customers.
– Dai Hong Phat will provide technical drawings of the MAV 1072 products you purchase upon request.
– Dai Hong Phat offers dedicated support and consultation to customers regarding bolted flexible couplings, with a team of highly skilled technical specialists.
– Dai Hong Phat provides free consultation on optimal solutions for your plant regarding genuine MAV Products.
– Dai Hong Phat provides customers with genuine Locking Assembly MAV catalogues.
– Dai Hong Phat offers free technical parameter conversion and customization of MAV 1072 according to customer requirements.
– Dai Hong Phat provides nationwide 24/7 delivery services, minimizing downtime for your machinery.
– Dai Hong Phat has a professional workshop for custom machining according to customers’ specific requirements.

2. Dai Hong Phat Corp. is the specialized representative for supplying all Locking Assembly MAV products throughout Vietnam:

– Dai Hong Phat is the exclusive importer and distributor of all 100% genuine MAV brand Locking Assembly products across Vietnam and the Southeast Asia region.
– With over 10 years of reputable service, Dai Hong Phat ensures customers acquire 100% authentic Locking Assembly MAV 1072 products with high quality and the best prices in the market.

3. Characteristics of The Locking Assembly MAV 1072:

– Manufacturer: MAV/Italy.
– Inner diameter d: 20-150 mm.
– Outer diameter D: 47-200 mm.
– Overall length L: 37-77 mm.
– Torque T: 310-31,700 Nm.
– Average torque load capacity.
– Self-locking and self-centering.
– No fixed centering of the shaft during tightening.
– Maximum tolerance: shaft h8; center hole H8.
– Maximum surface finish of the shaft hub: Ra <= 3.2 µm

View more product “Locking Assembly MAV 5061“

FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT:
SALES DEPARTMENT
HOTLINE: +84906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN

4. Applications of The Locking Assembly MAV 1072:

The Locking Assembly MAV 1072 is utilized in various industrial applications to ensure secure shaft locking. It is commonly found in heavy machinery, power transmission systems, rotating equipment, marine industry, automotive manufacturing, material handling, paper and pulp industry, as well as renewable energy systems. Its primary function is to prevent shaft slippage and maintain alignment, ensuring reliable operation across diverse industrial sectors.

5. Technical of The Locking Assembly MAV 1072:

Catalogue MAV 1072				Installation MAV 1072

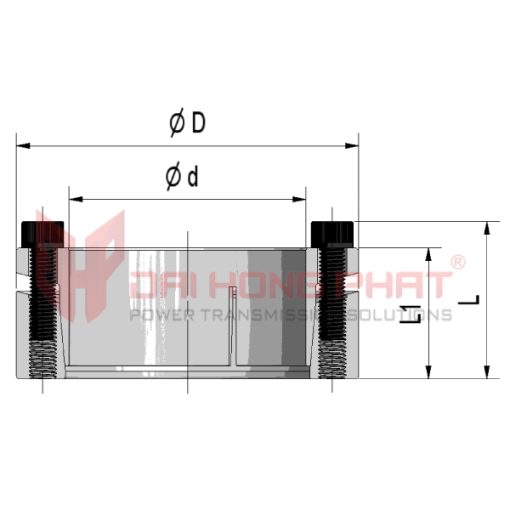

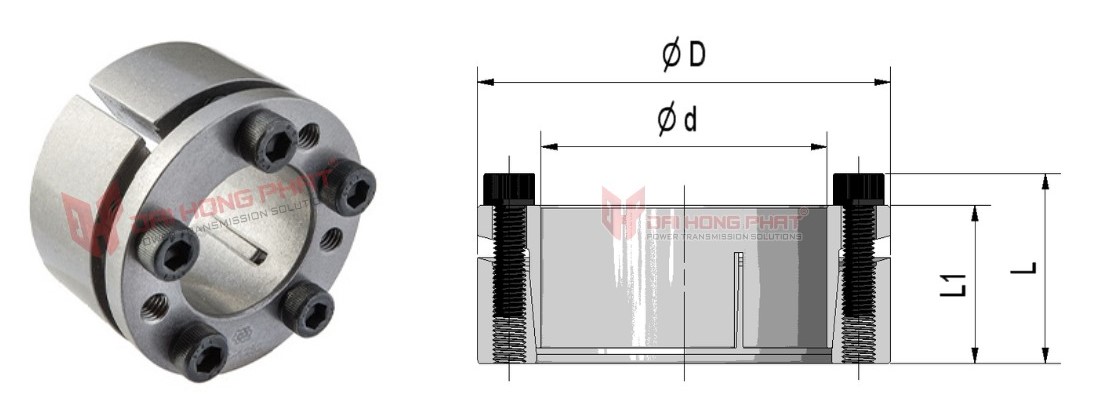

*Technical drawing of The Locking Assembly MAV 1072*

DIMENSIONS			SCREWS ISO 4762 – 12.9		PERFORMANCES				WEIGHT
d x D	L1	L	size	Ma	Mt	Fax	Ps	Ph	WEIGHT
mm x mm	mm	mm		Nm	Nm	kN	MPa	MPa	kg
20 x 47	31	37	M 6	17	310	31	211	90	0.3
22 x 47	31	37	M 6	17	340	31	192	90	0.3
24 x 50	31	37	M 6	17	470	39	220	106	0.3
25 x 50	31	37	M 6	17	490	39	211	106	0.3
28 x 55	31	37	M 6	17	540	39	189	96	0.4
30 x 55	31	37	M 6	17	580	39	176	96	0.3
32 x 60	31	37	M 6	17	750	47	198	106	0.4
35 x 60	31	37	M 6	17	820	47	181	106	0.4
38 x 65	31	37	M 6	17	890	47	167	98	0.5
40 x 65	31	37	M 6	17	930	47	158	98	0.4
42 x 75	38	46	M 8	41	1,810	86	239	134	0.8
45 x 75	38	46	M 8	41	1,940	86	223	134	0.7
48 x 80	38	46	M 8	41	2,070	86	209	126	0.8
50 x 80	38	46	M 8	41	2,160	86	201	126	0.8
55 x 85	38	46	M 8	41	2,770	101	213	138	0.8
60 x 90	38	46	M 8	41	3,020	101	195	130	0.9
65 x 95	38	46	M 8	41	3,740	115	206	141	1.0
70 x 110	50	60	M 10	83	5,780	165	208	132	1.9
75 x 115	50	60	M 10	83	6,190	165	194	127	2.1
80 x 120	50	60	M 10	83	6,600	165	182	121	2.2
85 x 125	50	60	M 10	83	8,020	189	196	133	2.3
90 x 130	50	60	M 10	83	8,490	189	185	128	2.5
95 x 135	50	60	M 10	83	11,200	236	219	154	2.6
100 x 145	58	68	M 10	83	11,800	236	170	118	3.6
110 x 155	58	68	M 10	83	13,000	236	155	110	3.9
120 x 165	58	68	M 10	83	17,000	283	170	124	4.2
130 x 180	65	77	M 12	145	22,900	352	176	127	5.8
140 x 190	65	77	M 12	145	24,700	352	163	120	6.2
150 x 200	65	77	M 12	145	31,700	423	183	137	6.6

Customers purchasing the MAV 1072 locking device from Dai Hong Phat Corp enjoy the following benefits:

– Dai Hong Phat Corp. is the official authorized distributor of MAV in Vietnam and the Southeast Asia region.
– The company places “quality” as its primary business objective and customer service focus.
– Dai Hong Phat commits that all Locking Assembly MAV 1072 products are 100% genuine, brand new, accompanied by certificates, and have clear origins.
