KTR FLEXIBLE COUPLINGS EVOLASTIC EH/EHP

The KTR Flexible Couplings Evolastic EH/EHP from KTR/Germany are high-quality couplings made from a combination of steel and elastic rubber material.
These couplings offer high flexibility with a soft torsional characteristic, providing insulation against vibrations and noise in the drive system. They facilitate the transmission of torque, compensation for shaft misalignment, radial and angular misalignment, and offer flexible load absorption.

Dai Hong Phat Transmission Shaft Couplings is the authorized distributor and genuine provider of KTR Germany in Vietnam.

Description

5/5 - (4 votes)

Let’s learn about KTR Flexible Couplings Evolastic EH/EHP with Dai Hong Phat, through the following article!

1. About Dai Hong Phat Corp- KTR Germany

– Dai Hong Phat Corp is the official authorized representative of KTR Germany in Vietnam (KTR Vietnam). We provide genuine transmission shaft coupling solutions, meeting international standards, helping to optimize the performance and durability of machinery systems.
– KTR was established in 1959 in Germany. KTR is an abbreviation of
K – Kupplung (Coupling) | T – Technology (Technology) | R – Rheine (Region)
– KTR products: Rotex shaft coupling, Clampex shaft locking joint, hydraulic brake, …
– KTR Flexible Couplings Evolastic EH/EHP products supplied by Dai Hong Phat are 100% genuine imported, with full CO/CQ, meeting international quality standards.

ktr-goods-agent-certificate Certificate of Dai Hong Phat as Authorized Distributor of KTR Germany in Vietnam

See more: Other KTR Flexible Couplings

2. Characteristics of KTR Flexible Couplings Evolastic EH/EHP

– Manufacturer brand: KTR Germany
– They are highly flexible couplings designed for applications in drive systems of IC engines and frequency converters.
– With a torque range of 0 – 5,600Nm, these couplings possess high flexibility, providing effective insulation against vibrations and noise in the drive system. They are available in various hardness grades, denoted by Shore “SN” and “MN”.
– These couplings compensate for shaft misalignment, radial and angular misalignment, and overload flexibly. The EH type can be fastened via the shaft with 11 size options, while the EHP type can be plugged onto the shaft, also with 11 size options.
– Constructed from high-quality elastic materials, these couplings feature closed-loop elastomeric elements, which can be made from natural rubber (NR up to 90°C) or, at higher temperatures, from synthetic EPDM material (EPDM up to 110°C).

See more products: KTR Flexible Couplings Evolastic E/EP
See products: KTR Flexible Couplings Evolastic E2H/ E2HP

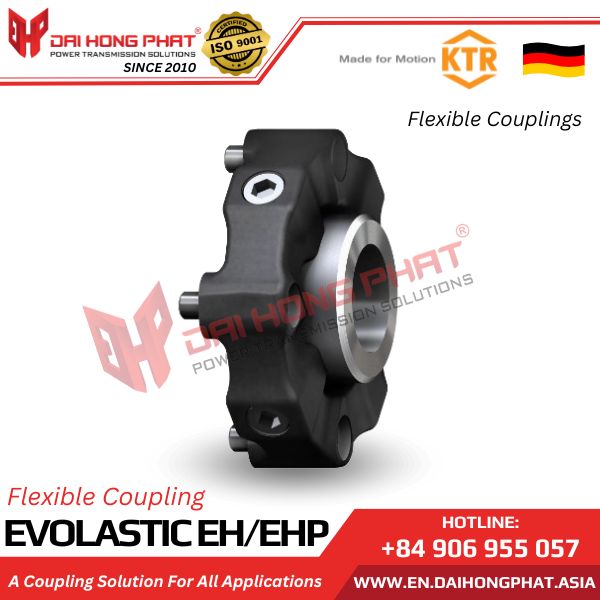

*3D image of Evolastic EH/EHP Highly Flexible Couplings*

FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT:
SALES DEPARTMENT
HOTLINE: (+84) 0906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN

3. Applications of Flexible Couplings Evolastic EH/EHP

The Evolastic EH/EHP highly flexible couplings from KTR Germany are of high quality and are gaining popularity in various manufacturing plants, especially in applications involving the drive systems of IC engines and frequency control.
What sets these couplings apart is their construction from elastic materials, enabling them to transmit torque, compensate for shaft misalignment, radial and angular misalignment, and most importantly, absorb overloads flexibly. Additionally, these couplings reduce noise levels, providing effective solutions for production efficiency. They are versatile and find applications across mechanical engineering and manufacturing plants.

See article: What is Elastic Shaft Coupling? Applications of Elastic Shaft Coupling

4. Technical specifications of Evolastic EH/EHP Highly Flexible Coupling

Catalogue Evolastic EH/EHP				Installation Evolastic EH/EHP

*Technical drawing of Evolastic EH/EHP flexible couplings*

Size	Dimensions [mm]								Weight [kg]
Size	D	DH	DN	DN1	B1	B2	L	M1	EH	EHP
12	38	38	60	80	32	28	88	M10	1.04	1.09
24	46	46	70	100	42	36	106	M12	1.76	1.85
32	46	46	70	100	42	36	106	M12	1.95	2.08
48	55	55	85	115	46	40	116	M14	2.9	3.07
60	65	65	100	140	58	50	140	M16	4.55	4.79
86	65	65	100	140	58	50	140	M16	5.03	5.32
125	85	85	125	160	70	63	168	M20	8.77	9.15
200	85	85	125	160	70	63	168	M20	9.8	10.3
280	105	105	145	160	80	72	192	M20	13.54	14.29
360	115	115	160	195	85	78	208	M20	18.85	19.44
560	120	120	170	200	105	95	260	M24	26.34	28.41
