1. Why choose Dai Hong Phat as the supplier for the rigid shaft couplings KBK?
– You will purchase 100% genuine rigid shaft couplings KBK KBST-G directly imported by Dai Hong Phat from the manufacturer.
– You can have absolute peace of mind as Dai Hong Phat will safeguard you against the risks of counterfeit KBK KBST-G products.
– You will receive complete CO/CQ certificates for the rigid shaft couplings provided by Dai Hong Phat.
– Genuine rigid shaft coupling products are always available in Dai Hong Phat’s warehouse, ensuring swift delivery to you.
– Dai Hong Phat will provide you with the technical drawings of the purchased rigid shaft coupling upon request.
– Dai Hong Phat always provides dedicated support and consultation to customers regarding rigid shaft couplings, with a highly skilled technical team readily available.
– Dai Hong Phat offers free advice on optimal solutions for your factory.
– You will receive the authentic products catalogue from Dai Hong Phat.
– Dai Hong Phat will offer free customization of technical specifications and dimensions of the couplings according to your requirements.
– Dai Hong Phat provides nationwide 24/7 delivery services, minimizing downtime for your machinery.
– Dai Hong Phat operates a professional machining workshop for custom adjustments as per your specific needs.
2. Dai Hong Phat Corp. is the dedicated representative for supplying all KBK KBST-G coupling products across Vietnam:
– Dai Hong Phat is the importer and distributor of all genuine KBK brand rigid shaft couplings throughout Vietnam.
– With over 10 years of reputation, Dai Hong Phat ensures customers acquire 100% genuine KBK KBST-G rigid shaft couplings with high quality and the most competitive prices in the market.
3. Characteristics of the Rigid Shaft Couplings KBK KBST-G:
– The KBK KBST-G rigid shaft couplings are manufactured by KBK/Germany.
– Torque range: 30Nm – 2250Nm.
– Designed as a rigid coupling to connect two shafts without misalignment.
– Suitable for shaft diameters ranging from 5mm to 52mm.
– Easy and quick installation with a center-split design, facilitating assembly and disassembly without shaft movement.
– Constructed from stainless steel for durability and stability.
– The KBK KBST-G rigid coupling ensures a secure connection between two shafts without misalignment. Its straightforward installation and center-split design allow for easy assembly and disassembly without shaft displacement. These rigid couplings are compactly designed to efficiently transmit high torque at minimal levels.
View more product “Rigid Shaft Couplings KBK KBST-VA“
| FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT: SALES DEPARTMENT HOTLINE: +84906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN |
4. Applications of the KBK KBST-G Rigid Shaft Couplings:
The rigid shaft couplings KBK KBST-G are versatile components used in machinery manufacturing, automotive, robotics, aerospace, marine, energy, mining, construction, rail transportation, paper and textile manufacturing, and food and beverage industries. They ensure precise and stable shaft connections without misalignment, making them crucial for various rotating systems and equipment.
5. Technical of the Rigid Shaft Couplings KBK KBST-G:

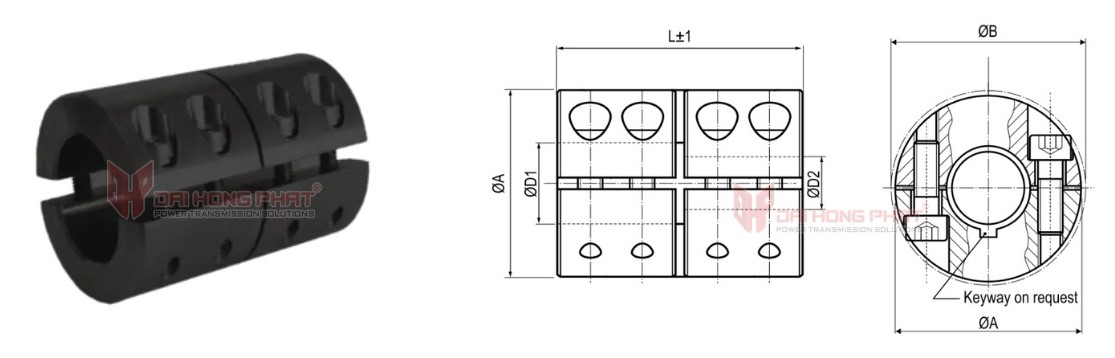

| Catalogue KBK KBST-G |
Installation KBK KBST-G |
||||||
 |
|
| Rigid Shaft Coupling split – Steel blackened | |||||||||
| Size | Torque Steel Nm |
Dimensions – Dimensions | Screws (ISO4762) | Tightening Torque Screws Nm | Mass g | ||||
| Standard Bore D1 / D2 H7 |
different Bores min~max | A mm |
B mm |
L mm |
|||||
| 6 | 30 | 6 | 5-7 | 18 | 21.2 | 30 | M3x8 | 2 | 47 |
| 8 | 50 | 8 | 5-12 | 24 | 26.8 | 35 | M3x10 | 3 | 102 |
| 10 | 100 | 10 | 5-15 | 29 | 32.7 | 45 | M4x12 | 4.5 | 185 |
| 12 | 100 | 12 | 5-15 | 29 | 32.7 | 45 | M4x12 | 4.5 | 180 |
| 14 | 190 | 14 | 10-17 | 34 | 39.1 | 50 | M5x16 | 9 | 272 |
| 15 | 190 | 15 | 10-17 | 34 | 39.1 | 50 | M5x16 | 9 | 266 |
| 16 | 190 | 16 | 10-17 | 34 | 39.1 | 50 | M5x16 | 9 | 261 |
| 20 | 350 | 20 | 10-24 | 42 | 48.2 | 65 | M6x16 | 15 | 518 |
| 25 | 390 | 25 | 10-26 | 45 | 50.8 | 75 | M6x16 | 15 | 623 |
| 30 | 475 | 30 | 20-32 | 53 | 58.1 | 83 | M6x18 | 15 | 920 |
| 35 | 1100 | 35 | 20-40 | 67 | 74.1 | 95 | M8x25 | 40 | 1880 |
| 40 | 1325 | 40 | 30-50 | 77 | 83.4 | 108 | M8x25 | 40 | 2710 |
| 50 | 2250 | 50 | 40-52 | 85 | 93.2 | 124 | M10x25 | 84 | 3520 |
The benefits for customers when purchasing KBK rigid couplings at Dai Hong Phat company:
– With over 18 years of operation since its establishment in 2003, KBK has expanded its presence to over 45 countries worldwide as a leading manufacturer of industrial machinery parts.
– Dai Hong Phat has established a partnership with KBK from Germany, a renowned manufacturer of industrial machinery parts in Europe and worldwide.
– We guarantee that KBK KBST-G rigid shaft couplings are 100% genuine, with new quality, certification papers, and clear origin.
– Our core cooperation values aim to bring significant benefits to customers by providing optimal solutions for KBK KBST-G in Vietnam. The KBK KBST-G rigid coupling products are distributed exclusively by Dai Hong Phat company.
