KBK ENCODER COUPLINGS KB4VA

The KBK Encoder Couplings KB4VA is engineered with standardized flanges according to DIN-EN-ISO9401-1 and features low restorative forces. This coupling is widely utilized in various applications such as encoders, CNC machines, and more.

Dai Hong Phat Corp Transmission Shaft Couplings is an authorized distributor and genuine provider of KBK Germany in Vietnam.

Description

5/5 - (1 vote)

Let’s learn about KBK Encoder Couplings KB4VA with Dai Hong Phat through the following article!

1. About Dai Hong Phat – KBK Germany

– Dai Hong Phat Corp is the official authorized representative of KBK Germany in Vietnam. We provide genuine transmission shaft coupling solutions that meet international standards, helping to optimize the performance and durability of machinery systems.
– KBK Antriebstechnik was founded in 2003 in Germany, specializing in the production of precision mechanical transmission solutions. With more than 20 years of development, KBK is famous for its high technical quality and flexible customization. Main products include couplings such as bellows, elastomer, safety, Oldham, magnetic couplings, along with shaft-hub connections and clamping rings serving many mechanical and automation industries.
– The KBK Encoder Couplings KB4VA product supplied by Dai Hong Phat is 100% genuine imported, with full CO/CQ, meeting international quality standards.

View more: Other KBK encoder coupling lines

2. Characteristics of KBK Encoder Couplings KB4VA

– Manufacturer brand: KBK/Germany.
– Backlash-free metal bellows coupling completely in stainless steel.
– Also available as laser-welded execution for high-temperature or vacuum applications.
– For shaft diameters from 10 – 70mm.
– High torsional stiffness, compensation of shaft misalignment at low restoring forces.
Torque range: 18 – 500Nm.

View more product: KBK Encoder Couplings KB4P

FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT:
SALES DEPARTMENT
HOTLINE: +84906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN

3. Applications of KBK Encoder Couplings KB4VA

The Metal Bellows Coupling KBK KB4VA is the optimal solution for precision positioning applications and high torque transmission in compact installation spaces. The KBK KB4VA model is specifically designed for use with encoders, servo motors, and finds applications in packaging machines, CNC machinery, machine tools, and various specialized equipment.

View article: Top 5+ shaft couplings for machine manufacturing

4. Technical specifications of KBK KB4VA Couplings

Catalogue KBK KB4VA Coupling				Installation KBK KB4VA Coupling

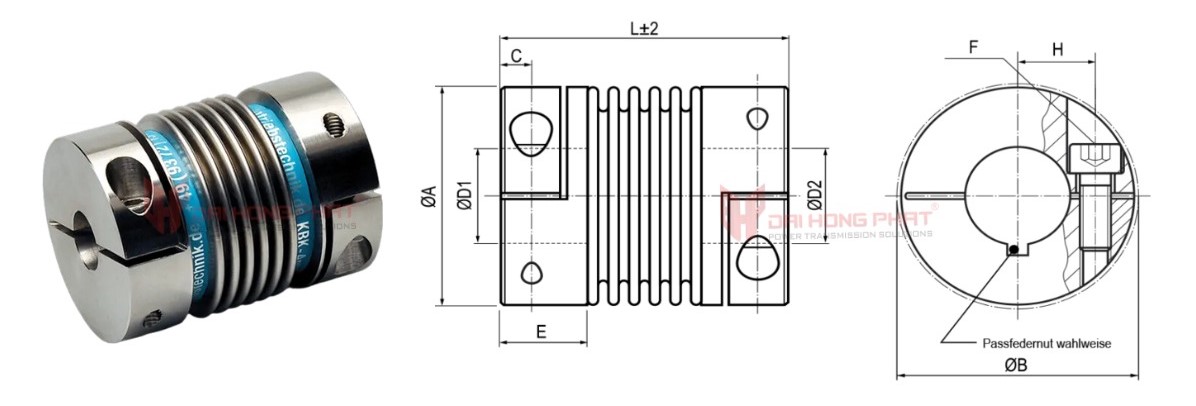

*Technical drawing of the Metal Bellows Coupling KBK KB4VA*

Size	Torque TKN (Nm)	Dimensions (mm)								Masse kg
		L	Ø A	D1/D2	H	C	E	B	F
18	18	63	45	10-25.4	17	5.5	19.5	47.4	M5	0.27
		71							8	0.41
30	30	65	56	10-32	20	7.5	24.5	56.4	M6	0.83
		73		#30					15	0.89
60	60	79	66	12-35	23	10	29	66	M8	1.4
		89							40	1.7
80	80	91	82	14-44	28	11	33.5	82.9	M10	2.3
		102							84	2.4
150	150	91	82	19-44	28	11	33.5	82.9	M10	2.3
		102							84	2.4
200	200	101	90	22-47	31	13	38	90.8	M12	2.6
		113							125	2.7
300	300	105	110	30-60	40	13	38	110	M12	3.6
		116							145	3.7
500	500	112	122	35-70	42	15	42	122	M12	5.1
		123							145	5.2

5. Why choose Dai Hong Phat Corp?

– 100% genuine products imported directly from KBK Germany.
– Protect customers from counterfeit goods and always provide full CO/CQ documents.
– Goods in stock, fast delivery nationwide 24/7.
– Free technical consultation and support for drawings, catalogs.
– Refined processing workshop to meet individual requirements.

—————-/—————–/—————–/—————–/—————–

With more than 15 years of experience, Dai Hong Phat Shaft Coupling is proud to be a trusted partner of hundreds of domestic and foreign enterprises.
Let us accompany your sustainable development!
