ITALGIUNTI CARDAN COUPLINGS SERIES 587.48

Let’s learn about Italgiunti Cardan Couplings series 587.48 with Dai Hong Phat, through the following article!

1. About Dai Hong Phat – Itagiunti Italy

– Dai Hong Phat is an authorized representative, genuine distributor of Italgiunti Italy in Vietnam. We provide genuine transmission shaft coupling solutions, meeting international standards, helping to optimize the performance and durability of machinery systems.
– Italgiunti was founded more than 60 years ago in Borgaro Torinese, Italy. The main product “Cardan couplings” for a variety of applications. All products bear the Made in Italy mark, demonstrating precision, creativity and European quality.
– The Italgiunti Cardan Shaft Coupling size 587.55 product supplied by Dai Hong Phat is 100% genuine imported, with full CO/CQ, meeting international quality standards.

View more: Other Italgiunti cardan shaft coupling lines here

2. Characteristics of Italgiunti Cardan Couplings Series 587.48

– Manufacturer brand: Italgiunti/Italy.
– The Cardan shaft coupling allows smooth and low-noise torque transmission.
– The shaft coupling comes in various designs, including single, double, 2-part, or 3-part configurations.
– TK: standard torque: 25.000 Nm.
– TCS: Functional limit torque: 35.000 Nm
– TDW: Reversing fatigue torque: 11.000 Nm.
– Its length can be customized according to the requirements of machinery or plant equipment.
– Constructed from two or more Cardan shafts combined with one or multiple Cardan joint couplings.
– Cardan Shaft Size 587.48 is installed in the intermediate position between the driving and driven shafts without being aligned on the same axis.
– Made from steel material with excellent resistance to corrosion and wear, also known as stainless steel.
– It offers good vibration damping capabilities and effective impact resistance.
– Cardan size 587.48 combines the structural characteristics and features of a basic shaft coupling with the advantages of a high-quality Cardan coupling.

View more product: Italgiunti Cardan Couplings series 1140

3. Applications of Italgiunti Cardan Couplings Series 587.48

Compared to other types of shaft couplings, the Universal Joint Couplings Series 587.48 have the ability to accommodate angular misalignment of up to 45 degrees, making it suitable for a wide range of applications in general engineering. It can handle maximum speeds of up to 1000 rpm and is particularly useful in machinery with limited space or requiring high flexibility.

4. Technical specifications of the Universal Joint Couplings Series 587.48

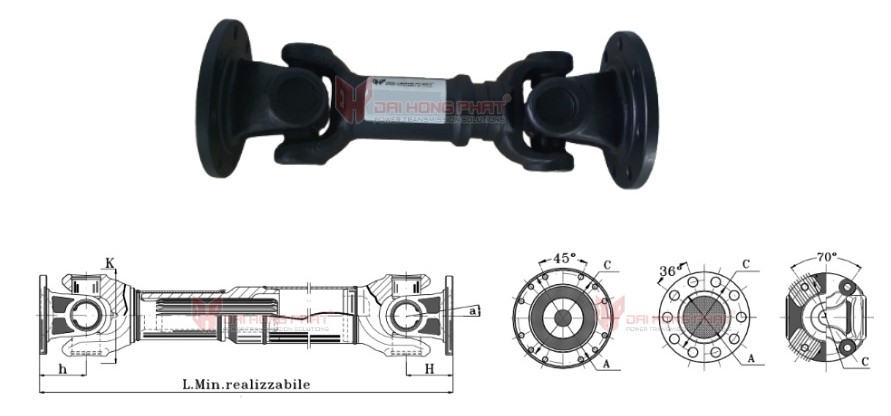

Catalogue Cardan Size 587.48				Installation Cardan Size 587.48

SAE – ASA Flange

DIN Flange

KV – XS Flange

5. Why choose Dai Hong Phat Corp?

– 100% genuine products imported directly from Italgiunti Italy.
– Protect customers from counterfeit goods and always provide full CO/CQ documents.
– Goods in stock, fast delivery nationwide 24/7.
– Free technical consultation and support for drawings, catalogs.
– Refined processing workshop to meet individual requirements.

—————-/—————–/—————–/—————–/—————–
