Let’s learn about Cross+Morse Overload Couplings type 700M with Dai Hong Phat, through the following article!
1. About Dai Hong Phat Corp – Cross+Morse UK
– Dai Hong Phat Corp is the official authorized representative of Cross+Morse UK in Vietnam. We provide genuine transmission shaft coupling solutions, meeting international standards, helping to optimize the performance and durability of machinery systems.
– Cross+Morse, established in 1984 in the UK. With a history of more than 100 years of development, is a leading supplier of power transmission solutions. Products such as industrial chains, sprockets, transmission couplings, and belts. From its headquarters in Birmingham, UK, Cross+Morse continues to maintain its global position in quality and reputation in the industry.
– The Cross+Morse Overload Couplings type 700M product supplied by Dai Hong Phat is 100% genuine imported, with full CO/CQ, meeting international quality standards.
2. Characteristics of Cross+Morse Overload Couplings type 700M
– Manufacturer brand: Cross Morse/England.
– The Crossmorse 700M overload coupling is a type of torque-limiting coupling used in power transmission systems, designed to slip when subjected to excess loads such as shock loads, overloads, or machinery jams. It comes in sizes including the Torque Limited Model 700M. This coupling automatically re-engages once the overload is removed, without the need for resetting. Torque is transmitted through the load-carrying friction faces of the spring pack, which is adjustable via simple adjustment of nuts and bolts without the need for re-setting. This overload protection coupling prevents machinery damage and eliminates costly downtime.
– The Crossmorse 700 coupling is suitable for use with sprockets, gears, pulleys, or a flange face as the central component clamped between the friction faces.
– This overload protection coupling combines torque limiting with the capability of connecting inline shafts. The 700M safety coupling consists of a standard torque limit pack and a sprocket connected to a special coupling plate by a duplex roller chain.
– The coupling has both initial torque and torque in metric units, providing both smaller and larger unit options. Both torque values are available with a roller chain coupling.
View more product: Torque Limiters Type 500M
| FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT: SALES DEPARTMENT HOTLINE: +84906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN |
3. Applications of Cross+Morse Overload Couplings type 700M
The Torque Limiter Couplings type 700M by Cross Morse are used in industrial machinery to prevent damage from torque overload. They find applications in mining, material handling, wood processing, food, automotive, printing, packaging, and textile industries, safeguarding equipment from jams and sudden torque spikes.
4. Technical specifications of the Cross Morse Torque Limiters Type 700M
| Catalogue Cross Morse 700M Overload Coupling |

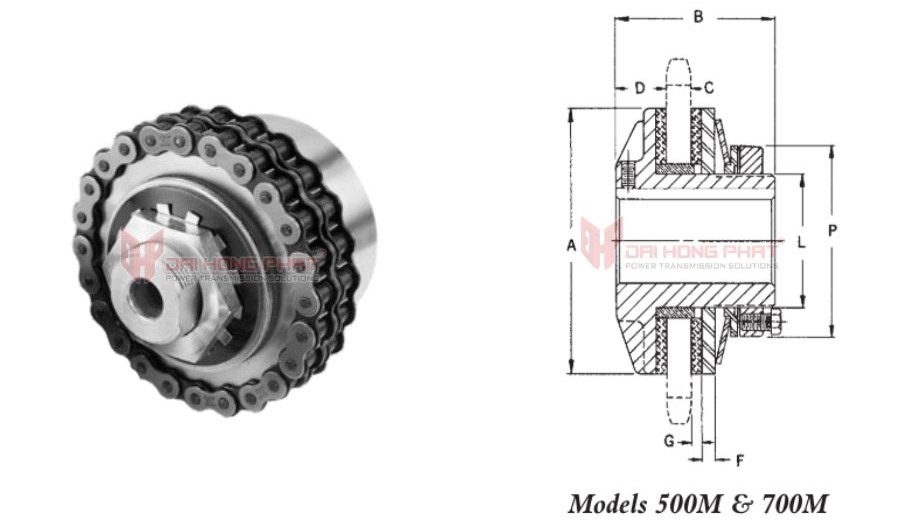

Installation Cross Morse 700M Overload Coupling |
||||||
 |
|
| *Model | Torque min | Torque max | Stock min plain bore | Stock Finish bores | Max Bore with Std Keyway | Standard Bush Lengths (Ref.) | A | B | C (max) |
D | F | G | L | M A/F |
P | Weight |
| Nm | Nm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kg | |
| 700M1
|
110
|
770
|
24 | 40 45 | 64 | (520, 580, 667, 868, 966, 1187, 1375) | 178 | 98 | 29 | 24 | 8 | 5 | 95.3 | – | 133 | 6.8 |
| 48 | ||||||||||||||||
| 700M2 | 224 | 1540 | 50 60 | 13.2, 14.7, 16.9, 22.3, 24.6, 30.2, 34.9 |
