RINGFEDER FLEXIBLE COUPLINGS TNS SDD-5

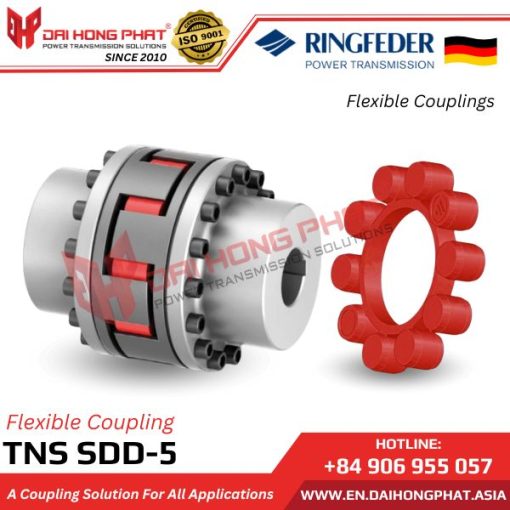

The Ringfeder Flexible Couplings TNS SDD-5 are capable of transmitting torque through its resilient cushion. This cushion, made of Perbunan (Pb) or polyurethane (Vk), serves as a shock-absorbing and torsion-damping element and can be oil-immersed. The coupling features a two-part structure with two halves, allowing for axial displacement and removal of the intermediate section.

Dai Hong Phat Corp Shaft Coupling is an authorized representative and genuine distributor of Ringfeder Germany in Vietnam, Laos, Cambodia, Philippines and Bangladesh.

Description

5/5 - (1 vote)

Let’s learn about Ringfeder Flexible Couplings TNS SDD-5 with Dai Hong Phat, through the following article!

1. About Dai Hong Phat Corp – Ringfeder Germany

– Dai Hong Phat Corp is the official authorized representative of Ringfeder Germany in Vietnam (Ringfeder Vietnam), Laos, Cambodia, Philippines and Bangladesh. We provide genuine transmission shaft coupling solutions that meet international standards, helping to optimize the performance and durability of machinery systems.
– Ringfeder Germany – the world’s leading brand in transmission and shock absorber solutions, with over 100 years of history of creation and innovation. Founded in 1922, with the first product “friction springs“, Ringfeder has become a global symbol of prestige for quality and reliability.
– Ringfeder Flexible Couplings TNS SDD-5 products supplied by Dai Hong Phat are 100% genuine imported, with full CO/CQ, meeting international quality standards.

An authorized distributor for Ringfeder product in Vietnam Certificate of Dai Hong Phat Corp is an authorized representative of Ringfeder Germany in Vietnam

See more: Other types of Ringfeder flexible shaft couplings

2. Characteristics of Flexible Couplings TNS SDD-5:

– Flexible Couplings TNS SDD-5 are manufactured by Ringfeder/Germany.
– Twisting flexibility, compensating for angular, radial, and axial misalignment.
– Resilient material available in various hardness levels.
– Suitable for temperatures ranging from -30°C to +100°C.
– Outer diameter up to 400 mm.
– Maximum bore diameter: 160 mm.
– Torque up to T Kn = 13,350 Nm / T Kmax = 40,000 Nm.
– Maximum speed up to n max = 7,250 revolutions per minute (rpm).
– Designed with multiple components with a standard flange face for easy disassembly of rings. The intermediate rings can be replaced by removing the rings without moving the shaft..
– The Ringfeder TNS SDD-5 coupling is used for drive components in various types of construction machinery, steel plant technology, mining, and cement industries, as well as for connecting components in overhead cranes, containers, and casting machines.
– Ringfeder TNS SDD-5 allows for angular, radial, and axial misalignment within defined limits. The resilient materials used operate reliably within the temperature range of -30°C to +100°C.
– The two-part structure of the two halves of the shaft coupling allows for radial movement and disassembly of the intermediate section. Therefore, the cushion rings can be replaced. The coupling is suitable for use in all directions of rotation and installation positions.

See more: Specifications of Ringfeder Elastomer Rings TNS (TsChan S)

FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT:
SALES DEPARTMENT
HOTLINE: (+84) 0906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN

3. Applications of Ringfeder TNS SDD-5:

Elastomer Jaw Couplings TNS SDD-5 are optimally utilized in various drive components across multiple sectors such as construction machinery, steel plant technology, mining and cement industries. It is also utilized in connecting components in overhead crane trolleys, containers, and casting applications.

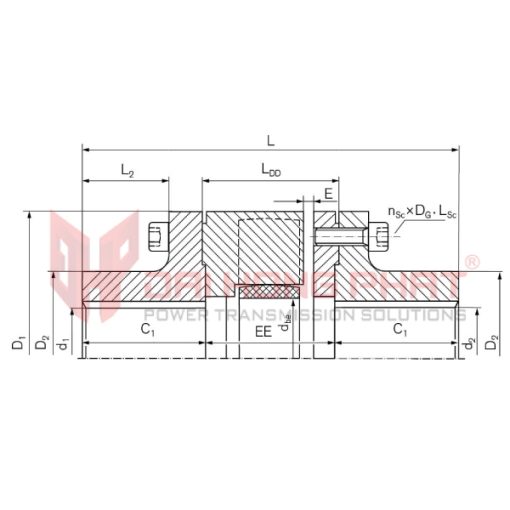

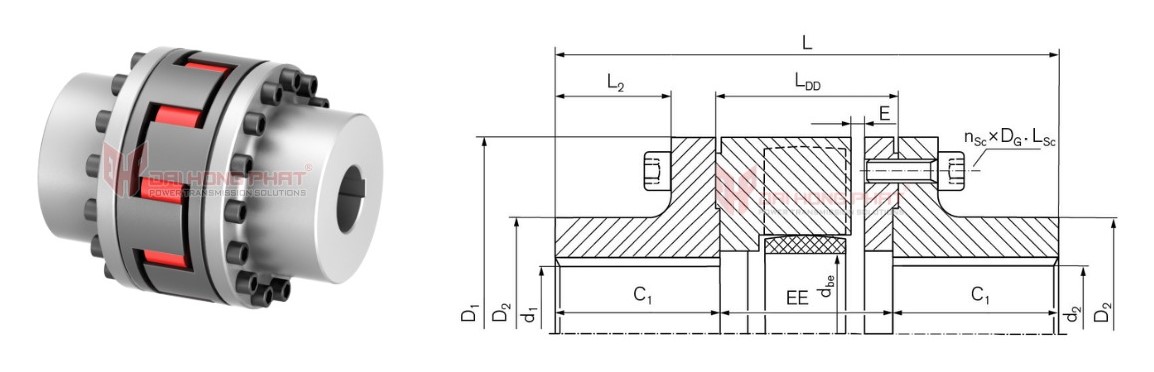

4. Technical of Elastomer Jaw Couplings TNS SDD-5:

Catalogue Ringfeder TNS SDD-5 Coupling				Installation Ringfeder TNS SDD-5 Coupling

Technical specifications of Ringfeder coupling TNS SDD-5:

Coupling Size	Identifier	T_KN Pb72	T_KNVkR	n_max	Dimensions [mm]					Gw_ub [kg]
Coupling Size	Identifier	[Nm]	[Nm]	1/min	d_1kmax	d_2kmax	D₁	D₂	L	Gw_ub [kg]
SDD-5-100	WS0710	40	130	7250	45	45	105	65	150	5.3
SDD-5-125	WS0712	70	250	6000	55	55	126	80	170	8.8
SDD-5-145	WS0714	120	400	5250	65	65	145	92	189	13.3
SDD-5-170	WS0717	180	630	4500	75	75	170	110	217	19.9
SDD-5-200	WS0720	330	1100	3750	95	95	200	135	274	35.3
SDD-5-230	WS0723	500	1700	3250	110	110	230	160	301	52.5
SDD-5-260	WS0726	800	2650	3000	125	125	260	180	321	71.5
SDD-5-300	WS0730	1180	3900	2500	140	140	300	200	376	109
SDD-5-360	WS0736	1940	6500	2150	160	160	160	225	469	179.8
SDD-5-400	WS0740	2670	8900	1900	160	160	400	225	469	197.7
