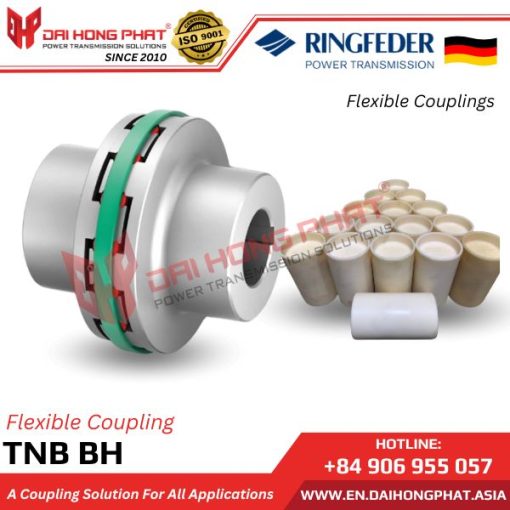

RINGFEDER FLEXIBLE COUPLINGS TNB BH

The Ringfeder Flexible Couplings TNB BH are resilient shaft couplings widely used worldwide and in heavy industrial applications. These couplings help to compensate for shaft misalignment, radial, and angular misalignment, and are robust enough to withstand adverse environments such as extreme temperatures or heavy dust.

Dai Hong Phat Corp Shaft Coupling is an authorized representative and genuine distributor of Ringfeder Germany in Vietnam, Laos, Cambodia, Philippines and Bangladesh.

Description

5/5 - (4 votes)

Let’s learn about Ringfeder Flexible Couplings TNB BH with Dai Hong Phat, through the following article!

1. About Dai Hong Phat Corp – Ringfeder Germany

– Dai Hong Phat Corp is the official authorized representative of Ringfeder Germany in Vietnam (Ringfeder Vietnam), Laos, Cambodia, Philippines and Bangladesh. We provide genuine transmission shaft coupling solutions that meet international standards, helping to optimize the performance and durability of machinery systems.
– Ringfeder Germany – the world’s leading brand in transmission and shock absorber solutions, with over 100 years of history of creation and innovation. Founded in 1922, with the first product “friction springs“, Ringfeder has become a global symbol of prestige for quality and reliability.
– Ringfeder Flexible Couplings TNB BH products supplied by Dai Hong Phat are 100% genuine imported, with full CO/CQ, meeting international quality standards.

An authorized distributor for Ringfeder product in Vietnam Certificate of Dai Hong Phat Corp is an authorized representative of Ringfeder Germany in Vietnam

See more: Other types of Ringfeder flexible shaft couplings

2. Characteristics of Flexible Couplings TNB BH

– Elastomer Jaw couplings TNB BH are manufactured by Ringfeder/Germany.
– Rubber is loaded when compressed.
– Rubber can be replaced without moving the connected machinery.
– Shock-absorbing rubber is available in various hardness levels.
– Suitable for temperatures from -30°C to +100°C.
– Outer diameter up to 900 mm.
– Maximum bore diameter up to 360 mm.
– Torque up to T Kn = 260,000 Nm / T Kmax = 780,000 Nm.
– Speed up to n max = 4,100 rpm.

Reference: Ringfeder Rubber Elements TNB Specifications

FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT:
SALES DEPARTMENT
HOTLINE: (+84) 906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN

3. Functions of Flexible Couplings TNB BH

Elastomer Jaw Couplings TNB BH is prioritized for use in steel mills, steel rolling mills, cement plants, in mining operations, and construction machinery, such as excavators and tunnel drilling machines, as well as in offshore technology.
This coupling compensates for angular, radial, and axial shaft misalignment. The rubber damping rings are loaded in compression, and the rings can be replaced without having to move the connected machinery. Rubber damping rings are available in various degrees of hardness.

See article: Comparison of 5 types of mechanical shaft couplings in industry

4. Technical of Elastomer Jaw Couplings TNB BH

Elastomer Jaw Couplings TNB BH transmits torque through resilient rubber damping rings that bear the load during compression. These damping rubbers are made of synthetic rubber (Pb) or polyurethane (Vk), such as a standard VkW. These resilient damping rings reduce shock, absorb vibrations, and torsional oscillations, with the ability to resist oil. They are suitable for use in all rotational directions and mounting positions. Replacement of the damping rubber rings is easy without the need to move the connected machinery along the shaft axis. The resilient materials used operate reliably within a temperature range of approximately -30°C to +100°C.

Technical of Ringfeder TNB BH Coupling:

Catalogue Ringfeder TNB BH Coupling				Installation Ringfeder TNB BH Coupling

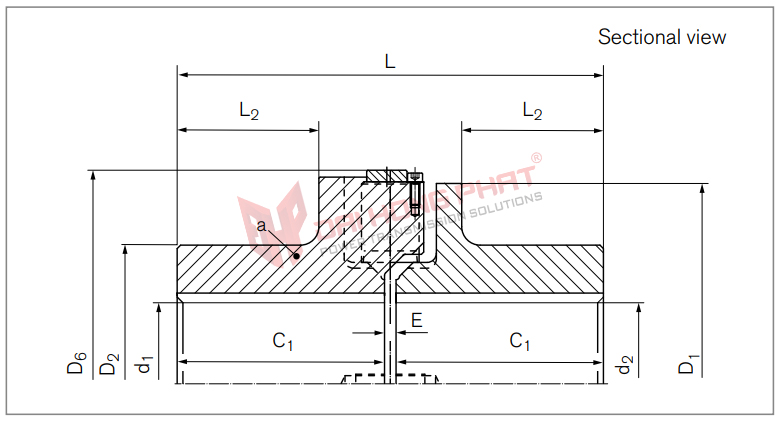

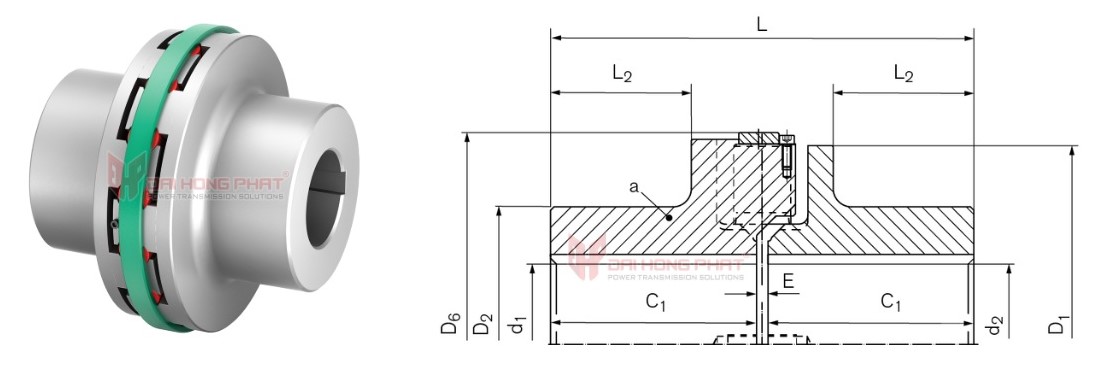

*Technical drawing of Elastomer Jaw Coupling TNB BH*

Technical specifications of Ringfeder TNB BH couplings:

Coupling Model	Identifier	T_KN	ⁿmax	Dimensions [mm]					Gw_ub[kg]
Coupling Model	Identifier	Nm	1/min	^d1kmax	^d2kmax	D₁	D₂	L	Gw_ub[kg]
BH-300	WB0130	8600	3300	135	135	300	210	330	101
BH-350	WB0135	15000	2800	160	160	350	240	370	145
BH-400	WB0140	23000	2450	180	180	400	270	406	210
BH-450	WB0145	31000	2200	200	200	450	300	446	275
BH-500	WB0150	41200	2000	220	220	500	330	487	371
BH-550	WB0155	66000	1800	240	240	550	350	527	456
BH-600	WB0160	80000	1650	250	250	600	375	530	565
BH-650	WB0165	94000	1500	260	260	650	400	587	705
BH-700	WB0170	130000	1400	300	300	700	450	668	985
BH-800	WB0180	180000	1200	330	330	800	490	728	1285
BH-900	WB0190	260000	1100	360	360	900	540	828	1790
