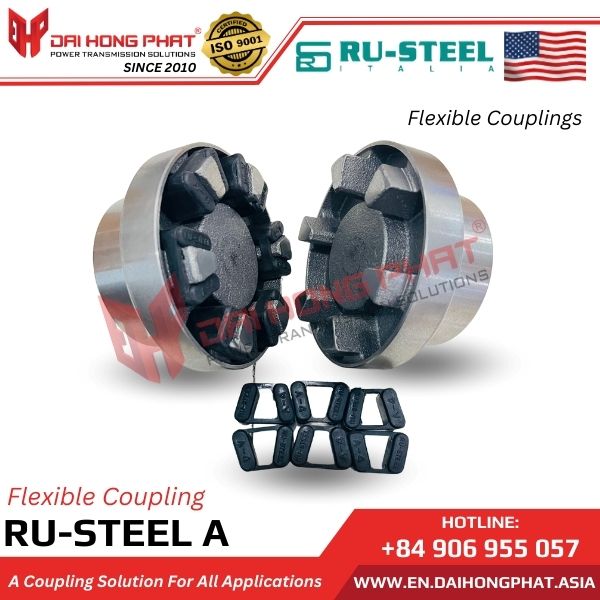

RU-STEEL FLEXIBLE COUPLING TYPE A

The RU-STEEL type A elastic coupling is designed with two equal tooth rings. These teeth mesh with each other thanks to alternating elastic blocks with high resistance and operate only by compression. The tooth rings are completely symmetrical during transmission, allowing the coupling to operate inflexibly in the event of damage to the rubber gasket. This ensures that the coupled machinery is not seriously affected and can continue to operate for a short time without damage.

Description

5/5 - (1 vote)

1. Why choose Dai Hong Phat as a supplier for RU-STEEL flexible coupling type A?

RU-STEEL specializes in designing and manufacturing transmission couplings with experience accumulated since the late 50s, creating competitive products and affirming its presence in the domestic and international markets. RU-STEEL produces a full range of transmission couplings from Nm 3 to 300,000, meeting all customer requirements. Our team of engineers is always committed to perfecting the product to ensure the highest functionality and longevity. Thanks to continuous production improvement, careful marketing and a quality distribution and service network, RU-STEEL always meets the needs of loyal customers.

Outstanding benefits when customers buy RU-STEEL shaft coupling products at Dai Hong Phat.

– Buy RU-STEEL couplings imported directly from the manufacturer.
– Risk protection, anti-counterfeiting.
– Provide full CO / CQ certificates for customers.
– Goods are always available in large quantities, fast delivery.
– Provide product technical drawings for customers (upon request).
– A team of advanced technical experts provides dedicated support.
– Free consultation to optimize solutions for your factory.
– Provide genuine Catalogues for products.
– Free conversion of digital information, dimensions on request.
– Nationwide delivery 24/7, helping you minimize machine downtime.
– Have a professional processing workshop according to your specific requirements.

2. Dai Hong Phat Corp. is a representative specializing in providing all RU-STEEL products throughout Vietnam:

In Vietnam, Dai Hong Phat is proud to be a reputable distributor for shaft locking devices and shaft couplings from many famous brands such as Westcar, KTR. Especially RU-STEEL – the leading manufacturer of transmission couplings in Italy. With a diverse and rich product portfolio, we offer many optimal choices for customers.

3. Features of RU-STEEL flexible coupling type A:

– Manufacturer: RU-STEEL/ Italy.
– RU-STEEL type A is made of G250 cast iron with 80Sh oil-resistant rubber plugs.
– It provides elastic transmission by absorbing any shock or vibration.
– There are 13 different sizes and lengths.
– Working temperature from -30 °C to + 120 °C.
– Outside diameter D from 50 – 235mm.
– Maximum bore diameter d up to 140 mm.
– Torque Tkn from 96 – 11900 Nm.
– Maximum rotation speed: 8000 rpm.

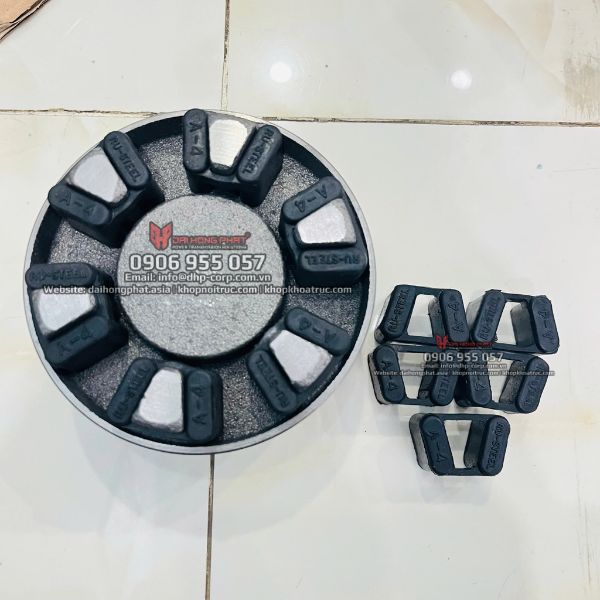

ru-steel-elastic-coupling-type-a

FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT:
SALES DEPARTMENT
HOTLINE: (+84) 0906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN

4. Function and application of RU-STEEL type A coupling:

RU-STEEL elastic couplings are made of two equal tooth rings, which mesh in sequence by alternating high-resistance elastic blocks, which operate only by compression. The tooth rings are completely equal and symmetrical in transmission and allow for inflexible coupling in the event of rubber gasket failure, not for long periods of time, without causing damage to the coupled machines.
RU-STEEL Type A couplings have many applications in various industries:
– Pumps: Ensure efficient operation in water pumping systems, wastewater treatment and chemical pumping.
– Compressors: Connect and transmit force between the motor and the compressor, suitable for air compression and refrigeration.
– Cement plants: Ensure quality and efficiency of cement production, withstand large loads and are durable.

5. Technical parameters of RU-STEEL type A coupling:

Catalogue Elastomer RU-STEEL flexible coupling type A				Installation Elastomer RU-STEEL flexible coupling type A

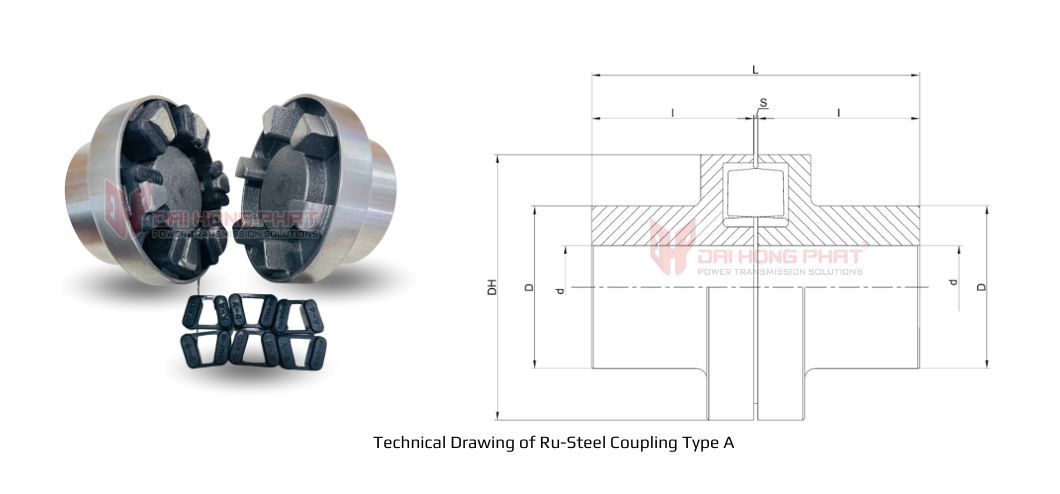

technical-drawing-of-ru-steel-type-a-coupling

Type	T_kn [Nm]	Bore d [mm]		Dimensions [mm]			RPM max	Weight [kg]
Type	T_kn [Nm]	min	max	D	L	I	RPM max	Weight [kg]
A 21	96	–	25	50	62	30	8000	1.4
A 31	153	12	38	65	72	35	8000	2.9
A 41	334	18	45	80	112	55	6000	5.4
A 42	334	18	50	95	122	60	6000	7.1
A 51	491	22	55	105	133	65	5000	10
A 61	1050	25	65	110	143	70	4000	15
A 62	1050	30	75	130	163	80	4000	19
A 71	1980	35	80	145	183	90	3000	28
A 81	2659	35	90	155	223	110	2800	40
A 82	2659	40	100	170	243	120	2800	46
A 91	4000	45	105	180	264	130	2550	69
A 101	7000	50	120	210	305	150	1950	89
A 111	11900	60	140	235	345	170	1800	133
