1. Dai Hong Phat Corp. is the exclusive representative specialized in supplying all PTI Grid Coupling products throughout Vietnam:
PTI Coupling – Korea, with over 30 years of establishment, has significantly contributed to the development of the AC motor industry as a member of the global community. PTI has researched and developed couplings beyond the concept of “couplings for mere power transmission” to create high-quality, durable couplings, enhancing the effective productivity protection of related machinery. In this era of rapid technological advancement, PTI is striving to lead the trend by providing superior-quality products through the collective efforts of all PT Couplings staff.
Dai Hong Phat Company specializes in supplying power transmission equipment from major brands such as Ringfeder, JAC, Westcar, KTR, etc. In addition, Dai Hong Phat also collaborates with PTI Coupling as the official distributor, providing 100% genuine Grid Coupling Type DHP T31/T35 throughout Vietnam as the authorized PTI Distributor in Vietnam.
2. Characteristics of Grid Coupling Type DHP T31/T35:
– Grid Coupling Type DHP T31/T35 is manufactured by PTI Coupling/Korea
– Easy assembly, installation, and repair
– Machined shaft hole diameter: 30mm – 361mm.
– Torque range: 52Nm – 186425Nm.
– Rotational speed: 1100 revolutions per minute (rpm) – 6000 rpm.
– Requires less frequent inspection and maintenance
– Flexible load transformation, accommodating significant shaft misalignment.
View more product “Grid Coupling Type DHP T10“
| FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT: SALES DEPARTMENT HOTLINE: +84906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN |
3. Applications of the Grid Coupling Type DHP T31/T35:
The Grid Coupling Type DHP T31/T35 is versatile and finds applications in various industries and machinery, including industrial machinery, mining equipment, material handling, pulp and paper processing, steel mills, power generation, chemical processing, food and beverage production, water and wastewater treatment, and renewable energy. It provides reliable power transmission and torque transfer, ensuring smooth operation across different sectors.

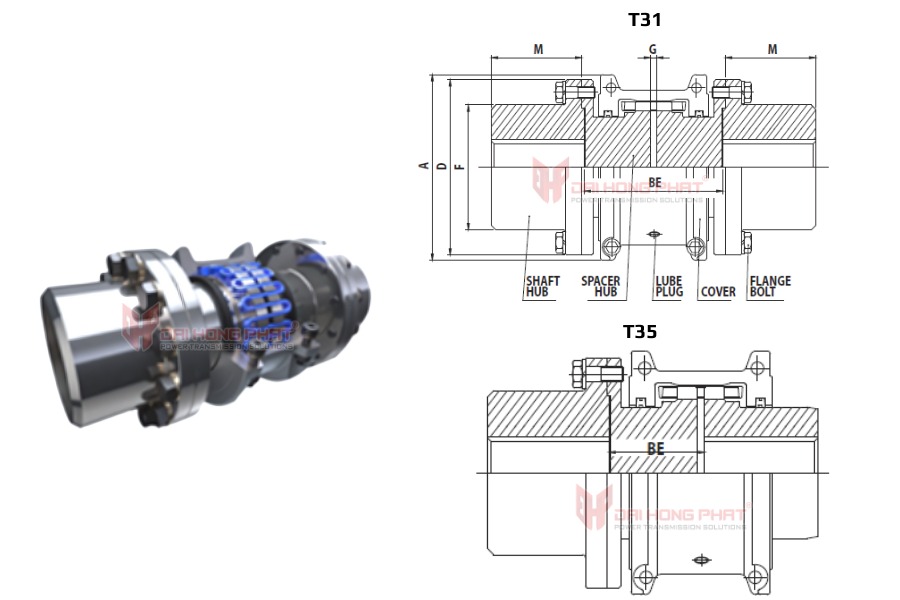

4. Technical drawing of the Grid Coupling Type DHP T31/T35:
| Catalogue DHP T31/T35 |
Installation DHP T31/T35 |
||||||

|
Model |
Torque |
Dimensions (mm) |
|||||
|
dMax. |
A |
B |
BEmin |
BEmax |
N |
||
|
DHP 1020P (1020 T31) |
49 |
36 |
102 |
35 |
45 |
203 |
52 |
|
DHP 1030P (1030 T31) |
138 |
44 |
111 |
41 |
45 |
216 |
59 |
|
DHP 1040P (1040 T31) |
230 |
57 |
118 |
54 |
45 |
216 |
78 |
|
DHP 1050P (1050 T31) |
403 |
64 |
138 |
60 |
57 |
216 |
87 |
|
DHP 1060P (1060 T31) |
634 |
79 |
151 |
73 |
64 |
330 |
103 |
|
DHP 1070P (1070 T31) |
922 |
83 |
162 |
79 |
64 |
330 |
109 |
|
DHP 1080P (1080 T31) |
1,901 |
95 |
194 |
89 |
93 |
406 |
122 |
|
DHP 1090P (1090 T31) |
3,456 |
108 |
213 |
102 |
93 |
406 |
142 |
|
DHP 1100P (1100 T31) |
5,818 |
127 |
250 |
90 |
103 |
406 |
171 |
|
DHP 1110P (1110 T31) |
8,641 |
149 |
270 |
104 |
106 |
406 |
196 |
|
DHP 1120P (1120 T31) |
12,674 |
165 |
308 |
119 |
125 |
406 |
225 |
|
DHP 1130P (1130 T31) |
18,434 |
178 |
346 |
135 |
130 |
406 |
238 |
|
DHP 1140P (1140 T31) |
26,499 |
203 |
384 |
152 |
135 |
406 |
266 |
|
DHP 1150P (1150 T31) |
36,869 |
254 |
453 |
173 |
175 |
371 |
334 |
|
DHP 1160P (1160 T31) |
51,847 |
279 |
501 |
186 |
180 |
406 |
366 |
|
DHP 1170P (1170 T31) |
69,129 |
330 |
566 |
220 |
194 |
445 |
425 |
|
DHP 1180P (1180 T31) |
95,858 |
330 |
630 |
249 |
202 |
490 |
451 |
|
DHP 1190P (1190 T31) |
126,736 |
362 |
676 |
276 |
207 |
530 |
508 |
|
DHP 1200P (1200 T31) |
172,822 |
381 |
757 |
305 |
224 |
575 |
530 |
5. Why choose Dai Hong Phat Corp. as your supplier for Grid Couplings?
– Our customers will have the opportunity to purchase genuine Grid Couplings imported directly from PTI Coupling Korea.
– Dai Hong Phat will safeguard you against risks by providing genuine Grid Coupling Type DHP T31/T35 products and protecting you from counterfeit items.
– We ensure that all necessary CO/CQ documentation for DHP T31/35 will be provided to our customers.
– With a readily available stock of PTI Grid Couplings, Dai Hong Phat guarantees swift delivery to our customers.
– Technical drawings of the shaft couplings will be provided upon request to our customers.
– We maintain a highly skilled team of technical specialists to assist our customers with any inquiries or concerns they may have.
– Free consultation services are offered to optimize solutions for our customers’ plants with genuine Lifexmax Grid Couplings products from the PTI Coupling brand.
– Our customers will receive the official PTC shaft coupling catalogue from Dai Hong Phat.
– We offer complimentary customization of technical specifications and dimensions for Taper Grid Coupling products according to our customers’ requirements.
– Our nationwide 24/7 delivery service ensures minimal downtime for our customers’ machinery.
– Dai Hong Phat boasts a professional workshop for precision machining tailored to our customers’ specific requests.
