Let’s learn about KBK Encoder Couplings KB1P with Dai Hong Phat through the following article!
1. About Dai Hong Phat – KBK Germany
– Dai Hong Phat Corp is the official authorized representative of KBK Germany in Vietnam. We provide genuine transmission shaft coupling solutions that meet international standards, helping to optimize the performance and durability of machinery systems.
– KBK Antriebstechnik was founded in 2003 in Germany, specializing in the production of precision mechanical transmission solutions. With more than 20 years of development, KBK is famous for its high technical quality and flexible customization. Main products include couplings such as bellows, elastomer, safety, Oldham, magnetic couplings, along with shaft-hub connections and clamping rings serving many mechanical and automation industries.
– The KBK Encoder Couplings KB1P product supplied by Dai Hong Phat is 100% genuine imported, with full CO/CQ, meeting international quality standards.
View more: Other KBK encoder coupling lines
2. Characteristics of KBK Encoder Couplings KB1P
– Manufacturer brand: KBK/Germany.
– Compact and lightweight design.
– Excellent rigidity.
– Allows for high shaft misalignment, with vertical plug-in capability.
– Features stainless steel bellows.
– Shaft diameter ranges from 3-25 mm.
– Torque range: 0.56-10 Nm.
View more product: KBK Encoder Couplings KB1
| FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT: SALES DEPARTMENT HOTLINE: +84906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN |
3. Applications of KBK Encoder Couplings KB1P
The shaft coupling KB1P is the optimal solution for positioning applications and high torsional moment transmission in compact installations. The metal bellows coupling KBK KB1P product is utilized for encoders, servo motors, in packaging machines, CNC machines, machine tools, and specialized machinery.
View article: Top 5+ shaft couplings for machine manufacturing

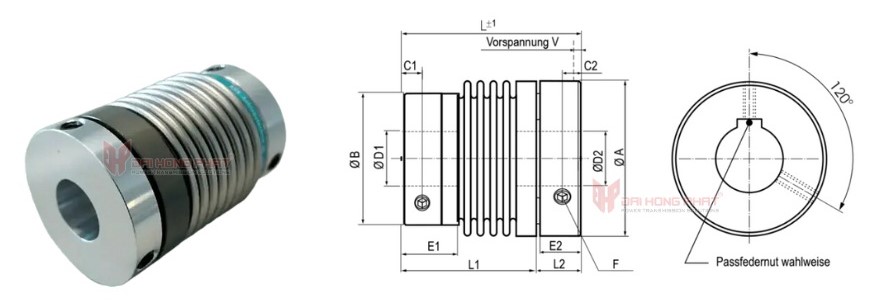

3. Technical specifications of the Metal Bellows Coupling KBK KB1P
| Catalogue KBK KB1P Coupling |
Installation KBK KB1P Coupling |
||||||
 |
|
| Size | Torque TKN (Nm) |
Dimensions (mm) | Masse (g) | |||||||
| L | Ø A | Ø B | D1 | D2 | C1 | C2 | F | |||
| 5 | 0.5 | 22 | 15.5 | 13.5 | 3-8 | 3-8 | 2.0 | 2.0 | 1xM3 | 5.9 |
| 26 | 6.6 | |||||||||
| 30 | 0.5 | 7.4 | ||||||||
| 10 | 1 | 24 | 16 | 14 | 3-8 | 3-8 | 2 | 2 | 1xM3 | 8.1 |
| 28 | 8.8 | |||||||||
| 32 | 0.5 | 10.3 | ||||||||
| 15 | 1.5 | 28 | 20.0 | 19.0 | 3-12 | 3-10 | 3 | 2.5 | 2xM4 | 14.7 |
| 32 | 8# | 7# | 1.5 | 17.6 | ||||||
| 20 | 2 | 27 | 25 | 21.5 | 3-14 | 3-14 | 3 | 2.5 | 2xM4 | 16.2 |
| 37 | 10# | 10# | 1.5 | 22 | ||||||
| 45 | 4.5 | 44 | 32.5 | 29 | 6-19 | 6-16 | 4 | 4 | 2xM6 | 64.7 |
| 52 | 13# | 11# | 3 | 73.5 | ||||||
| 100 | 10 | 50 | 40.5 | 36 | 6-24 | 6-25 | 4 | 4 | 2xM6 | 88.2 |
| 60 | 17# | 18# | 3 | 116.1 | ||||||
| Size | Dimensions (mm) | |||||
| E1 | E2 | L1 | L2 | L3 | V | |
| 5 | 6 | 4 | 17 | 5 | 9 | 0.5 |
| 21 | ||||||
| 25 | ||||||
| 10 | 6 | 4 | 19 | 5 | 9 | 0.5 |
| 23 | ||||||
| 27 | ||||||
| 15 | 8 | 5 | 22 | 6 | 11 | 0.5 |
| 26 | ||||||
| 20 | 6 | 5 | 21 | 6 | 11 | 0.5 |
| 27 | ||||||
| 31 | ||||||
| 45 | 12 | 8 | 35 | 9 | 16 | 0.5 |
| 43 | ||||||
| 100 | 12 | 8 | 41 | 9 | 17 | 1 |
| 51 | ||||||
5. Why choose Dai Hong Phat Corp?
– 100% genuine products imported directly from KBK Germany.
– Protect customers from counterfeit goods and always provide full CO/CQ documents.
– Goods in stock, fast delivery nationwide 24/7.
– Free technical consultation and support for drawings, catalogs.
– Refined processing workshop to meet individual requirements.
—————-/—————–/—————–/—————–/—————–
