MAX DYNAMIC COUPLING WITH TAPER LOCK

1. Dai Hong Phat Corp. is the exclusive representative specializing in supplying all Max Dynamic Couplings throughout Vietnam:

– Established in 1991, Woojin is a company specialized in manufacturing polyurethane couplings and has been exported to over 28 countries. They have been widely accepted in foreign markets due to obtaining CE ATEX certification (II2GD c T5).
– Dai Hong Phat has partnered with Woojin, a manufacturer striving to provide the best quality products and contribute to a cleaner global environment.
– Dai Hong Phat Company is the importer and distributor of all genuine Max Dynamic with Taper-Lock couplings from the Woojin brand in Vietnam.
– With over 15 years of credibility, Dai Hong Phat ensures customers can purchase 100% genuine Max Dynamic shaft couplings with high quality and the most competitive prices on the market.

2. Characteristics of the Max Dynamic Coupling With Taper-Lock:

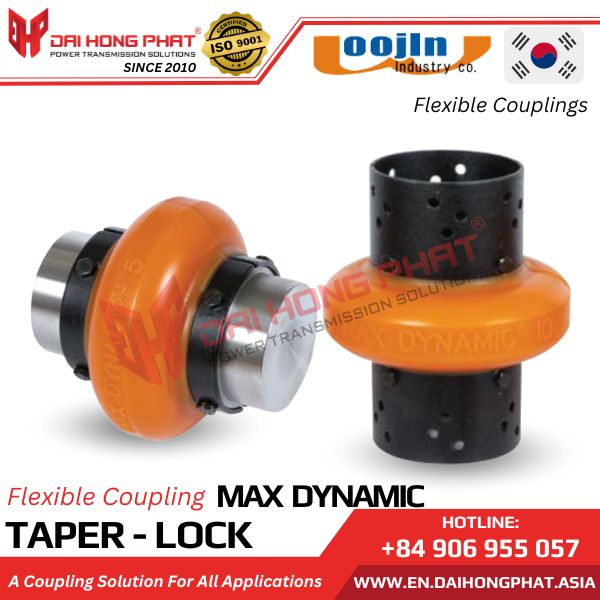

– Max Dynamic Coupling With Taper-Lock is manufactured by Woojin/Korea.
– The cushioning ring material for the coupling is made of Polyurethane.
– It has excellent resistance to water and chemicals, with high elasticity.
– The coupling allows for simple assembly and disassembly, without the need for lubricating oil or grease.
– The coupling comes in 12 different sizes: HTL-3, HTL-4, HTL-5, HTL-10, HTL-20, HTL-30, HTL-40, HTL-40, HTL-60, HTL-70, HTL-80, HTL-100, HTL-120.
– Torque range: 41.20Nm – 4463.55Nm.
– Maximum bore diameter: 25mm – 100mm.
– Rotation speed: 0.0043 – 0.467 revolutions per minute.

View more product “Max Dynamic HT Couplings“

3. Applications of the Max Dynamic Coupling With Taper-Lock:

Max Dynamic Couplings Taper-Lock finds applications in various industries and machinery where reliable power transmission and vibration damping are essential. Some common applications include:
– Agitator
– Blower
– Compressor
– Conveyors
– Cranes & Hoists
– Elevators
– Fans
– Generators
– Pumps
– Brewery & distilling
– Food industry
– Lumber industry
– Pulp & paper mill
– Rubber industry
– Steel industry
– Textile mills
– Aggregate processing cement

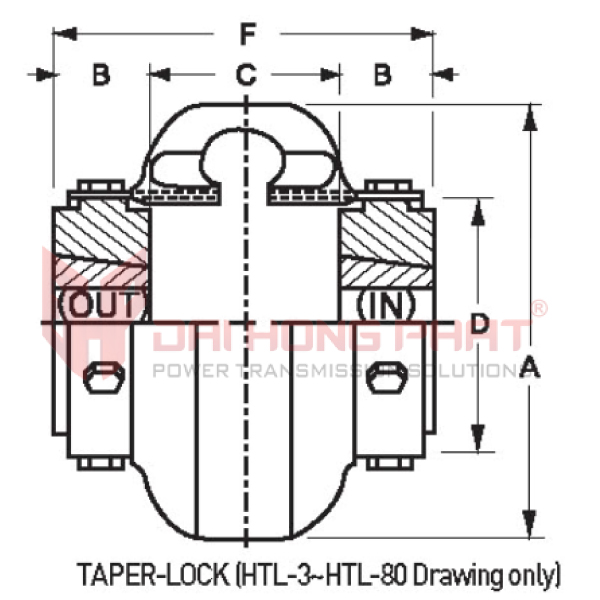

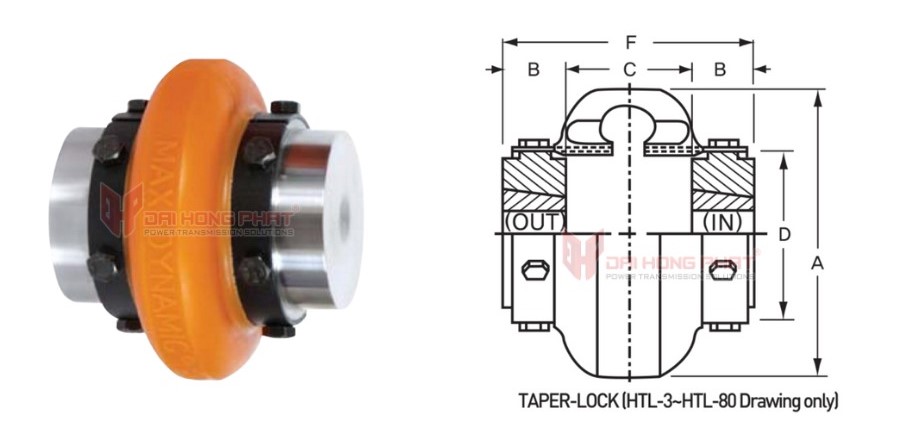

4. Technical of the Max Dynamic Coupling With Taper-Lock:

Catalogue Max Dynamic with Taper Lock				Installation Max Dynamic with Taper Lock

5. Why choose Dai Hong Phat as the supplier for Max Dynamic couplings?

– You will be able to purchase the Max Dynamic Coupling With Taper-Lock directly imported by Dai Hong Phat, ensuring 100% authenticity.
– Rest assured, Dai Hong Phat will safeguard you against risks by ensuring the authenticity of the Max Dynamic with Taper-Lock, protecting you from counterfeit products.
– Dai Hong Phat provides comprehensive CO/CQ documentation for the Max Dynamic shaft couplings supplied by our company.
– Our stock of shaft couplings is always readily available in Dai Hong Phat’s warehouse, ensuring prompt delivery to our customers.
– Dai Hong Phat will provide technical drawings of the Max Dynamic Coupling upon request from customers.
– We offer dedicated support and technical advice to our customers regarding shaft couplings, facilitated by our highly skilled technical team.
– Dai Hong Phat is always ready to offer free consultations for optimal solutions tailored to your plant’s needs.
– We supply authentic Max Dynamic coupling catalogs from the manufacturer for our customers’ reference.
– Customers will receive complimentary customization of technical specifications and sizes for Max DynamicTire Coupling according to their requirements.
– Our nationwide 24/7 delivery service ensures minimized downtime for your machinery, providing peace of mind during operation.
– Dai Hong Phat boasts a professional machining workshop for customized adjustments according to our customers’ specific requirements.
