KTR OIL-AIR COOLER OAC

Let’s learn about KTR Oil-air cooler OAC with Dai Hong Phat, through the following article!

1. About Dai Hong Phat Corp- KTR Germany

– Dai Hong Phat Corp is the official authorized representative of KTR Germany in Vietnam (KTR Vietnam). We provide genuine transmission shaft coupling solutions, meeting international standards, helping to optimize the performance and durability of machinery systems.
– KTR was established in 1959 in Germany. KTR is an abbreviation of
K – Kupplung (Coupling) | T – Technology (Technology) | R – Rheine (Region)
– KTR products: Rotex shaft coupling, Clampex shaft locking joint, hydraulic brake, …
– KTR Oil-air cooler OAC products supplied by Dai Hong Phat are 100% genuine imported, with full CO/CQ, meeting international quality standards.

Certificate of Dai Hong Phat as Authorized Distributor of KTR Germany in Vietnam

View more: Other KTR Cooling Systems

2. Characteristics of KTR Oil-air cooler OAC

– Manufacturer brand: KTR Germany
– High-performance cooling for hydraulic oil, gearbox oil, lubricating oil, and water-glycol mixtures (minimum 40% glycol)
– ATEX explosion-proof design for flammable gas and dust environments.

2.1. Key Features

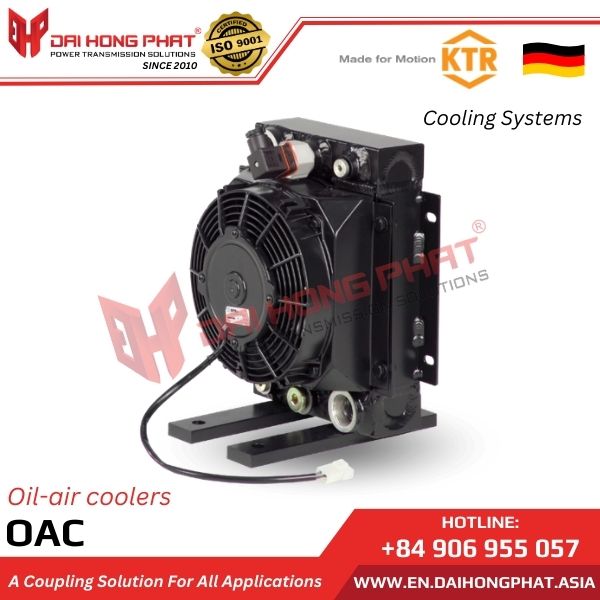

– The KTR Oil-air cooler OAC is a standard, compact, and high-performance model.
– Standard fan drive systems include 230/400V motors, 12V/24V fans, and hydraulic fan drives.
– Electric motor and 60Hz versions are also available.
– Cooling capacity: 2 – 350kW

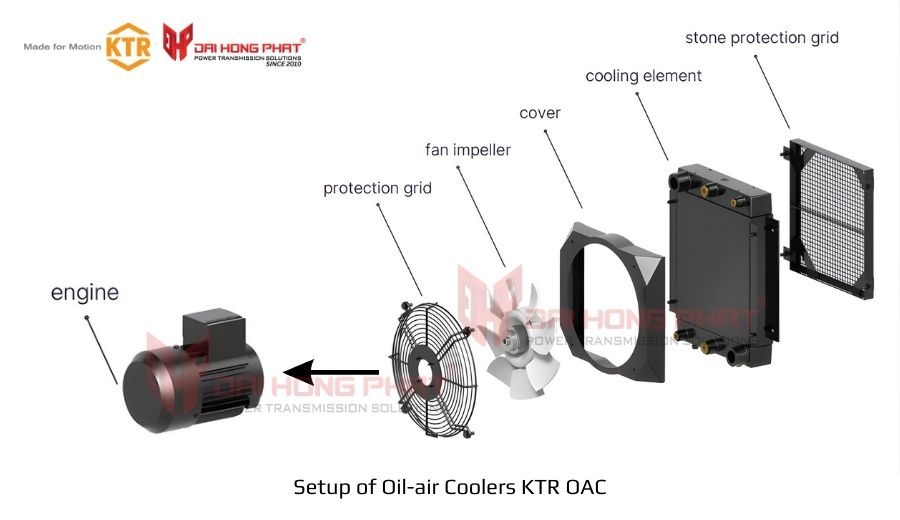

– Construction:
+ Aluminum plate & bar heat exchanger core, industrial-grade black RAL 9005 painted fins
+ Black RAL 9005 painted steel fan housing
+ Polyamide (PA) fan blades
+ Black RAL 9005 painted steel fan guard
+ 12/24V IP68, 230/400V, 400/690V, IP55 fan
+ Optional hydraulic fan drive

– Spare parts: Thermal bypass valve, OTV oil thermostat valve, Protective grille, TSC thermal switch, Fan speed control
– Multiple fan drive options:
+ 12V/24V DC electric fan
+ 230/400V or 460V AC electric fan
+ Hydraulically driven fan

2.2. Heat Exchange Structure

– Hot oil from the hydraulic system or gearbox is pumped into the heat exchanger core of the cooler.
– The aluminum heat exchanger core consists of numerous tubes and fins to increase the heat transfer surface area.
– A cooling fan creates a forced airflow through the fins.
– Heat from the oil is transferred through the tube walls to the fins.
– The air carries the heat away from the environment, reducing the oil temperature before it returns to the system.

View product specifications: KTR Oil-air cooler OPC
View product specifications: KTR Oil-air cooler PIK
View product specifications: KTR Oil-air cooler OPC2

3. Applications of KTR Oil-air cooler OAC

KTR Oil-air cooler OAC are used for cooling in:
– Wind energy: Wind turbines, local power grids
– Industrial pumps
– Hydraulic systems: Power unit manufacturing, plastics processing industry
– Integrated drive technology: Industrial gears, steel mills
– Shipbuilding/Marine: Cargo ships, yachts

View also the article: Oil Cooler Calculation Guide for Engineers

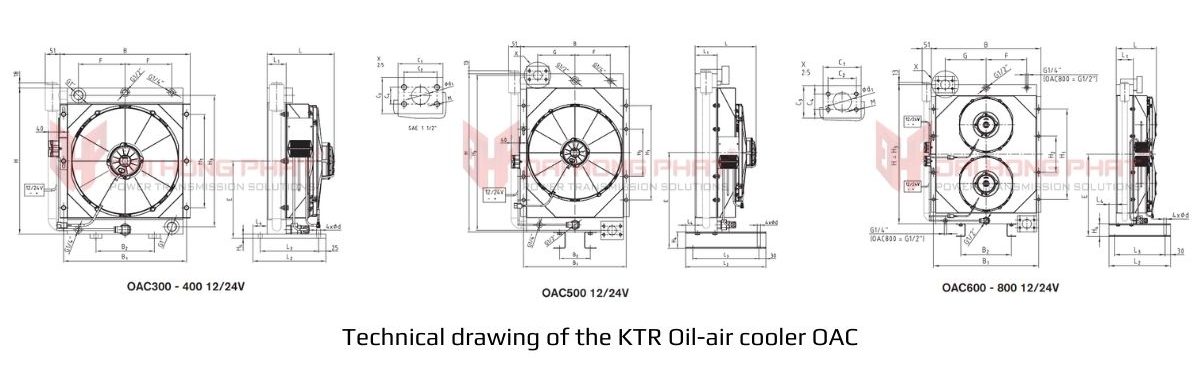

4. Technical specifications of KTR Oil-air cooler OAC

Catalogue KTR Oil-air cooler OAC	Installation Instruction KTR Oil-air cooler OAC
