Let’s learn about KTR Flexible Couplings Rotex DKM with Dai Hong Phat, through the following article!
1. About Dai Hong Phat Corp- KTR Germany
– Dai Hong Phat Corp is the official authorized representative of KTR Germany in Vietnam (KTR Vietnam). We provide genuine transmission shaft coupling solutions, meeting international standards, helping to optimize the performance and durability of machinery systems.
– KTR was established in 1959 in Germany. KTR is an abbreviation of
K – Kupplung (Coupling) | T – Technology (Technology) | R – Rheine (Region)
– KTR products: Rotex shaft coupling, Clampex shaft locking joint, hydraulic brake, …
– KTR Flexible Couplings Rotex DKM products supplied by Dai Hong Phat are 100% genuine imported, with full CO/CQ, meeting international quality standards.
Certificate of Dai Hong Phat as Authorized Distributor of KTR Germany in Vietnam
See more: Other KTR Flexible Couplings
2. Features of KTR Flexible Couplings Rotex DKM
– Manufacturer: KTR/Germany.
– Structure: the coupling consists of 2 aluminum or steel shafts (hubs), 2 shock absorbers (spiders). Made of T-PUR material, in the middle there is an aluminum expansion jaw (spacer).
– Components have low restoring force.
– Good damping properties due to the double arrangement of the spiders.
– Very smooth running due to lower imbalance under severe displacement.
– Good vibration reduction and no need for regular maintenance.
– Coaxial, radial, angular compensation capabilities.
– Standard release center lengths available.
– ATEX standard (according to EU directive 2014/34 / EU).
– The function of the Rotex DKM is to ensure the transmission of torsional vibration and absorb shocks caused by uneven machine operation.
– KTR Rotex DKM coupling ensures smooth transmission of vibration. Vibration reduction due to the double arrangement of the double dampers. The coupling absorbs the shocks generated by the uneven, angularly offset machines.
See more specification: KTR Elastomer Rings Rotex
See more products: KTR Flexible Couplings Rotex ZS-DKM-H
| FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT: SALES DEPARTMENT HOTLINE: +84 906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN |
3. Applications of KTR Rotex DKM coupling
The combination of KTR Rotex DKM coupling and this brake disc is used wherever holding or maintenance braking is required, for example on conveyors, generators, turbine drives, industrial fans, cranes, hoists, etc. Drives with safety concerns are better combined with Rotex hubs made of steel/GJS. Moderately demanding applications can be combined with GJL hubs.

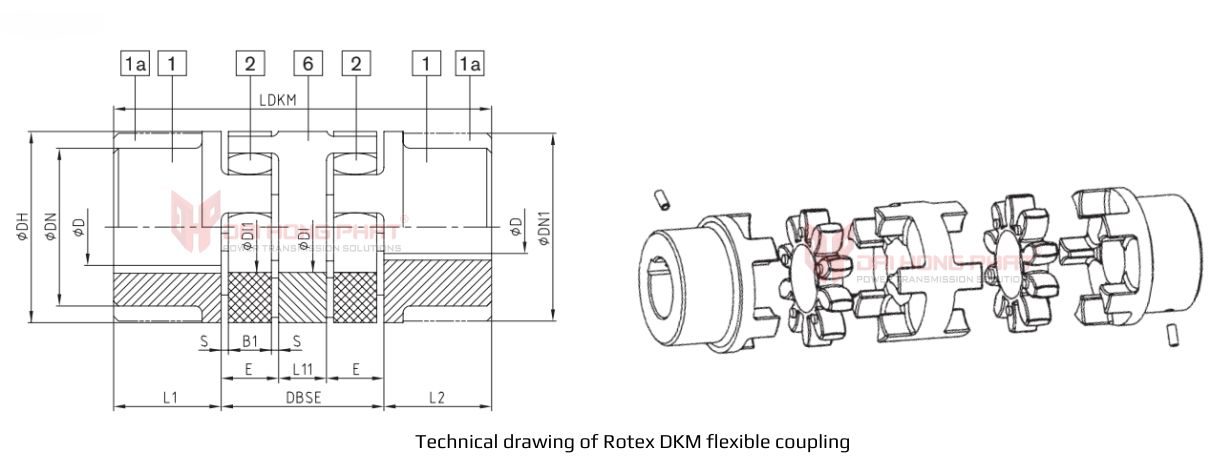

4. Technical specifications of KTR Rotex DKM coupling
| Catalogue Rotex DKM Flexible Coupling |
Installation Instruction Rotex DKM Flexible Coupling |
||||||
 |
|
| Coupling Size |
Spider (part 2) Rated torque [Nm] |
Dimensions [mm] | ||||||||
| 92 Sh-A | 98 Sh-A | DH | Dl1 | L1; L2 | L11 | E | S | B1 | LDKM | |
| DKM-19 | 10 | 17 | 40 | 18 | 25 | 10 | 16 | 2.0 | 12 | 92 |
| DKM-24 | 35 | 60 | 55 | 27 | 30 | 16 | 18 | 2.0 | 14 | 112 |
| DKM-28 | 95 | 160 | 65 | 30 | 35 | 18 | 20 | 2.5 | 15 | 128 |
| DKM-38 | 190 | 325 | 80 | 38 | 45 | 20 | 24 | 3.0 | 18 | 158 |
| DKM-42 | 265 | 450 | 95 | 46 | 50 | 22 | 26 | 3.0 | 20 | 174 |
| DKM-48 | 310 | 525 | 105 | 51 | 56 | 24 | 28 | 3.5 | 21 | 192 |
| DKM-55 | 410 | 685 | 120 | 60 | 65 | 28 | 30 | 4.0 | 22 | 218 |
| DKM-65 | 625 | 940 | 135 | 68 | 75 | 32 | 35 | 4.5 | 26 | 252 |
| DKM-75 | 1280 | 1920 | 160 | 80 | 85 | 36 | 40 | 5.0 | 30 | 286 |
| DKM-90 | 2400 | 3600 | 200 | 100 | 100 | 40 | 45 | 5.5 | 34 | 330 |
5. Why choose Dai Hong Phat Corp?
– 100% genuine products imported directly from KTR Germany.
– Protect customers from counterfeit goods and always provide full CO/CQ documents.
– Goods in stock, fast delivery nationwide 24/7.
– Free technical consultation and support for drawings, catalogs.
– Refined processing workshop to meet individual requirements.
—————-/—————–/—————–/—————–/—————–
With more than 15 years of experience, Dai Hong Phat Transmissions Shaft Couplings is proud to be a trusted partner of hundreds of domestic and foreign enterprises.
Let us accompany your sustainable development!
