1. Dai Hong Phat Corp. is the representative specializing in supplying all KBK Safety Coupling products throughout Vietnam:
– Established since 2003 and operating for over 18 years, KBK has expanded its presence in over 45 countries worldwide in the field of manufacturing industrial machinery parts.
– Dai Hong Phat has partnered with KBK, a leading European manufacturer of industrial machinery parts from Germany, renowned worldwide.
– We, at Dai Hong Phat, are the authorized importer and distributor of all 100% genuine KBK EKP Overload Coupling products in Vietnam.
– With over 15 years of commitment, Dai Hong Phat ensures that our customers purchase genuine 100% Safety Couplings KBK EKP with the highest quality and best prices in the market.

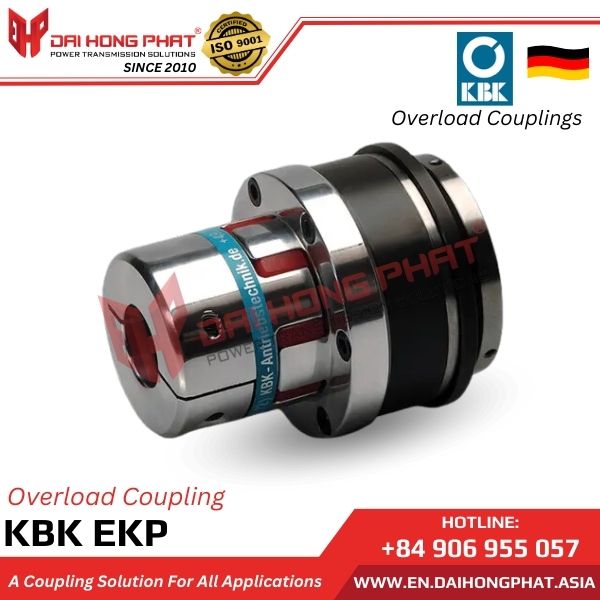

2. Characteristics of the Safety Couplings KBK EKP:
– The Safety Couplings KBK EKP are manufactured by KBK/Germany.
– Safety clutch, overload clutch with no harsh reaction.
– External tapered shape for self-centering with high clamping force and keyed cylindrical connection.
– Torque range: 3 – 500 Nm.
– Outer diameter: 49 – 129 mm.
– Bore diameter: 4 – 50 mm.
– Excellent vibration reduction, shaft misalignment compensation, and axial displacement capability.
– Properties of the coupling can be customized compared to other couplings.
– The KBK EKP Coupling is a combination of optimized torques and the ability to compensate for shaft misalignment. Sprockets, chain discs, gears, or custom parts can be directly assembled on the flange-faced coupling with high precision.
View more product “Safety Couplings KBK EKA“
| FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT: SALES DEPARTMENT HOTLINE: +84906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN |
3. Applications of the Safety Couplings KBK EKP:
Safety Couplings KBK CI is widely used in light, medium, and heavy industrial manufacturing plants and production lines, including the wood industry, cement production, industrial steel manufacturing, shipyard industry, food processing, steel coil production, and more. Its primary function is to protect against sudden power outages or overload incidents. It is particularly used for mounting chain discs, pulleys, and more.

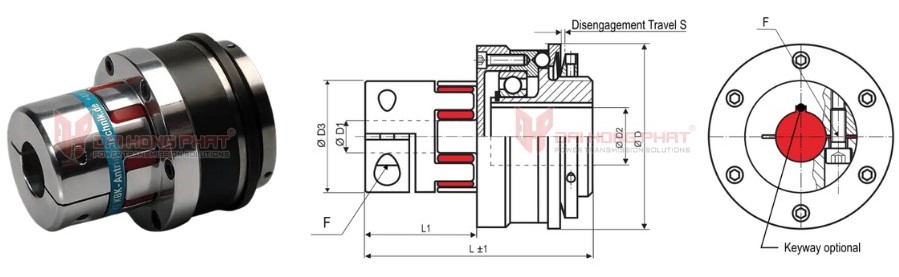

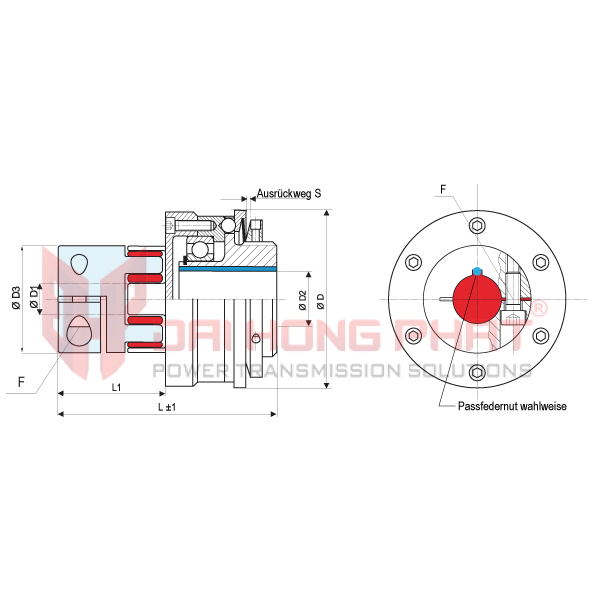

4. Technical of the Safety Couplings KBK EKP:
| Catalogue KBK EKP Overload Coupling |
Installation KBK EKP Overload Coupling |
||||||
 |
|
| Size | Dimensions (mm) | Technical Data | ||||||||||
| ØD | L | Ø D1 | Ø D2 | Ø D3 | F | L1 | max. speed (1/min) | Mass (kg) | Torque 98 Sh TKN (Nm) | Torque Range | ||
| Outer Ø | Length | Bore Size (H7) min~max |
Bore Size (H7) min~max |
Screw (ISO4762) TA (Nm) | 1 TKN (Nm) |
2 TKN (Nm) |
||||||
| -14 | 49 | 55 | 4-16 | 6-12 | 30 | M3 | 24 | 11690 | 0.21 | 12.5 | 3 – 7 |
5 – 10 |
| 1.4 | ||||||||||||
| -19 | 64 | 81 | 10-22 | 10-16 | 40 | M6/11 | 41 | 8950 | 0.65 | 17 | 5 – 15 |
10 – 30 |
| 73 | M6/11 | 33 | ||||||||||
| -24 | 79 | 98.5 | 15-32 | 15-24 | 55 | M6/11 | 50 | 7630 | 1.24 | 60 | 12 – 35 |
20 – 60 |
| 88.5 | M6/11 | 40 | ||||||||||
| -28 | 94 | 121 | 19-38 | 19-29 | 65 | M6/11 | 59 | 6030 | 2.1 | 160 | 50 – 130 |
65 – 150 |
| 107 | M8/25 | 45 | ||||||||||
| -38 | 119 | 134 | 20-45 | 20-42 | 80 | M8/25 | 67 | 4980 | 3.8 | 325 | 60 – 200 |
150 – 300 |
| 120 | M10/49 | 53 | ||||||||||
| -42 | 129 | 157 | 28-45 | 20-50 | 95 | M10 | 76 | 4440 | 5.9 | 450 | 80 – 250 |
200 – 500 |
| 70 | 76 | |||||||||||
5. Why choose Dai Hong Phat Corp. as your supplier for KBK Backlash-Free Torque Limiter?
– Our customers will have the opportunity to purchase genuine KBK shaft couplings imported directly from KBK Germany.
– Dai Hong Phat will safeguard you against risks by providing genuine KBK Safety Coupling products and protecting you from counterfeit items.
– We ensure that all necessary CO/CQ documentation for Safety Couplings KBK EKP products will be provided to our customers.
– With a readily available stock of KBK EKP Coupling, Dai Hong Phat guarantees swift delivery to our customers.
– Technical drawings of the shaft couplings will be provided upon request to our customers.
– We maintain a highly skilled team of technical specialists to assist our customers with any inquiries or concerns they may have.
– Free consultation services are offered to optimize solutions for our customers’ plants with genuine Overload Coupling products from the KBK brand.
– Our customers will receive the official KBK shaft coupling catalogue from Dai Hong Phat.
– We offer complimentary customization of technical specifications and dimensions for Backlash-Free Torque Limiter products according to our customers’ requirements.
– Our nationwide 24/7 delivery service ensures minimal downtime for our customers’ machinery.
– Dai Hong Phat boasts a professional workshop for precision machining tailored to our customers’ specific requests.
