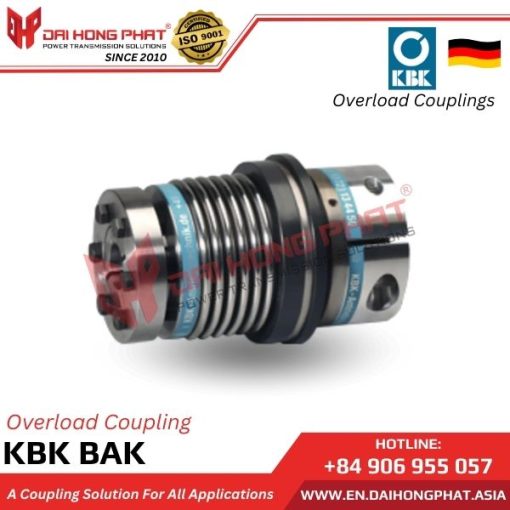

KBK BAK SAFETY COUPLINGS

The KBK BAK overload protection coupling series features a torque range of 3 – 500 Nm, an outer diameter of 49 – 129 mm, and a bore diameter of 5 – 62 mm. KBK BAK is widely used in factories and across industrial production lines, including in shipyards, food processing, and steel coil manufacturing.

Dai Hong Phat shaft coupling is the authorized representative and genuine distributor of KBK Germany in Vietnam.

Description

5/5 - (1 vote)

Let’s learn about KBK LLK Safety Couplings with Dai Hong Phat through the following article!

1. About Dai Hong Phat – KBK Germany

– Dai Hong Phat is the official authorized representative of KBK Germany in Vietnam. We provide genuine transmission shaft coupling solutions that meet international standards, helping to optimize the performance and durability of machinery systems.
– KBK Antriebstechnik was founded in 2003 in Germany, specializing in the production of precision mechanical transmission solutions. With more than 20 years of development, KBK is famous for its high technical quality and flexible customization. Main products include couplings such as bellows, elastomer, safety, Oldham, magnetic couplings, along with shaft-hub connections and clamping rings serving many mechanical and automation industries.
– The KBK LLK Overload Couplings product supplied by Dai Hong Phat is 100% genuine imported, with full CO/CQ, meeting international quality standards.

See more: Other KBK overload shaft coupling lines

2. Characteristics of the Safety Couplings KBK BAK:

– The Safety Couplings KBK BAK are manufactured by KBK/Germany
– Safe coupling and overload coupling with no reverse reaction
– Self-centering outer cone on both sides with high clamping force
– Easy-to-install clamping hub
– Torque range: 3 – 500 Nm
– Outer diameter: 49 – 129 mm
– Bore diameter: 5 – 62 mm
– Working environment: -30°C to +120°C
– The overload protection coupling is a combination of optimized torques and the ability to compensate for misalignment. Sprockets, chain discs, gears, or customized components can be directly mounted on the flange face coupling with high precision.

View more product “Safety Couplings KBK BAI“

FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT:
SALES DEPARTMENT
HOTLINE: +84906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN

3. Applications of the Safety Couplings KBK BAK:

Safety Couplings KBK BAK is widely used in light, medium, and heavy industrial manufacturing plants and production lines, including the wood industry, cement production, industrial steel manufacturing, shipyard industry, food processing, steel coil production, and more. Its primary function is to protect against sudden power outages or overload incidents. It is particularly used for mounting chain discs, pulleys, and more.

4. Technical of the Safety Couplings KBK BAK:

Catalogue KBK BAK Overload Coupling				Installation KBK BAK Overload Coupling

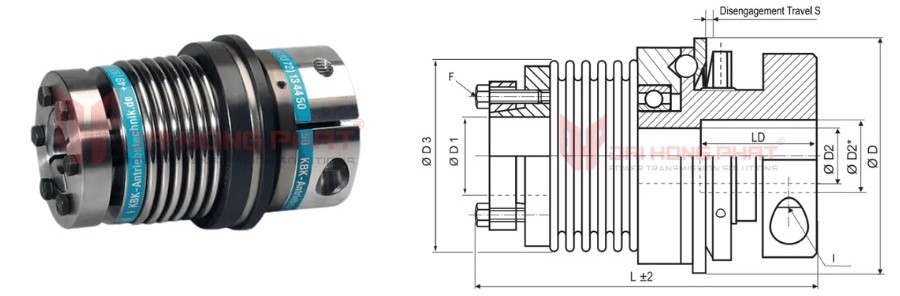

*Technical drawing of the Safety Couplings KBK BAK*

Size	Dimensions (mm)							Technical Data
	ØD	L	ØD1	ØD2	ØD3	F	I	max. speed	Mass	Torque Range
	Outer Ø	Length	Bore Size (H7) min~max	Bore Size (H7) min~max		Screw ISO4017 TA (Nm)	Screw ISO4762 TA (Nm)	(1/min)	(kg)	1 TKN (Nm)	2 TKN (Nm)
-10	49	65	5-14	6-16	40.5	M3	M4	11650	0.27	3 – 7	5 – 10
		74	10#	11#		2.1	5.1
-30	64	82	12-20	10-20	56	M5	M6	9540	0.80	5 – 15	10 – 30
		92	14#	14#		5.9	15
-60	79	104	15-32	12-28	66	M5	M8	8180	1.46	12 – 35	20 – 60
		115	24#	21#		8.7	36
-80	94	115	20-35	14-35	82	M6	M10	6220	3.30	15 – 40	30 – 80
		127	37#	37#		15	72
-150	94	115	20-35	14-35	82	M6	M10	6220	3.30	50 – 130	65 – 150
		127	37#	37#		15	72
-200	109	122	20-42	22-41	90	M6	M12	5720	3.90	30 – 90	80 – 200
		135	34#	33#		15	125
-300	119	141	25-50	30-50	110	M8	M12	5200	5.90	60 – 200	150 – 300
		152	41#	41#		25	125
-500	129	163	35-55	35-56	122	M8	M12	4470	8.50	80 – 250	200 – 500
		175	45#	46#		36	125
