Let’s learn about KBK LLK Safety Couplings with Dai Hong Phat through the following article!
1. About Dai Hong Phat – KBK Germany
– Dai Hong Phat is the official authorized representative of KBK Germany in Vietnam. We provide genuine transmission shaft coupling solutions that meet international standards, helping to optimize the performance and durability of machinery systems.
– KBK Antriebstechnik was founded in 2003 in Germany, specializing in the production of precision mechanical transmission solutions. With more than 20 years of development, KBK is famous for its high technical quality and flexible customization. Main products include couplings such as bellows, elastomer, safety, Oldham, magnetic couplings, along with shaft-hub connections and clamping rings serving many mechanical and automation industries.
– The KBK LLK Overload Couplings product supplied by Dai Hong Phat is 100% genuine imported, with full CO/CQ, meeting international quality standards.
See more: Other KBK overload shaft coupling lines

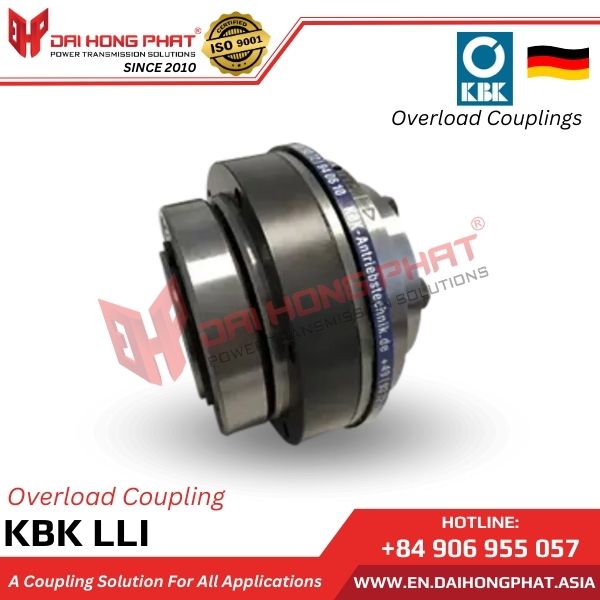

2. Characteristics of the Safety Couplings KBK LLI:
– The Safety Couplings KBK LLI are manufactured by KBK/Germany.
– Safe coupling without significant reactionary forces.
– Compact design due to internal cone shape, high clamping force.
– Torque range: 3 -1400 Nm.
– Rotational speed: 3500 – 12000 rpm.
– Operating environment: -30°C to +120°C.
– “LL” version with two shaft journals for mounting wide shafts and withstanding high radial loads.
– The overload protection coupling is a combination of optimized torques and the ability to compensate for axial misalignment. Sprockets, chain discs, gears, or customized parts can be directly mounted on the flange face coupling with high precision.
View more product “Safety Couplings KBK EPP“
| FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT: SALES DEPARTMENT HOTLINE: +84906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN |
3. Applications of the Safety Couplings KBK LLI:
Safety Couplings KBK LLI is widely used in light, medium, and heavy industrial manufacturing plants and production lines, including the wood industry, cement production, industrial steel manufacturing, shipyard industry, food processing, steel coil production, and more. Its primary function is to protect against sudden power outages or overload incidents. It is particularly used for mounting chain discs, pulleys, and more.

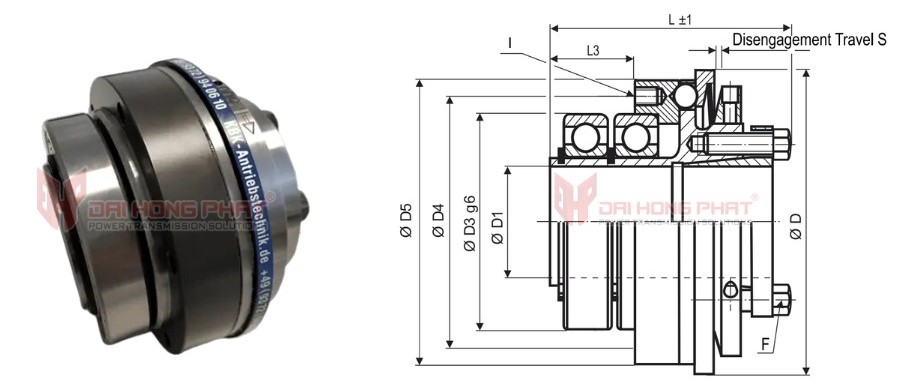

4. Technical of the Safety Couplings KBK LLI:
| Catalogue KBK LLI Overload Coupling |
Installation KBK LLI Overload Coupling |
||||||
 |
|

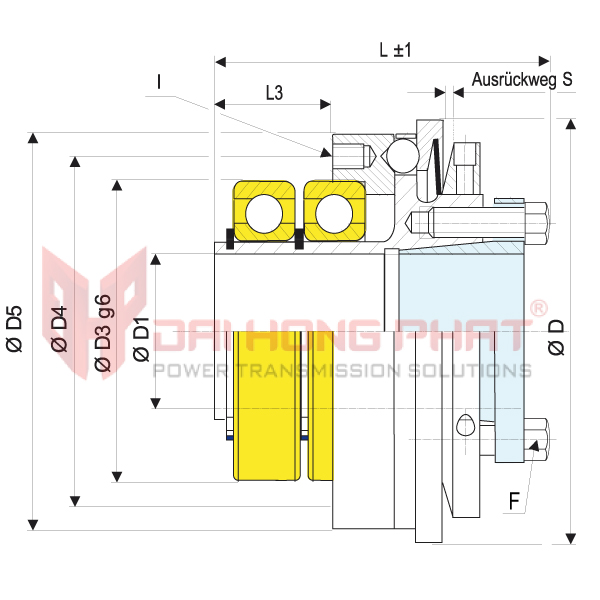

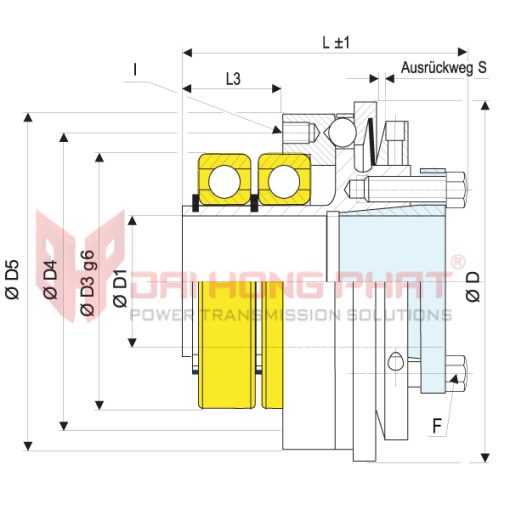

| Size | Dimensions (mm) | Technical Data | ||||||||||
| ØD | Ø D1 | Ø D3 | Ø D4 | Ø D5 | L | L3 | I | Torque Range | max. speed | Mass | ||
| Outer Ø | Bore Size (H7) min~max |
Length | 6x | 1 TKN (Nm) |
2 TKN (Nm) |
(1/min) | (kg) | |||||
| -10 | 49 | 6-14 | 37 | 42 | 47 | 46 | 15 | M3 | 3-7 | 5-10 | 12000 | 0.21 |
| 10# | ||||||||||||
| -30 | 64 | 12-20 | 47 | 53 | 60 | 58 | 20 | M4 | 5-15 | 10-30 | 9400 | 0.62 |
| 14# | ||||||||||||
| -60 | 79 | 15-25 | 62 | 69 | 75 | 75 | 26 | M5 | 13-35 | 20-65 | 7800 | 1.16 |
| 18# | ||||||||||||
| -80 | 94 | 20-35 | 68 | 80 | 90 | 76 | 27 | M6 | 15-40 | 30-80 | 6400 | 1.97 |
| 27# | ||||||||||||
| -150 | 94 | 20-35 | 68 | 80 | 90 | 76 | 27 | M6 | 50-130 | 65-150 | 6400 | 1.97 |
| 27# | ||||||||||||
| -200 | 109 | 20-40 | 80 | 90 | 105 | 85 | 28 | M6 | 30-90 | 80-200 | 5500 | 2.3 |
| 32# | ||||||||||||
| -300 | 119 | 25-45 | 90 | 102 | 115 | 95 | 31 | M8 | 60-200 | 150-300 | 5000 | 3.7 |
| 37# | ||||||||||||
| -500 | 129 | 35-55 | 100 | 112 | 125 | 95 | 31 | M8 | 80-250 | 200-500 | 4500 | 5.3 |
| 45 | ||||||||||||
| -800 | 169 | 50-70 | 110 | 125 | 165 | 133 | 38 | M12 | 260-600 | 500-900 | 3500 | 15 |
| 58# | ||||||||||||
| -1400 | 169 | 50-70 | 110 | 125 | 165 | 133 | 38 | M12 | 450-900 | 800-1400 | 3500 | 15 |
| 58# | ||||||||||||
5. Why choose Dai Hong Phat?
– 100% genuine products imported directly from KBK Germany.
– Protect customers from counterfeit goods and always provide full CO/CQ documents.
– Goods in stock, fast delivery nationwide 24/7.
– Free technical advice and support for drawings and catalogs.
– Fine-tuning workshop to meet individual requirements.
—————–/—————–/—————–/—————–/—————–
With more than 15 years of experience, Dai Hong Phat Shaft Coupling is proud to be a trusted partner of hundreds of domestic and foreign enterprises.
Let us accompany your sustainable development!
