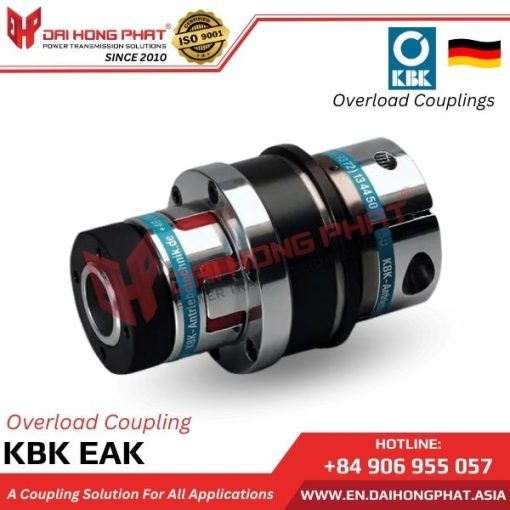

KBK EAK SAFETY COUPLING

The Safety Couplings KBK EAK combine optimized torque transmission with the ability to compensate for shaft misalignment. With its high torque transmission capacity, the overload protection coupling is suitable for use in heavy-duty applications.

Description

5/5 - (1 vote)

1. Dai Hong Phat Corp. is the representative specializing in supplying all KBK Safety Coupling products throughout Vietnam:

– Established since 2003 and operating for over 18 years, KBK has expanded its presence in over 45 countries worldwide in the field of manufacturing industrial machinery parts.
– Dai Hong Phat has partnered with KBK, a leading European manufacturer of industrial machinery parts from Germany, renowned worldwide.
– We, at Dai Hong Phat, are the authorized importer and distributor of all 100% genuine KBK EAK Overload Coupling products in Vietnam.
– With over 15 years of commitment, Dai Hong Phat ensures that our customers purchase genuine 100% Safety Couplings KBK CI with the highest quality and best prices in the market.

2. Characteristics of the Safety Couplings KBK EAK:

– The safety couplings KBK EAK are manufactured by KBK/Germany
– Safety coupling, overload protection without harsh reactions
– Outer cone design for self-centering and high clamping force, with center clamping hubs for easy assembly
– Torque range: 3 – 500 Nm
– Outer diameter: 49 – 129 mm
– Bore diameter: 6 – 62 mm
– Operating temperature: -30°C to +120°C
– Excellent vibration reduction, shaft misalignment compensation, capable of vertical shaft insertion
– Coupling properties can be customized according to application requirements
– The KBK EAK coupling combines optimized torque distribution and the ability to compensate for shaft misalignment. Spline, chain sprocket, gears, or customized components can be directly mounted on the flange face coupling with high precision.

View more product “Safety Couplings KBK EAI“

FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT:
SALES DEPARTMENT
HOTLINE: +84906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN

3. Applications of the Safety Couplings KBK EAK:

The Safety Couplings KBK EAK are widely used in industrial applications requiring reliable torque transmission and flexibility. Specifically, they are commonly applied in drive systems of manufacturing machinery, including crushers, rolling mills, conveyor systems, and heavy-duty industrial equipment. The KBK EAK coupling allows for power transmission between shafts at various angles and positions without significant power loss, optimizing system performance and ensuring stable and reliable operation of equipment in industrial environments.

View more product “Safety Couplings KBK BKI“

4. Technical of the Safety Couplings KBK EAK:

Catalogue KBK EAK Overload Couplings				Installation KBK EAK Overload Couplings

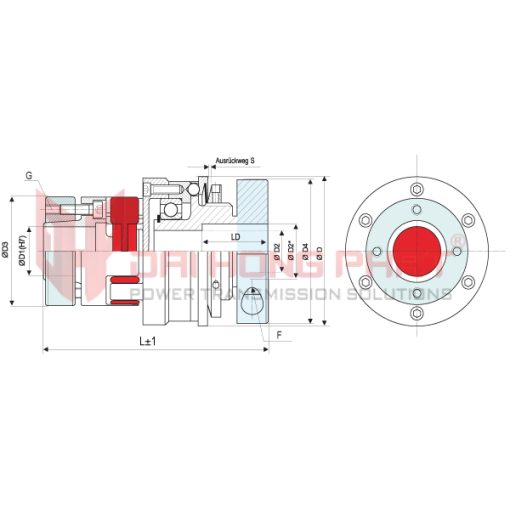

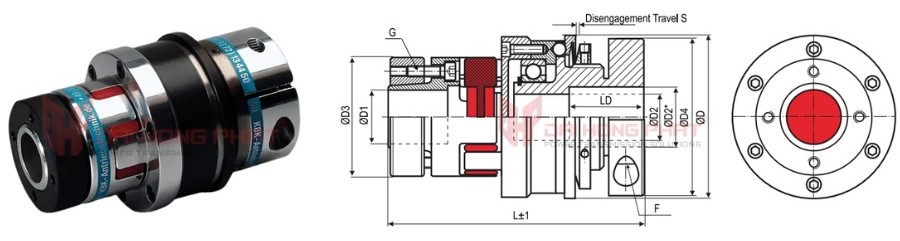

*Technical drawing of the Safety Couplings KBK EAK*

Size	Dimensions (mm)									Technical Data
	ØD	L	Ø D1	Ø D2	Ø D3	Ø D4	G	F	L1	max. speed	Mass	Torque 98 Sh TKN	Torque Range
	Outer Ø	Length	Bore Size (H7) min~max	Bore Size (H7) min~max			Screw ISO4762 TA (Nm)	Screw ISO4762 TA (Nm)		(1/min)	(kg)	(Nm)	1 TKN (Nm)	2 TKN (Nm)
-14	49	73	6-14	6-16	30	40.5	M3	M4	32	11690	0.29	12.5	3 – 7	5 – 10
		68	10#	11#			1.34	5	27
-19	64	100	10-19	10-20	40	56	M4	M6	41	8950	0.85	17	5 – 15	10 – 30
		95	13#	14#			2.9	15	36
-24	79	126.5	15-25	12-28	55	66	M5	M8	50	7630	1.67	60	12 – 35	20 – 60
		119.5	18#	21#			6	36	43
-28	94	142	19-38	14-35	65	82	M5	M10	59	6030	3.4	160	50 – 130	65 – 150
		135	30#	27#			6	72	52
-38	119	160	20-45	30-50	80	110	M6	M12	67	4980	6.5	325	60 – 200	150 – 300
		151	37#	41#			10	125	58
-42	129	195	28-50	35-56	95	122	M8	M12	76	4440	11.50	450	80 – 250	200 – 500
		183	41#	46#			35	125	64

5. Why choose Dai Hong Phat Corp. as your supplier for KBK Backlash-Free Torque Limiter?

– Our customers will have the opportunity to purchase genuine KBK shaft couplings imported directly from KBK Germany.
– Dai Hong Phat will safeguard you against risks by providing genuine KBK Safety Coupling products and protecting you from counterfeit items.
– We ensure that all necessary CO/CQ documentation for Safety Couplings KBK EAK products will be provided to our customers.
– With a readily available stock of KBK EAK Coupling, Dai Hong Phat guarantees swift delivery to our customers.
– Technical drawings of the shaft couplings will be provided upon request to our customers.
– We maintain a highly skilled team of technical specialists to assist our customers with any inquiries or concerns they may have.
– Free consultation services are offered to optimize solutions for our customers’ plants with genuine Overload Coupling products from the Ringfeder brand.
– Our customers will receive the official KBK shaft coupling catalogue from Dai Hong Phat.
– We offer complimentary customization of technical specifications and dimensions for Backlash-Free Torque Limiter products according to our customers’ requirements.
– Our nationwide 24/7 delivery service ensures minimal downtime for our customers’ machinery.
– Dai Hong Phat boasts a professional workshop for precision machining tailored to our customers’ specific requests.
