1. Dai Hong Phat Corp. is the representative specializing in supplying all KBK Safety Coupling products throughout Vietnam:
– Established since 2003 and operating for over 18 years, KBK has expanded its presence in over 45 countries worldwide in the field of manufacturing industrial machinery parts.
– Dai Hong Phat has partnered with KBK, a leading European manufacturer of industrial machinery parts from Germany, renowned worldwide.
– We, at Dai Hong Phat, are the authorized importer and distributor of all 100% genuine KBK BKK Overload Coupling products in Vietnam.
– With over 15 years of commitment, Dai Hong Phat ensures that our customers purchase genuine 100% Safety Couplings KBK BKK with the highest quality and best prices in the market.

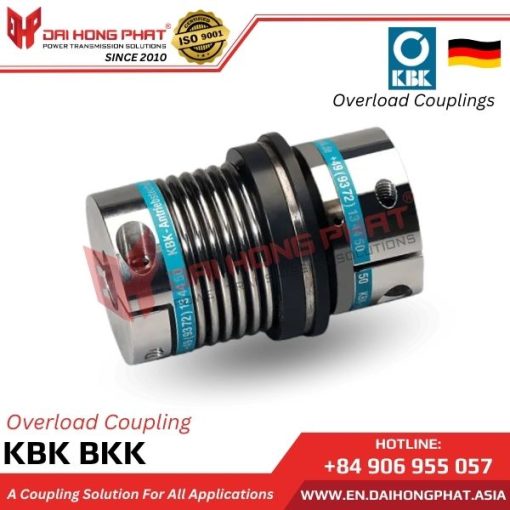

2. Characteristics of the Safety Couplings KBK BKK:
– The safety couplings KBK BKK are manufactured by KBK/Germany.
– Safety coupling, overload coupling with no harsh reaction.
– Equipped with clamping centers on both sides for quick and easy assembly.
– Torque range: 0.2 – 500 Nm.
– Outer diameter: 29 – 129 mm.
– Bore diameter: 3 – 70 mm.
– Rotational speed: 4470 RPM – 13200 RPM.
View more product “Safety Couplings KBK CA“
| FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT: SALES DEPARTMENT HOTLINE: +84906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN |
3. Applications of the Safety Couplings KBK BKK:
The KBK BKK Safety Couplings are widely applied in light, medium, and heavy industrial manufacturing plants, including the wood industry, cement, industrial steel production, shipyards, food processing, steel rolling, and various other industrial sectors. They are employed to safeguard against sudden power outages or overloads, and are particularly suitable for use with Encoders.

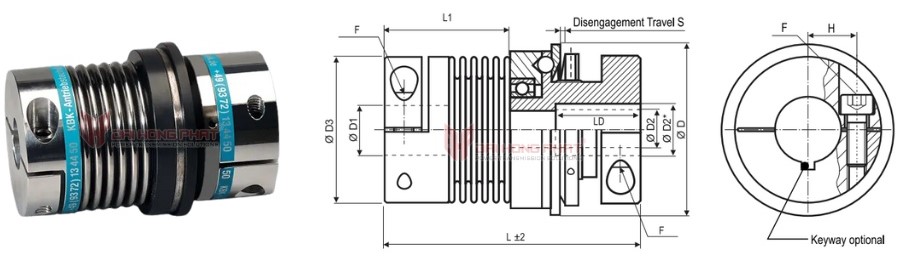

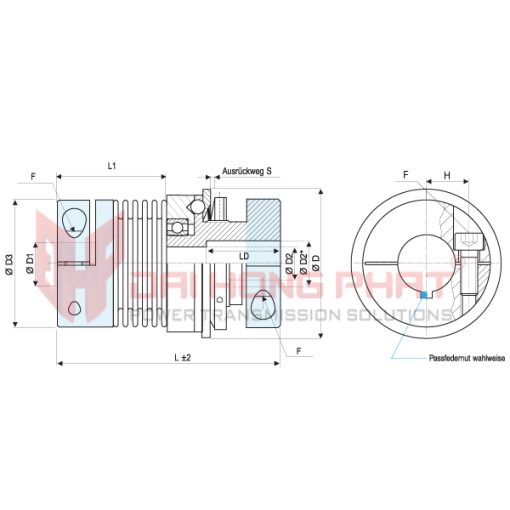

4. Technical of the Safety Couplings KBK BKK:
| Catalogue KBK BKK Overload Couplings |
Installation KBK BKK Overload Couplings |
||||||
 |
|
| Size | Dimensions (mm) | Technical Data | ||||||||||
| ØD | L | Ø D1 | Ø D2 | Ø D3 | H | F | L1 | max. speed | Mass | Torque Range | ||
| Outer Ø | Length | Bore Size (H7) min~max |
Bore Size (H7) min~max |
Hub Ø | Screw ISO4762 TA (Nm) | (1/min) | (kg) | 1 TKN (Nm) |
2 TKN (Nm) |
|||
| -2 | 29 | 46 | 3-14 | 3-8 | 25 | 9 | M3 | 21 | 13200 | 0.08 | 0.2 – 1.5 | 0.5 – 2 |
| 52 | 2 | 27 | ||||||||||
| 56 | 31 | |||||||||||
| -4.5 | 36 | 57 | 6-16 | 6-13 | 32.5 | 12 | M4 | 27 | 12300 | 0.16 | 1 – 3 |
3 – 6 |
| 65 | 9# | 3.5 | 36 | |||||||||
| -7 | 49 | 65 | 6-25 | 6-16 | 40 | 15.5 | M4 | 34 | 11690 | 0.25 | 1 – 4 |
3 – 7 |
| 75 | 11# | 5.1 | 43 | |||||||||
| -10 | 49 | 65 | 6-25 | 6-16 | 40 | 15.5 | M4 | 34 | 11690 | 0.25 | 3 – 7 |
5 – 10 |
| 75 | 11# | 5.1 | 43 | |||||||||
| -30 | 64 | 85 | 10-32 | 10-20 | 56 | 20 | M6 | 40.5 | 9540 | 0.77 | 5 – 15 |
10 – 30 |
| 94 | 30# | 14# | 15 | 48.5 | ||||||||
| -60 | 79 | 105 | 12-32 | 12-28 | 66 | 23 | M8 | 50 | 8180 | 1.34 | 12 – 35 |
20 – 60 |
| 115 | 21# | 36 | 60 | |||||||||
| -80 | 94 | 113 | 14-42 | 14-35 | 82 | 28 | M10 | 57.5 | 6220 | 3.52 | 15 – 40 |
30 – 80 |
| 125 | 27# | 72 | 68.5 | |||||||||
| -150 | 94 | 113 | 19-42 | 14-35 | 82 | 28 | M10 | 57.5 | 6220 | 3.52 | 50 – 130 |
65 – 150 |
| 125 | 27# | 72 | 68.5 | |||||||||
| -200 | 109 | 125 | 22-45 | 22-41 | 90 | 31 | M12 | 63 | 5720 | 4.45 | 30 – 90 |
80 – 200 |
| 138 | 33# | 125 | 75 | |||||||||
| -300 | 119 | 140 | 30-60 | 30-50 | 110 | 39 | M12 | 67 | 5200 | 6.47 | 60 – 200 |
150 – 300 |
| 150 | 41# | 125 | 78 | |||||||||
| -500 | 129 | 158 | 35-70 | 35-56 | 122 | 42 | M12 | 70 | 4470 | 9.22 | 80 – 250 |
200 – 500 |
| 170 | 46# | 125 | 81 | |||||||||
5. Why choose Dai Hong Phat Corp. as your supplier for KBK Overload Couplings?
– Our customers will have the opportunity to purchase genuine KBK shaft couplings imported directly from KBK Germany.
– Dai Hong Phat will safeguard you against risks by providing genuine KBK Safety Coupling products and protecting you from counterfeit items.
– We ensure that all necessary CO/CQ documentation for Safety Couplings KBK BKK products will be provided to our customers.
– With a readily available stock of KBK BKK Coupling, Dai Hong Phat guarantees swift delivery to our customers.
– Technical drawings of the shaft couplings will be provided upon request to our customers.
– We maintain a highly skilled team of technical specialists to assist our customers with any inquiries or concerns they may have.
– Free consultation services are offered to optimize solutions for our customers’ plants with genuine Overload Coupling products from the KBK brand.
– Our customers will receive the official KBK shaft coupling catalogue from Dai Hong Phat.
– We offer complimentary customization of technical specifications and dimensions for KBK BKK Coupling products according to our customers’ requirements.
– Our nationwide 24/7 delivery service ensures minimal downtime for our customers’ machinery.
– Dai Hong Phat boasts a professional workshop for precision machining tailored to our customers’ specific requests.
