Let’s learn about JAC Elastomer Rings CA (Wheel Rubber) with Dai Hong Phat through the following article!
1. About Dai Hong Phat Corp – JAC Korea
– Dai Hong Phat Corp is the official authorized representative of JAC Korea in Vietnam. We provide genuine drive shaft coupling solutions that meet international standards, helping to optimize the performance and durability of machinery systems.
– JAC was established in 1989 as the main coupling supplier for POSCO Steel Corporation in Korea. With more than 30 years of development, JAC has continuously innovated technology, expanded products, and met diverse global needs.
– JAC Elastomer Rings CA (Wheel Rubber) products supplied by Dai Hong Phat are 100% genuine imports, with full CO/CQ, meeting international quality standards.
See more: Other JAC Rubber Elements

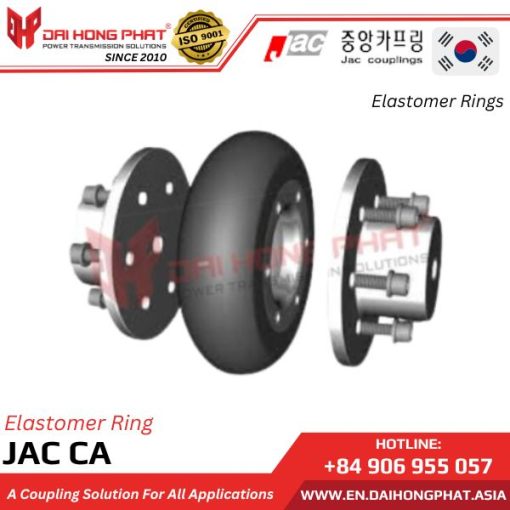

2.Charateristics of JAC Elastomer Rings CA:
– Manufacturer: JAC/Korea
– Functions: Shock absorption, vibration damping, cushioning
– Able to handle parallel, angular, and axial positions
– Quick and easy installation, no special tools required

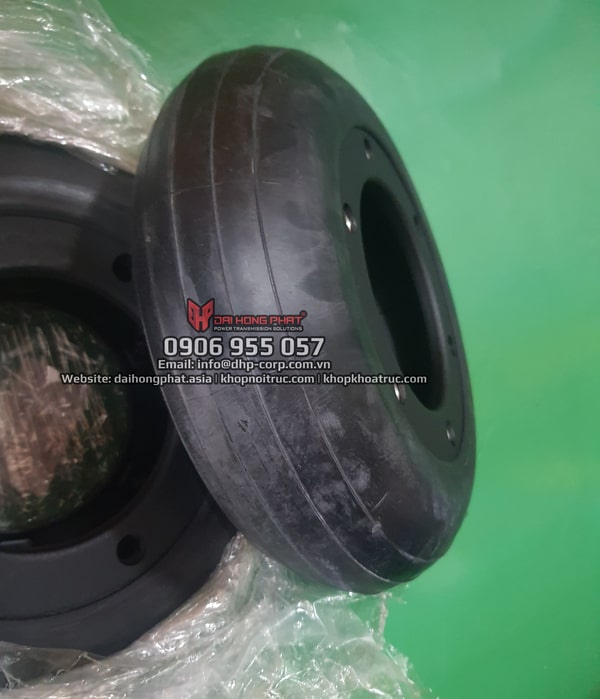

– JAC CA elastomer rubber wheel rings are made from natural compounds, making them suitable for use in most conditions.
View more product “JAC CA Tire Couplings“
| FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT: SALES DEPARTMENT HOTLINE: (+84) 0906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN |
3. Application of Elastomer Rubber JAC:
JAC CA elastomer rubber can be used for oil resistance, water resistance, dust and smoke resistance, insulation, and thermal insulation in high-temperature environments. They can be paired with flanges: standard couplings can be supplemented with extended flange connectors (spacer flanges) to increase the installation distance to the shaft end.
See more articles: How to distinguish genuine rubber elements
4. Technical of JAC CA elastomer rubber:
| Catalogue Elastomer Rubber JAC CA |
Installation Elastomer Rubber JAC CA |
||||||
 |
|
| Model | Rating Torque
(kgf.m) |
Max.
(rpm) |
Tire | Flange | G | W | Bolt 2×n-d×p×ℓ |
GD2
(kgf.cm2) |
Weight (kg) | |||||||||
| A | B | C | D | E | F | H | I | Max. Bore | ||||||||||
| JAC-100 | 5 | 5,000 | 100 | 35 | 37 | 50 | 82 | 36 | 28 | 6 | 22 | 93 | 2×6-M6×1.0×20 | 34.9 | 1.1 | |||
| JAC-120 | 10 | 4,500 | 120 | 45 | 39 | 65 | 106 | 48 | 35 | 6 | 28 | 109 | 2×6-M6×1.25×20 | 78.4 | 2.0 | |||
| JAC-140 | 15 | 4,200 | 140 | 52 | 45 | 75 | 118 | 55 | 44 | 7 | 35 | 133 | 2×6-M10×1.5×25 | 164.6 | 3.0 | |||
| JAC-160 | 22 | 4,000 | 160 | 62 | 51 | 85 | 132 | 65 | 53 | 8 | 42 | 157 | 2×6-M10×1.5×25 | 301.8 | 4.5 | |||
| JAC-185 | 30 | 3,600 | 185 | 74 | 58 | 100 | 154 | 77 | 60 | 10 | 48 | 178 | 2×6-M12×1.75×25 | 568.4 | 6.6 | |||
| JAC-220 | 50 | 3,200 | 220 | 84 | 67 | 112 | 180 | 89 | 69 | 12 | 55 | 205 | 2×6-M12×175×30 | 1,293.6 | 11.8 | |||
| JAC-265 | 100 | 2,600 | 265 | 112 | 82 | 140 | 214 | 117 | 94 | 14 | 75 | 270 | 2×6-M12×1.75×35 | 3,802.4 | 21.7 | |||
| JAC-340 | 165 | 2,100 | 340 | 142 | 106 | 180 | 272 | 150 | 120 | 18 | 95 | 346 | 2×6-M16×2.0×45 | 12,544.0 | 46.5 | |||
| JAC-445 | 500 | 1,600 | 455 | 190 | 139 | 236 | 344 | 202 | 160 | 25 | 128 | 459 | 2×6-M18×2.5×55 | 44,688.0 | 110.0 | |||
| JAC-550 | 1,000 | 1,200 | 550 | 230 | 173 | 290 | 430 | 246 | 170 | 26 | 170 | 513 | 2×8-M24×3.0×70 | 125,440.0 | 187.0 | |||
| JAC-700 | 2,000 | 1,000 | 700 | 310 | 220 | 370 | 544 | 326 | 220 | 26 | 220 | 660 | 2×12-M24×3.0×70 | 356,720.0 | 394.0 | |||
5. Why choose Dai Hong Phat Corp?
100% genuine products imported directly from JAC Korea.
Protect customers from counterfeit goods and always provide full CO/CQ documents.
Goods in stock, fast delivery nationwide 24/7.
Free technical consultation and support for drawings, catalogs.
Refined processing workshop to meet individual requirements.
—————-/—————–/—————–/—————–/—————–
With more than 15 years of experience, Dai Hong Phat Shaft Coupling is proud to be a trusted partner of hundreds of domestic and foreign enterprises.
Let us accompany your sustainable development!
