Let’s learn about Ringfeder Servo Couplings GWE 5104 with Dai Hong Phat, through the following article!
1. About Dai Hong Phat Corp – Ringfeder Germany
– Dai Hong Phat Corp is the official authorized representative of Ringfeder Germany in Vietnam (Ringfeder Vietnam), Laos, Cambodia, Philippines and Bangladesh. We provide genuine transmission shaft coupling solutions that meet international standards, helping to optimize the performance and durability of machinery systems.
– Ringfeder Germany – the world’s leading brand in transmission and shock absorber solutions, with over 100 years of history of creation and innovation. Founded in 1922, with the first product “friction springs“, Ringfeder has become a global symbol of prestige for quality and reliability.
– Ringfeder Servo Couplings GWE 5104 products supplied by Dai Hong Phat are 100% genuine imported, with full CO/CQ, meeting international quality standards.
Certificate of Dai Hong Phat Corp is an authorized representative of Ringfeder Germany in Vietnam
View more: Other Ringfeder servo shaft coupling lines

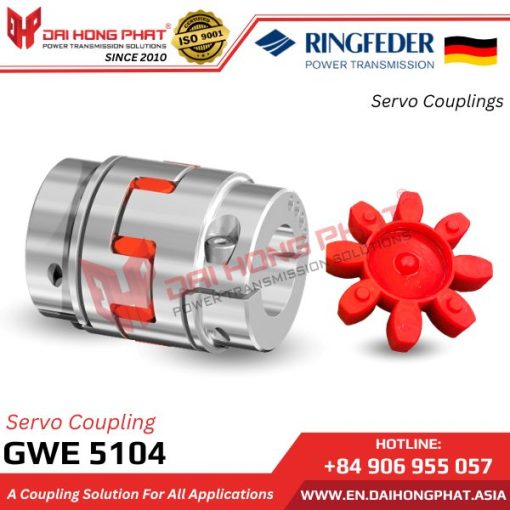

2. Characteristics of Ringfeder Servo Couplings GWE 5104
– Manufacturer brand: Ringfeder/Germany.
– 10 Sizes.
– Bore Diameter d: 5-95 mm.
– Outer Diameter D: 30-160 mm.
– Overall Length L: 35-210 mm.
– Rot. Speed nmax: 2,350-13,000 1/min.
– Torque T: 4.8-1,920 Nm.
– Groove-type coupling, compact size, IEC standard.
– Elastic rubber damping rings with different hardness and shock-absorbing capabilities.
– Standard with 98°A (red-colored spider), from size 65 is 95°A.
– Ringfeder GWE 5104 has recessed hubs on its surface. The function of the coupling is to transmit torque as well as to balance unavoidable deviations, activated through the coupling of two shafts and mounting in the space created by a resilient disc.
– Servo motor couplings do not have reverse jerk reactions to achieve high positional accuracy when operating in reverse. Different Shore hardness levels, corresponding to torsional stiffness, can optimize the entire drive train according to the perspective of rotational oscillation.
View more product: Elastomer Jaw Couplings GWE 5103.1
| FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT: SALES DEPARTMENT HOTLINE: +84906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN |
3. Applications of Ringfeder Servo Couplings GWE 5104
The Servo Shaft Couplings GWE 5104 are used for encoders, servo motors, in precision drives, grinding and milling machines, packaging machines, wood processing equipment, conveyor systems, machine tools, textile machines, drilling rigs, and more.

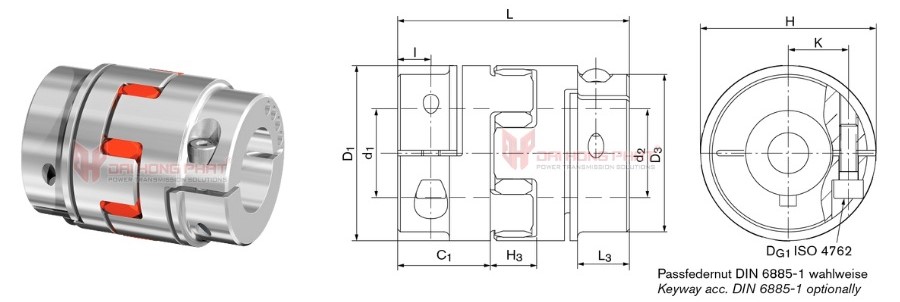

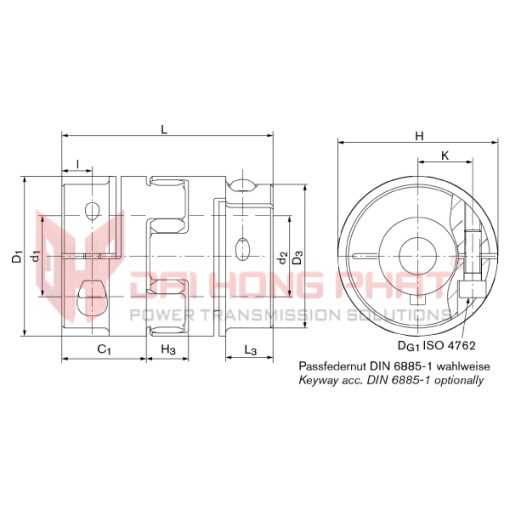

4. Technical specifications of the Elastomer Jaw Couplings GWE 5104
| Catalogue Ringfeder GWE 5104 |
Installation Ringfeder GWE 5104 |
||||||
 |
|
| Coupling Model |
TKN | nmax | Dimensions[mm] | Gw | |||
| [Nm] | [1/min] | d1, d2 | D1 | L | H | [kg] | |
| GWE 5104-14 | 12,5 | 13000 | 5 – 16 | 30 | 35 | 32.2 | 0.042 |
| GWE 5104-19 | 17 | 10000 | 6 – 20 | 40 | 66 | 46 | 0.158 |
| GWE 5104-24 | 60 | 7000 | 10 – 32 | 55 | 78 | 57 | 0.304 |
| GWE 5104-28 | 160 | 6000 | 10 – 38 | 65 | 90 | 71 | 0.505 |
| GWE 5104-38 | 325 | 5000 | 12 – 48 | 80 | 114 | 83 | 0.934 |
| GWE 5104-42 | 450 | 4000 | 14 – 54 | 95 | 126 | 95 | 3.8 |
| GWE 5104-48 | 525 | 3600 | 15 – 60 | 105 | 140 | 106 | 4.9 |
| GWE 5104-55 | 685 | 3150 | 35 – 74 | 120 | 160 | 120 | 10.2 |
| GWE 5104-65 | 940 | 2800 | 35 – 80 | 135 | 185 | 135 | 13.7 |
| GWE 5104-75 | 1920 | 2350 | 30 – 95 | 160 | 210 | 160 | 21.34 |
5. Why choose Dai Hong Phat Corp?
– 100% genuine products imported directly from Ringfeder Germany.
– Protect customers from counterfeit goods and always provide full CO/CQ documents.
– Goods in stock, fast delivery nationwide 24/7.
– Free technical consultation and support for drawings, catalogs.
– Refined processing workshop to meet individual requirements.
—————-/—————–/—————–/—————–/—————–
With more than 15 years of experience, Dai Hong Phat Transmissions Shaft Couplings is proud to be a trusted partner of hundreds of domestic and foreign enterprises.
