1. Dai Hong Phat Corp. is a representative specializing in supplying all Tooth Pulley products throughout Vietnam:
– Cross Morse is a brand from the UK specializing in manufacturing industrial products, overload protection equipment, various flexible shaft couplings, and other specialized power transmission products.
– Our company, Dai Hong Phat Corp. collaborates with Cross Morse, a UK-based partner specializing in supplying genuine, high-performance overload protection equipment. (Authorized Distributor for Cross Morse Products in Vietnam).
– Dai Hong Phat Company is the importer and distributor of all 100% genuine V-Belt Pulley products from the Cross Morse brand in Vietnam.
– Dai Hong Phat Company commits to over 15 years of reputation, ensuring customers can purchase 100% genuine Cross Morse Tooth Pulley with high quality and the best prices in the market.

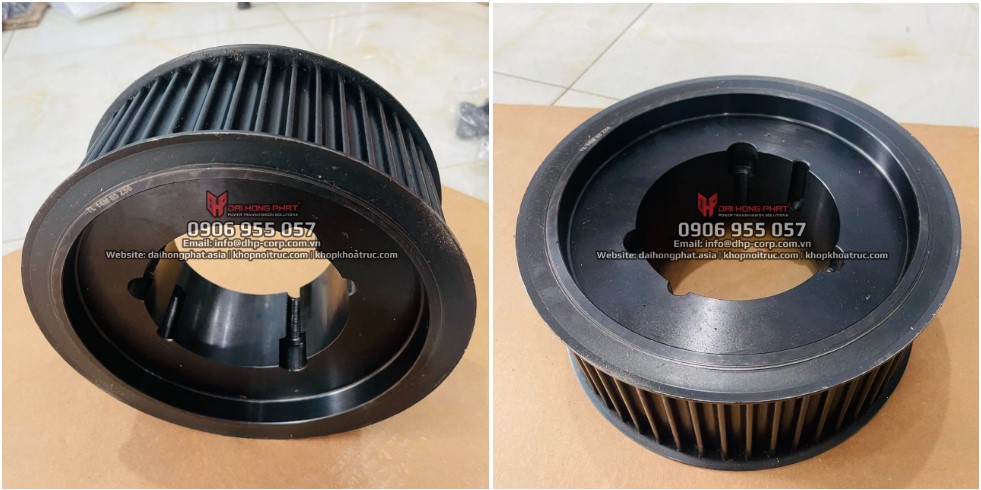

2. Characteristics of the Cross Morse Tooth Pulley:
– The Tooth Pulley is manufactured by Cross Morse/England
– Plays a role in power transmission
– External appearance features detailed gear shapes
– Has holes on the surface
– The detail of the toothed pulley, a type of toothed belt pulley, must be precisely defined as it helps in designing and calculating the exact parameters for pulley machining.
– Technical specifications include outer and inner diameters, keyway dimensions. Finally, the number of grooves on the pulley is crucial as it determines the transmission ratio of the system. The radii, depths, and angles of the grooves, and their corresponding ratios must be accurate for the pulley machining to be precise.
View more product “Polyurethane Timing Belt Drives“
| FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT: SALES DEPARTMENT HOTLINE: +84906 955 057 – EMAIL: INFO@DHP-CORP.COM.VNb |
3. Applications of the Cross Morse Tooth Pulley:
The Cross Morse Tooth Pulley is used in various industries for power transmission needs, including automotive, robotics, material handling, printing, packaging, agriculture, and aerospace. It facilitates precise movement and power transmission in machinery and equipment, ensuring efficiency and reliability across different applications.
4. Catalog of the Cross Morse Tooth Pulley:
| Catalogue Tooth Pulley |
Installation Tooth Pulley |
||||||
 |
|
| Catalogue No. |
No. Teeth Z | Pulley Type | Pitch Circle Dia. dp | Min. Bore d | Max. Bore d | Outside Diameter do | Flange Diameter A | Pulley Width F | Bore Length L | Hub Diameter M |
Rim Diameter N |
Approx Weight kg |
||||||||
| 1/5” Pitch Pulleys for 3/8” Wide Belts. Ref. XL037 | ||||||||||||||||||||
| 10XL037 | 10 | 1F | 16.17 | 4.0 | 6 | 15.7 | 23 | 14.3 | 20.0 | 9.5 | – | 0.02 | ||||||||
| 11XL037 | 11 | 1F | 17.79 | 4.0 | 6 | 17.3 | 23 | 14.3 | 20.0 | 9.5 | – | 0.02 | ||||||||
| 12XL037 | 12 | 1F | 19.40 | 4.0 | 7 | 18.9 | 25 | 14.3 | 20.0 | 10.0 | – | 0.03 | ||||||||
| 13XL037 | 13 | 1F | 21.02 | 4.0 | 7 | 20.5 | 28 | 14.3 | 20.0 | 10.0 | – | 0.04 | ||||||||
| 14XL037 | 14 | 1F | 22.64 | 4.0 | 10 | 22.1 | 28 | 14.3 | 20.0 | 15.0 | – | 0.05 | ||||||||
| 15XL037 | 15 | 1F | 24.26 | 6.0 | 10 | 23.8 | 28 | 14.3 | 20.0 | 15.0 | – | 0.05 | ||||||||
| 16XL037 | 16 | 1F | 25.87 | 6.0 | 10 | 25.4 | 32 | 14.3 | 20.0 | 16.0 | – | 0.06 | ||||||||
| 17XL037 | 17 | 1F | 27.49 | 6.0 | 13 | 27.0 | 35 | 14.3 | 20.0 | 20.0 | – | 0.07 | ||||||||
| 18XL037 | 18 | 1F | 29.11 | 6.0 | 13 | 28.6 | 35 | 14.3 | 20.0 | 20.0 | – | 0.08 | ||||||||
| 19XL037 | 19 | 1F | 30.72 | 6.0 | 13 | 30.2 | 38 | 14.3 | 22.0 | 20.0 | – | 0.09 | ||||||||
| 20XL037 | 20 | 1F | 32.34 | 6.0 | 15 | 31.8 | 38 | 14.3 | 22.0 | 23.5 | – | 0.11 | ||||||||
| 21XL037 | 21 | 1F | 33.96 | 6.0 | 15 | 33.5 | 38 | 14.3 | 22.0 | 23.5 | – | 0.12 | ||||||||
| 22XL037 | 22 | 1F | 35.57 | 6.0 | 16 | 35.1 | 41 | 14.3 | 22.0 | 25.0 | – | 0.13 | ||||||||
| 24XL037 | 24 | 1F | 38.81 | 6.0 | 20 | 38.3 | 44 | 14.3 | 22.0 | 30.0 | – | 0.15 | ||||||||
| 26XL037 | 26 | 1F | 42.04 | 8.0 | 20 | 41.5 | 48 | 14.3 | 22.0 | 30.0 | – | 0.19 | ||||||||
| 27XL037 | 27 | 1F | 43.66 | 8.0 | 20 | 43.2 | 48 | 14.3 | 22.0 | 30.0 | – | 0.20 | ||||||||
| 28XL037 | 28 | 1F | 45.28 | 8.0 | 22 | 44.8 | 51 | 14.3 | 22.0 | 34.0 | – | 0.22 | ||||||||
| 30XL037 | 30 | 1F | 48.51 | 8.0 | 25 | 48.0 | 54 | 14.3 | 22.0 | 38.0 | – | 0.24 | ||||||||
| 32XL037 | 32 | 1F | 51.74 | 8.0 | 25 | 51.2 | 57 | 14.3 | 25.0 | 38.0 | – | 0.12 | ||||||||
| 34XL037 | 34 | 1 | 54.98 | 8.0 | 29 | 54.5 | – | 14.3 | 25.0 | 45.0 | – | 0.12 | ||||||||
| 35XL037 | 35 | 1 | 56.60 | 8.0 | 29 | 56.1 | – | 14.3 | 25.0 | 45.0 | – | 0.13 | ||||||||
| 36XL037 | 36 | 1 | 58.21 | 8.0 | 29 | 57.7 | – | 14.3 | 25.0 | 45.0 | – | 0.14 | ||||||||
| 38XL037 | 38 | 1 | 61.45 | 8.0 | 29 | 61.0 | – | 14.3 | 25.0 | 45.0 | – | 0.16 | ||||||||
| 40XL037 | 40 | 1 | 64.68 | 8.0 | 29 | 64.2 | – | 14.3 | 25.0 | 45.0 | – | 0.17 | ||||||||
| 42XL037 | 42 | 1 | 67.91 | 8.0 | 29 | 67.4 | – | 14.3 | 25.0 | 45.0 | – | 0.18 | ||||||||
| 44XL037 | 44 | 1 | 71.15 | 8.0 | 29 | 70.6 | – | 14.3 | 25.0 | 45.0 | – | 0.19 | ||||||||
| 48XL037 | 48 | 2 | 77.62 | 10.0 | 29 | 77.1 | – | 14.3 | 25.0 | 45.0 | 61 | 0.21 | ||||||||
| 60XL037 | 60 | 2 | 97.02 | 10.0 | 29 | 96.5 | – | 14.3 | 25.0 | 45.0 | 80 | 0.25 | ||||||||
| 72XL037 | 72 | 2 | 116.43 | 10.0 | 29 | 115.9 | – | 14.3 | 25.0 | 45.0 | 100 | 0.30 | ||||||||
5. Why choose Dai Hong Phat Corp as the supplier for Cross Morse Tooth Pulley?
– You will purchase 100% genuine Cross Morse Pulley directly imported from the manufacturer.
– You can rest assured because Dai Hong Phat will protect you against the risks of counterfeit pulley products.
– You will receive full CO/CQ documentation for V-Belt Pulley provided by Dai Hong Phat.
– Genuine Cross Morse Tooth Pulley products are always available in Dai Hong Phat’s warehouse, ensuring prompt delivery to you.
– Dai Hong Phat will provide you with technical drawings of the purchased Crossmorse Pulley upon request.
– We always provide dedicated support to our customers with a team of highly skilled technical professionals.
– We offer free consultation on optimizing solutions for your plant regarding Timing Belt Pulley products.
– Dai Hong Phat will provide you with the genuine product catalogue.
– We will freely convert the technical parameters and dimensions of Cross Morse Products according to your requirements.
– Dai Hong Phat provides nationwide 24/7 delivery, minimizing downtime for your machinery.
– Our professional machining workshop can tailor products to your specific requirements.
Contact Dai Hong Phat now for consultation!
