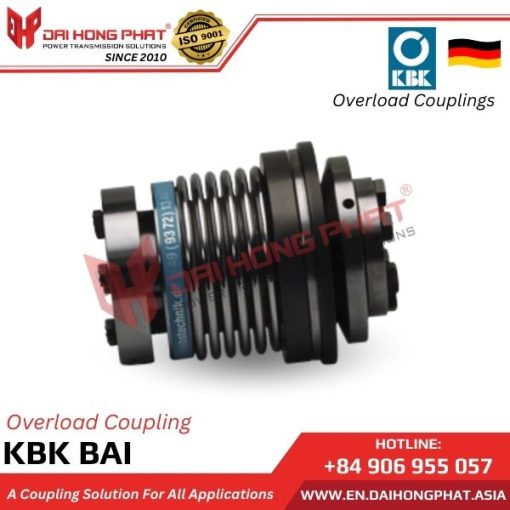

KBK BAI SAFETY COUPLING

The Safety Couplings KBK BAI feature customizable parts that can be directly mounted on the flange face coupling with high precision. The KBK BAI is widely used in factories and across all types of light, medium, and heavy industrial production lines.

Description

5/5 - (1 vote)

1. Dai Hong Phat Corp. is the representative specializing in supplying all KBK Safety Coupling products throughout Vietnam:

– Established since 2003 and operating for over 18 years, KBK has expanded its presence in over 45 countries worldwide in the field of manufacturing industrial machinery parts.
– Dai Hong Phat has partnered with KBK, a leading European manufacturer of industrial machinery parts from Germany, renowned worldwide.
– We, at Dai Hong Phat, are the authorized importer and distributor of all 100% genuine KBK BAI Overload Coupling products in Vietnam.
– With over 15 years of commitment, Dai Hong Phat ensures that our customers purchase genuine 100% Safety Couplings KBK BAI with the highest quality and best prices in the market.

2. Characteristics of the Safety Couplings KBK BAI:

– The Safety Couplings KBK BAI are manufactured by KBK/Germany
– Safety clutch and overload clutch without backlash reaction
– With self-centering external cone on both sides for high clamping force
– Torque range: 3 – 1400 Nm
– Outer diameter: 49 – 169 mm
– Bore diameter: 5 – 70 mm
– Operating environment: -30°C to +120°C
– The overload protection coupling is a combination of optimized torques and can compensate for misalignment. Sprockets, chain discs, gears, or customized parts can be directly mounted on the flange face coupling with high precision.

View more product “Safety Couplings KBK BAA“

FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT:
SALES DEPARTMENT
HOTLINE: +84906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN

3. Applications of the Safety Couplings KBK BAI:

Safety Couplings KBK BAI is widely used in light, medium, and heavy industrial manufacturing plants and production lines, including the wood industry, cement production, industrial steel manufacturing, shipyard industry, food processing, steel coil production, and more. Its primary function is to protect against sudden power outages or overload incidents. It is particularly used for mounting chain discs, pulleys, and more.

View more product “Safety Couplings KBK CI“

4. Techincal of the Safety Couplings KBK BAI:

Catalogue KBK BAI Overload Coupling				Installation KBK BAI Overload Coupling

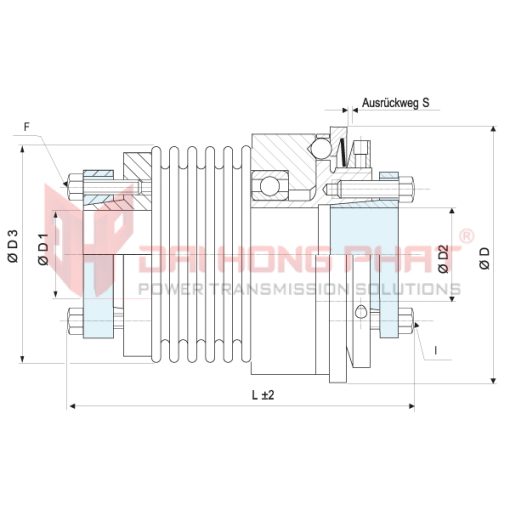

*Technical drawing of the Safety Couplings KBK BAI*

Size	Dimensions (mm)							Technical Data
	ØD	L	ØD1	ØD2	ØD3	F	I	max. speed	Mass	Torque Range
	Outer Ø	Length	Bore Size (H7) min~max	Bore Size (H7) min~max		Screw ISO4017 TA (Nm)	Screw ISO4017 TA (Nm)	(1/min)	(kg)	1 TKN (Nm)	2 TKN (Nm)
-10	49	65	5-14	6-14	40.5	M3	M3	11650	0.27	3 – 7	5 – 10
		74	10#	10#		2.1	2.1
-30	64	75	12-20	12-20	56	M5	M5	9540	0.75	5 – 15	10 – 30
		84	14#	14#		5.9	6
-60	79	89	15-32	15-25	66	M5	M6	8180	1.42	12 – 35	20 – 60
		100	24#	18#		8.7	8.5
-80	94	108	20-35	20-35	82	M6	M6	6220	2.6	15 – 40	30 – 80
		120	27#	27#		15	14
-150	94	108	20-35	20-35	82	M6	M6	6220	2.6	50 – 130	65 – 150
		120	27#	27#		15	14
-200	109	110	20-42	20-40	90	M6	M6	5720	2.9	30 – 90	80 – 200
		123	34#	32#		15	14
-300	119	133	25-50	25-45	110	M8	M8	5200	4.8	60 – 200	150 – 300
		143	41#	37#		25	18
-500	129	145	35-55	35-55	122	M8	M8	4470	6.8	80 – 250	200 – 500
		157	45#	45#		36	26
-800	169	242	50-70	50-70	157	M12	M16	3350	17.80	240 – 600	500 – 800
			58#	58#		85	45
-1400	169	242	50-70	50-70	157	M12	M16	3350	17.90	360 – 1000	900 – 1400
			58#	58#		115	80

5. Why choose Dai Hong Phat Corp. as your supplier for KBK Backlash-Free Torque Limiter?

– Our customers will have the opportunity to purchase genuine KBK shaft couplings imported directly from KBK Germany.
– Dai Hong Phat will safeguard you against risks by providing genuine KBK Safety Coupling products and protecting you from counterfeit items.
– We ensure that all necessary CO/CQ documentation for Safety Couplings KBK BAI products will be provided to our customers.
– With a readily available stock of KBK BAI Coupling, Dai Hong Phat guarantees swift delivery to our customers.
– Technical drawings of the shaft couplings will be provided upon request to our customers.
– We maintain a highly skilled team of technical specialists to assist our customers with any inquiries or concerns they may have.
– Free consultation services are offered to optimize solutions for our customers’ plants with genuine Overload Coupling products from the KBK brand.
– Our customers will receive the official KBK shaft coupling catalogue from Dai Hong Phat.
– We offer complimentary customization of technical specifications and dimensions for Backlash-Free Torque Limiter products according to our customers’ requirements.
– Our nationwide 24/7 delivery service ensures minimal downtime for our customers’ machinery.
– Dai Hong Phat boasts a professional workshop for precision machining tailored to our customers’ specific requests.
