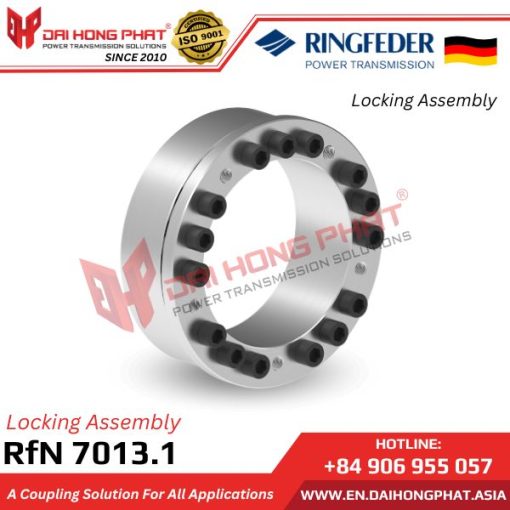

RINGFEDER LOCKING ASSEMBLIES RfN 7013.1

The Locking Assemblies RfN 7013.1 is designed as a single taper, providing self-locking capability, excellent self-centering and concentricity, while also increasing torque transmission. This type of locking assembly is widely used in crane hoists, gearbox gears, pulleys, fans, and shaft couplings.

Dai Hong Phat Corp Shaft Coupling is an authorized representative and genuine distributor of Ringfeder Germany in Vietnam, Laos, Cambodia, Philippines and Bangladesh.

Category: Ringfeder Locking Assemblies Tags: Ringfeder distributors, Shaft hub connections, Locking devices, Ringfeder Cambodia, Authorized Distributor for Ringfeder Products in Cambodia, Authorized Distributor for Ringfeder Products in Philippines, Authorized Distributor for Ringfeder Products in Laos, Authorized Distributor for Ringfeder Products in Vietnam, Ringfeder Philippines, Ringfeder Laos, Locking Assemblies RfN 7013.1, RFN 7013.1, RINGFEDER RFN 7013.1, power lock, LOCKING ASSEMBLY

Description

5/5 - (1 vote)

Let’s learn about Ringfeder Locking Assemblies RfN 7013.1 with Dai Hong Phat, through the following article!

1. About Dai Hong Phat Corp – Ringfeder Germany

– Dai Hong Phat Corp is the official authorized representative of Ringfeder Germany in Vietnam (Ringfeder Vietnam), Laos, Cambodia, Philippines and Bangladesh. We provide genuine transmission shaft coupling solutions that meet international standards, helping to optimize the performance and durability of machinery systems.
– Ringfeder Germany – the world’s leading brand in transmission and shock absorber solutions, with over 100 years of history of creation and innovation. Founded in 1922, with the first product “friction springs“, Ringfeder has become a global symbol of prestige for quality and reliability.
– Ringfeder Locking Assemblies RfN 7013.1 products supplied by Dai Hong Phat are 100% genuine imported, with full CO/CQ, meeting international quality standards.

An authorized distributor for Ringfeder product in Vietnam Certificate of Dai Hong Phat Corp is an authorized representative of Ringfeder Germany in Vietnam

See more: Other Ringfeder Locking Assemblies

2. Characteristics of Ringfeder RfN 7013.1:

– Locking Assemblies RfN 7013.1 are manufactured by Ringfeder/Germany.
– Self-centering.
– No axial displacement.
– Inner diameter d: 19-150 mm.
– Outer diameter D: 47-200 mm.
– Overall length L: 37-77 mm.
– Torque T: 285-28,500 Nm.
– Designed as a single taper, providing self-locking capability, ensuring good self-centering and concentricity, while increasing torque transmission.
– Ringfeder RfN 7013.1 locking assembly offers excellent concentricity between tightly clamped parts. The flange is reinforced at the limit point, preventing bending or lifting of the inner ring during assembly and ensuring easy disassembly.

View more product “Locking Assemblies RfN 7012.2“

FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT:
SALES DEPARTMENT
HOTLINE: +84906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN

3. Applications of Locking Assemblies RfN 7013.1:

Locking Assemblies RfN 7013.1 find applications in a wide range of industries including manufacturing, automotive, aerospace, construction, mining, agriculture, renewable energy, packaging, and marine sectors. They are used for securing and precisely transmitting torque in shaft-hub connections, ensuring reliable performance in various high-speed and high-load applications.

See article: Applications of Ringfeder RfN Mini Locking Assemblies

4. Technical of Locking Assemblies RfN 7013.1:

Catalogue Ringfeder RfN 7013.1				Installtion Ringfeder RfN 7013.1

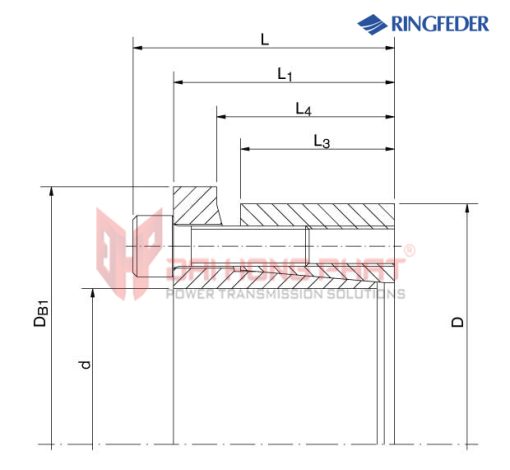

*Technical drawing of Locking Assemblies RfN 7013.1*

Ringfeder RfN 7013.1 locking assembly specifications:

Dimensions [mm]					T [Nm]	TA [Nm]	Gw [kg]	Tmax [Nm]
dxD	L	L1	L3	D1	T [Nm]	TA [Nm]	Gw [kg]	Tmax [Nm]
19×47	37	31	21,7	53	285	17	0.29	310
20×47	37	31	21,7	53	300		0.29	330
22×47	37	31	21,7	53	330		0.27	360
24×50	37	31	21,7	56	420		0.31	460
25×50	37	31	21,7	56	440		0.3	480
28×55	37	31	21,7	62	490		0.36	530
30×55	37	31	21,7	62	530		0.34	580
32×60	37	31	21,7	68	740		0.41	810
35×60	37	31	21,7	68	810		0.38	890
38×65	37	31	21,7	73	890		0.44	970
40×65	37	31	21,7	73	940		0.41	1030
42×75	46	38	25,3	83	1730	41	0.76	1900
45×75	46	38	25,3	83	1860		0.7	2040
48×80	46	38	25,3	88	1980		0.8	2170
50×80	46	38	25,3	88	2070		0.76	2270
55×85	46	38	25,3	95	2540		0.82	2790
60×90	46	38	25,3	100	2770		0.88	3040
65×95	46	38	25,3	105	3580		0.94	3930
70×110	60	50	33,4	120	5100	83	2.1	5610
75×115	60	50	33,4	125	5460		2.2	6000
80×120	60	50	33,4	130	5850		2.3	6430
85×125	60	50	33,4	135	7450		2.4	8190
90×130	60	50	33,4	140	7900		2.6	8690
95×135	60	50	33,4	145	9900		2.7	10890
100×145	68	58	40,8	155	11000		3.7	12100
110×155	68	58	40,8	165	12100		4	13310
120×165	68	58	40,8	175	15700		4.3	17270
130×180	77	65	45,4	190	20700	145	5.9	22770
140×190	77	65	45,4	200	22500		6.3	24750
150×200	77	65	45,4	210	28500		6.7	31350
