2. Characteristics of the MAV 2500 Locking Assembly:

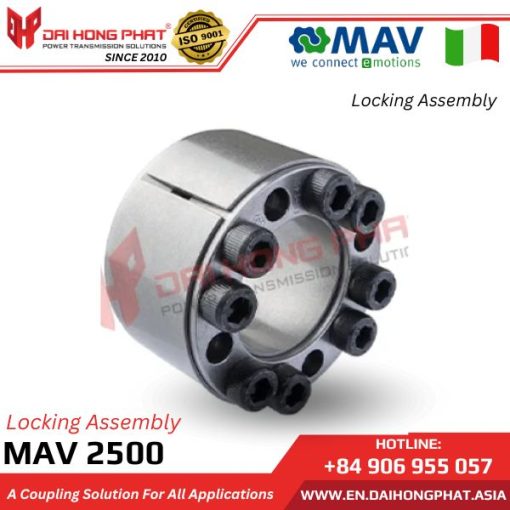

– The Locking Assembly MAV 2500 is manufactured by MAV/Italy.
– Inner diameter d: 45-300 mm.
– Outer diameter D: 85-390 mm.
– Total length L: 60-156 mm.
– Torque T: 3,000-231,000 Nm.
– Average torque load
– Self-locking and self-centering
– Fixed center shaft during tightening
– Maximum tolerance: shaft h9; center bore H9
– Surface finish of shaft/center bore: 0.8 ≤ Ra ≤ 3.2 µm
– The MAV 2500 locking assembly provides a threadless connection between the drive shaft and the external operating unit such as gears, rollers, camshafts, levers, rotor assemblies, fan blades, and other devices. It is highly suitable for transmitting torque, axial loads, bending moments, and radial loads, either individually or simultaneously.
– MAV 2500 is supplied ready for installation to ensure no rear threading is needed. The torque capacity of the locking assembly is based on a friction coefficient of m = 0.12 for the screw shaft, cone, contact area between the shafts, and shafts lubricated with light oil.
View more product “Locking Assembly MAV 1062“
| FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT: SALES DEPARTMENT HOTLINE: +84906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN |
3. Applications of The MAV 2500 Locking Assembly:
The Locking Assembly MAV 2500 is a reliable solution designed for a wide range of industrial applications. With its ability to securely transmit torque and handle axial loads, it finds use in various machinery and equipment across industries such as manufacturing, mining, construction, and automotive. From coupling gears and rollers to camshafts and levers, the MAV 2500 ensures precise alignment and dependable torque transmission, making it indispensable in demanding industrial settings where reliability is paramount.

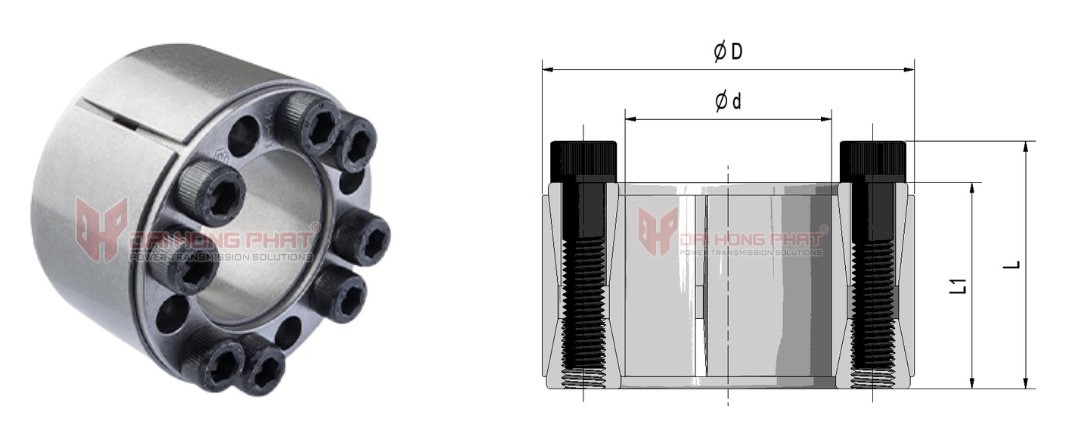

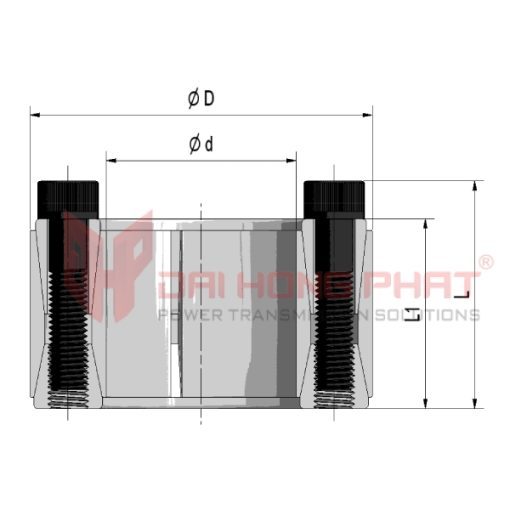

4. Technical of The MAV 2500 Locking Assembly:
| Catalogue MAV 2500 |
Installation MAV 2500 |
||||||
 |
|
| DIMENSIONS | SCREWS ISO 4762 – 12.9 |
PERFORMANCES | WEIGHT | ||||||
| d mm x D mm | L1 mm | L mm | size | Ma (Nm) | Mt (Nm) | Fax (kN) | Ps (Mpa) | Ph (MPa) | (kg) |
| 45 x 85 | 50 | 60 | M 10 | 83 | 3,000 | 134 | 231 | 122 | 1.4 |
| 50 x 90 | 50 | 60 | M 10 | 83 | 3,300 | 134 | 208 | 116 | 1.5 |
| 55 x 95 | 50 | 60 | M 10 | 83 | 3,700 | 133 | 189 | 110 | 1.6 |
| 60 x 100 | 50 | 60 | M 10 | 83 | 4,000 | 132 | 173 | 104 | 1.7 |
| 65 x 115 | 62 | 74 | M 12 | 145 | 6,300 | 195 | 199 | 113 | 3.0 |
| 70 x 120 | 62 | 74 | M 12 | 145 | 6,800 | 194 | 185 | 108 | 3.1 |
| 80 x 130 | 62 | 74 | M 12 | 145 | 11,500 | 288 | 243 | 149 | 3.5 |
| 90 x 140 | 62 | 74 | M 12 | 145 | 12,900 | 286 | 216 | 139 | 4.0 |
| 100 x 160 | 80 | 94 | M 14 | 230 | 19,400 | 387 | 201 | 125 | 6.7 |
| 110 x 170 | 80 | 94 | M 14 | 230 | 24,700 | 449 | 213 | 138 | 7.2 |
| 120 x 180 | 80 | 94 | M 14 | 230 | 28,700 | 479 | 209 | 139 | 7.8 |
| 130 x 190 | 80 | 94 | M 14 | 230 | 31,000 | 476 | 193 | 132 | 8.3 |
| 140 x 200 | 80 | 94 | M 14 | 230 | 37,600 | 538 | 203 | 142 | 8.7 |
| 150 x 210 | 80 | 94 | M 14 | 230 | 42,500 | 567 | 201 | 143 | 9.3 |
| 160 x 230 | 94 | 110 | M 16 | 355 | 58,500 | 731 | 201 | 140 | 14 |
| 170 x 240 | 94 | 110 | M 16 | 355 | 65,600 | 771 | 200 | 142 | 15 |
| 180 x 250 | 94 | 110 | M 16 | 355 | 76,900 | 854 | 210 | 151 | 16 |
| 190 x 260 | 94 | 110 | M 16 | 355 | 84,900 | 894 | 209 | 153 | 17 |
| 200 x 270 | 94 | 110 | M 16 | 355 | 97,600 | 976 | 218 | 161 | 18 |
| 220 x 300 | 116 | 134 | M 18 | 485 | 117,000 | 1,070 | 181 | 133 | 27 |
| 240 x 320 | 116 | 134 | M 18 | 485 | 145,000 | 1,210 | 190 | 142 | 29 |
| 260 x 340 | 116 | 134 | M 18 | 485 | 170,000 | 1,310 | 190 | 145 | 32 |
| 280 x 370 | 136 | 156 | M 20 | 690 | 217,000 | 1,550 | 189 | 143 | 46 |
| 300 x 390 | 136 | 156 | M 20 | 690 | 231,000 | 1,540 | 170 | 131 | 49 |
