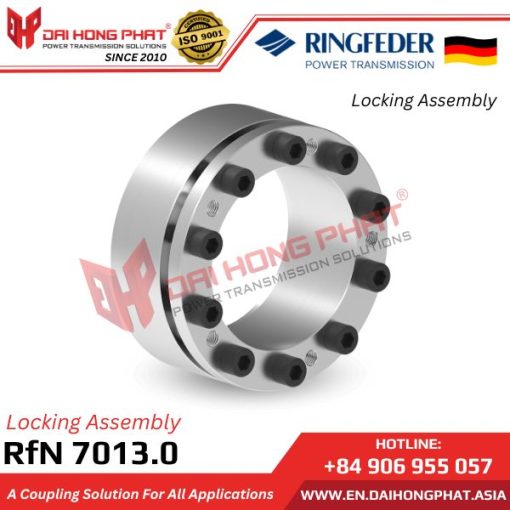

RfN 7013.0 LOCKING ASSEMBLY

These Locking Assemblies RfN 7013.0 are of single-taper design with a self-locking taper providing good self-centering action and concentricity, as well as increased torque capacity. A pre-centering hub section is not required. Integral push-off screws for disassembly are provided. This unit can be placed deep inside a bore due to it’s design. Available sizes: Metric series shafts from 20 mm to 150 mm dia. and Inch series for shafts from 1” to 4” diameter.

Category: Ringfeder Locking Assemblies Tags: LOCKING ELEMENTS, Power transmission components, Locking devices, Ringfeder Cambodia, Authorized Distributor for Ringfeder Products in Cambodia, Authorized Distributor for Ringfeder Products in Philippines, Authorized Distributor for Ringfeder Products in Laos, Authorized Distributor for Ringfeder Products in Vietnam, Ringfeder Philippines, Ringfeder Laos, Ringfeder distributors, Locking Assemblies RfN 7013.0, RFN 7013, RINGFEDER RFN 7013, RINGFEDER RFN, Ringfeder Việt Nam, power lock, LOCKING ASSEMBLY

Description

5/5 - (1 vote)

1. Why choose Dai Hong Phat Corp. as your supplier for Ringfeder RfN 7013.0?

– Genuine RfN 7013.0 Locking Assembly imported directly from the manufacturer.
– Risk protection, anti-counterfeiting.
– Full CO/CQ documents on Ringfeder RfN 7013.0.
– Lock joints are always available, fast delivery.
– Provide technical drawings upon request.
– Dedicated support and advice from a team of professional technicians.
– Free consultation on optimal solutions for the factory.
– Provide genuine catalogs.
– Free conversion of technical parameters upon request.
– Nationwide delivery 24/7, minimizing machine downtime.
– Professional fine-tuning workshop upon request.

2. Dai Hong Phat Corp. is the specialized representative for supplying all Locking Assemblies Ringfeder in Vietnam:

– Dai Hong Phat Company is the exclusive importer and distributor of all 100% genuine Ringfeder products throughout Vietnam and the Southeast Asia region. (Authorized Distributor for Ringfeder Products in Vietnam, Laos, Cambodia, Philippines, …).
– With over 15 years of reputable service, Dai Hong Phat ensures customers acquire Locking Assemblies RfN 7013.0 that are 100% authentic, high-quality, and competitively priced in the market.

3. Characteristics of Locking Assemblies Ringfeder RfN 7013.0:

– The Locking Assemblies RfN 7013.0 are manufactured by Ringfeder/Germany.
– Inner diameter d: 19-150 mm
– Outer diameter D: 47-200 mm
– Total length L: 37-77 mm
– Torque T: 285-28,500 Nm.
– Designed in a single taper form, with self-locking capability, providing excellent self-centering and concentricity, while increasing torque.
– High concentricity accuracy and easy removal, the Ringfeder RfN 7013 provides good concentricity between tightly clamped parts. The flange is reinforced at the limit point. This prevents bending and lifting of the inner ring during installation, ensuring secure removal.
– High-speed rotation – the Ringfeder RfN 7013 locking assembly remains intact during assembly, making it suitable for applications with higher rotational speeds.
– High radial load – the material strength of the locking assembly makes it particularly suitable for applications with high radial loads.

View more product “Locking Assemblies RfN 7013.1“

FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT:
SALES DEPARTMENT
HOTLINE: +84906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN

4. Applications of Locking Assemblies RfN 7013.0:

Locking Assemblies RfN 7013.0 are commonly used in various industrial applications such as power transmission systems, machinery, automotive, material handling, mining, construction, packaging, printing, agriculture, renewable energy, and marine sectors. They ensure secure and precise shaft-hub connections, even in high-speed and high-load conditions, making them versatile components in diverse engineering environments.

5. Technical of Locking Assemblies RfN 7013.0:

Catalogue Ringfeder RfN 7013				Installation Khớp khóa trục Ringfeder RfN 7013

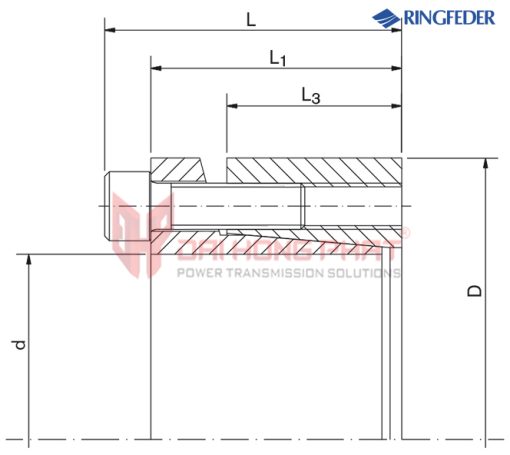

*Technical drawing of Locking Assembly RfN 7013.0*

Ringfeder RfN 7013.0 locking assembly specifications:

Dimensions [mm]				TKN	T_A [Nm]	Gw [kg]	Tmax [Nm]
d x D	L	L1	L3	[Nm]	T_A [Nm]	Gw [kg]	Tmax [Nm]
19 x 47	37	31	21,7	285	17	0.29	320
20 x 47	37	31	21,7	300		0.29	340
22 x 47	37	31	21,7	330		0.27	370
24 x 50	37	31	21,7	420		0.31	480
25 x 50	37	31	21,7	440		0.3	500
28 x 55	37	31	21,7	490		0.36	560
30 x 55	37	31	21,7	530		0.34	600
32 x 60	37	31	21,7	740		0.41	850
35 x 60	37	31	21,7	810		0.38	930
38 x 65	37	31	21,7	890		0.44	1020
40 x 65	37	31	21,7	940		0.41	1080
42 x 75	46	38	25,3	1730	41	0.76	1980
45 x 75	46	38	25,3	1860		0.7	2130
48 x 80	46	38	25,3	1980		0.8	2270
50 x 80	46	38	25,3	2070		0.76	2380
55 x 85	46	38	25,3	2540		0.82	2920
60 x 90	46	38	25,3	2770		0.88	3180
65 x 95	46	38	25,3	3580		0.94	4110
70 x 110	60	50	33,4	5100	83	2.1	5860
75 x 115	60	50	33,5	5460		2.2	6270
80 x 120	60	50	33,6	5850		2.3	6720
85 x 125	60	50	33,7	7450		2.4	8560
90 x 130	60	50	33,8	7900		2.6	9080
95 x 135	60	50	33,9	9900		2.7	11380
100 x 145	68	58	40.8	11000		3.7	12650
110 x 155	68	58	40.8	12100		4	13910
120 x 165	68	58	40.8	15700		4.3	18050
130 x 180	77	65	45,4	20700		5.9	23800
140 x 190	77	65	45,4	22500		6.3	25870
150 x 200	77	65	45,4	28500		6.7	32770
