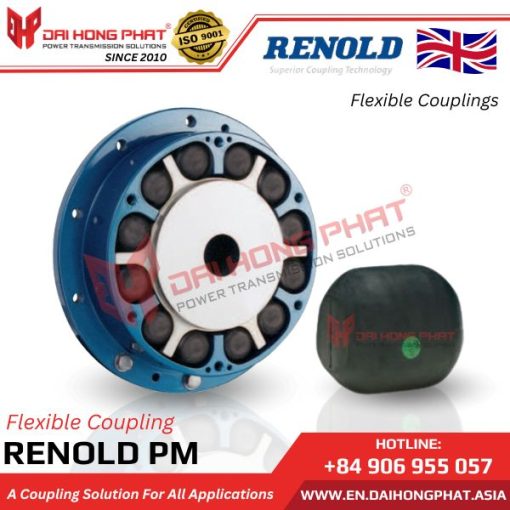

3. Characteristics of Renold PM Flexible Coupling:
– The Renold PM flexible coupling is manufactured by Renold/England.
– The Renold PM coupling is made of steel.
– Maximum torque: 7000 kNm.
– The driving flange, ranging from PM60 and including PM7000, is forged steel to BS970 grade 070 M55.
– The driving flange from PM90 to PM7000, and all internal and external components up to PM7000, are cast steel to BS 3100 grade A4.
– The rubber elements are fully encapsulated and individually encased with options for grade and hardness, with styrene-butadiene rubber with a hardness of 60 (SM60) being the standard. Rubber elements are loaded in compression.
– It protects and prevents controller failure under the influence of high torque passing through.
– Ensures continuous operation of the drilling machine in case of unfortunate rubber breakdown or damage.
– No lubrication or adjustment is required, resulting in low operating costs.
– Achieves low vibration loads in the transmission components by selecting optimal stiffness characteristics.
– Eliminates torque amplification by pre-compressing the rubber elements.
– Allows for axial and radial misalignment between the driving and driven machinery.
View more product “Rubber Bolck Flexible Coupling PM“
| FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT: SALES DEPARTMENT HOTLINE: (+84) 0906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN |
4. Applications of Renold PM Flexible Coupling:
The Renold PM flexible coupling is specially designed for heavy-duty industrial applications, providing exceptional protection against severe impact loads and vibrations. The Renold PM range is used in industries such as metal manufacturing, mining and mineral processing, pumps, compressors, cranes and hoists, pulp and paper industry, and heavy-duty industrial applications in general.
5. Technical of Renold PM Flexible Coupling:
| Catalogue Renold PM Coupling |
Installation Renold PM Coupling |
||||||
 |
|

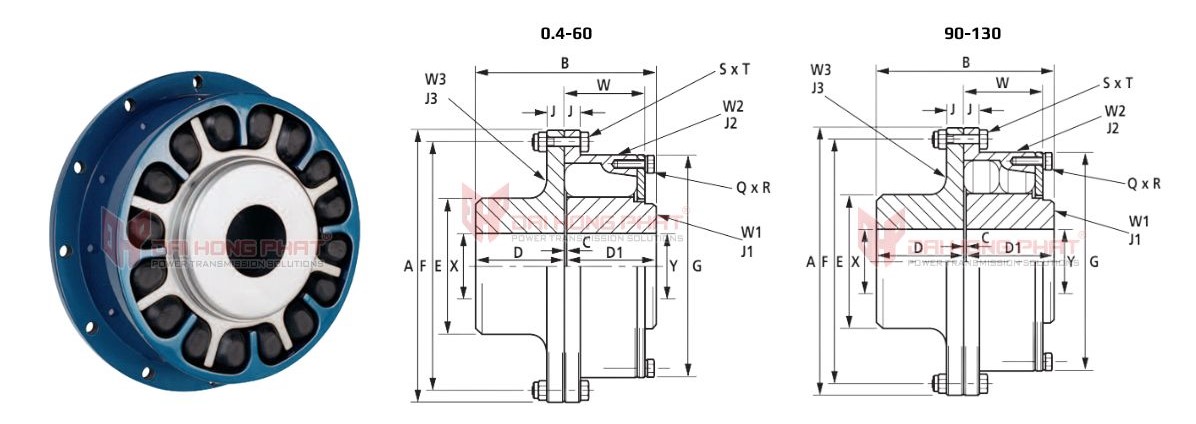

Technical drawing of Renold PM Flexible Coupling
| COUPLING SIZE | 0.4 | 0.7 | 1.3 | 3 | 6 | 8 | 12 | 18 | 27 | 40 | 60 | 90 | 130 | |||||||||||||||
| DIMENSIONS (mm) |
A | 161.9 | 187.3 | 215.9 | 260.3 | 260 | 302 | 338 | 392 | 440 | 490 | 568 | 638 | 728 | ||||||||||||||
| B | 103 | 110 | 130 | 143 | 175 | 193 | 221.5 | 254 | 290.5 | 329 | 377.5 | 432.5 | 487 | |||||||||||||||
| C | 1 | 2 | 2 | 3 | 3 | 3 | 3.5 | 4 | 4.5 | 5 | 5.5 | 6.5 | 7 | |||||||||||||||
| D | 51 | 54 | 64 | 70 | 86 | 95 | 109 | 125 | 143 | 162 | 186 | 213 | 240 | |||||||||||||||
| D1 | 51 | 54 | 64 | 70 | 86 | 95 | 109 | 125 | 143 | 162 | 186 | 213 | 240 | |||||||||||||||
| E | 76 | 92 | 108 | 122 | 135 | 148 | 168 | 195 | 220 | 252 | 288 | 330 | 373 | |||||||||||||||
| F | 146 | 171.4 | 196.8 | 235 | 240 | 276 | 312 | 360 | 407 | 458 | 528 | 598 | 680 | |||||||||||||||
| G | 133 | 157 | 181 | 214.3 | 222 | 245 | 280 | 320 | 367 | 418 | 479 | 548 | 620 | |||||||||||||||
| J | 9.5 | 11 | 12 | 14.5 | 11 | 13.5 | 14 | 16 | 18.5 | 21 | 24 | 26.5 | 31 | |||||||||||||||
| Q | 5 | 5 | 6 | 6 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | |||||||||||||||
| R | M8 | M8 | M8 | M8 | M8 | M10 | M12 | M16 | M16 | M16 | M20 | M20 | M24 | |||||||||||||||
| S | 8 | 8 | 8 | 8 | 12 | 12 | 12 | 12 | 12 | 16 | 12 | 16 | 16 | |||||||||||||||
| T | M8 | M8 | M8 | M8 | M8 | M12 | M12 | M16 | M16 | M16 | M20 | M20 | M24 | |||||||||||||||
| W | 36 | 39 | 46 | 60 | 81 | 89 | 102 | 118 | 134 | 152.7 | 175 | 200 | 226 | |||||||||||||||
| MAX. X & Y (4) | 41 | 51 | 64 | 73 | 85 | 95 | 109 | 125 | 143 | 162 | 186 | 213 | 240 | |||||||||||||||
| MIN. X (5) | 27 | 27 | 35 | 37 | 50 | 62 | 68 | 80 | 90 | 105 | 120 | 140 | 160 | |||||||||||||||
| MIN. Y | 27 | 27 | 37 | 40 | 50 | 55 | 65 | 70 | 85 | 105 | 110 | 140 | 160 | |||||||||||||||
| RUBBER ELEMENTS |
Per Cavity Per Coupling |
1 10 |
1 10 |
1 12 |
1 12 |
1 16 |
1 16 |
1 16 |
1 16 |
1 16 |
1 16 |
1 16 |
2 32 |
2 32 |
||||||||||||||
| MAXIMUM SPEED (rpm) (1) | 7200 | 6300 | 5400 | 4500 | 4480 | 3860 | 3450 | 2975 | 2650 | 2380 | 2050 | 1830 | 1600 | |||||||||||||||
| WEIGHT (3) (kg) |
W1 W2 W3 TOTAL |
1.9 2.0 2.8 6.7 |
2.8 2.9 4.3 10.0 |
4.5 4.6 6.6 15.7 |
6.9 6.0 10.0 22.9 |
8.9 6.55 10.84 26.3 |
11.62 10.92 15.14 37.7 |
17.74 15.86 21.24 54.8 |
27.0 24.59 33.03 84.6 |
40.18 35.34 47.80 123.3 |
59.5 50.47 69.32 179.3 |
89.45 77.80 104.63 271.9 |
132.0 111.96 151.78 395.7 |
191.11 165.24 222.39 578.7 |
||||||||||||||
| INERTIA (3) (kg m2) |
J1 J2 J3 |
0.002 0.006 0.005 |
0.004 0.014 0.013 |
0.008 0.019 0.025 |
0.018 0.049 0.05 |
0.026 0.072 0.058 |
0.050 0.149 0.116 |
0.101 0.273 0.194 |
0.203 0.560 0.406 |
0.392 1.041 0.748 |
0.756 1.898 1.345 |
1.491 3.867 2.719 |
2.872 7.188 4.955 |
5.330 13.680 9.565 |
||||||||||||||
| ALLOWABLE MISALIGNMENT (2) RADIAL (mm) AXIAL (mm) CONICAL (degree) |
0.8 0.8 0.5 |
0.8 1.2 0.5 |
0.8 1.2 0.5 |
1.2 1.2 0.5 |
1.5 1.25 0.5 |
1.6 1.5 0.5 |
1.6 1.75 0.5 |
1.6 2.0 0.5 |
1.9 2.25 0.5 |
2.1 2.5 0.5 |
2.4 2.75 0.5 |
2.8 3.25 0.5 |
3.3 3.5 0.5 |
|||||||||||||||
| COUPLING SIZE | 180 | 270 | 400 | 600 | 850 | 1200 | 2000 | 3500 | 4700 | 7000 | ||||||
| DIMENSIONS (mm) |
A | 798 | 925 | 1065 | 1195 | 1143 | 1320.8 | 1574.8 | 2006.6 | 2006.6 | 2006.6 | |||||
| B | 544 | 623 | 710.5 | 812 | 831 | 869 | 1035 | 1245 | 1447 | 1877 | ||||||
| C | 8 | 9 | 10.5 | 12 | 6.35 | 6.35 | 6.35 | 12.7 | 12.7 | 12.7 | ||||||
| D | 268 | 307 | 350 | 400 | 406 | 425 | 508 | 507 | 711 | 875 | ||||||
| D1 | 268 | 307 | 350 | 400 | 406 | 425 | 508 | 507 | 711 | 875 | ||||||
| E | 415 | 475 | 542 | 620 | 648 | 762 | 965 | 1016 | 1220 | 1370 | ||||||
| F | 750 | 865 | 992 | 1122 | 1066.8 | 1239.9 | 1473.2 | 1892.3 | 1892.3 | 1892.3 | ||||||
| J | 33.5 | 36 | 43 | 52 | 44.5 | 50.8 | 63.5 | 76 | 76 | 76 | ||||||
| Q | 12 | 12 | 12 | 12 | 20 | 20 | 20 | 24 | 24 | 24 | ||||||
| R | M24 | M30 | M36 | M36 | M30 | M30 | M36 | M36 | M36 | M36 | ||||||
| S | 20 | 20 | 20 | 24 | 20 | 20 | 20 | 24 | 24 | 24 | ||||||
| T | M24 | M30 | M36 | M36 | M36 | M36 | M45 | M48 | M48 | M48 | ||||||
| W | 252 | 288.5 | 328 | 376 | 425.5 | 444.5 | 514.4 | 520.7 | 643.5 | 1003.3 | ||||||
| MAX. X & Y (4) | 268 | 307 | 350 | 400 | 400 | 457 | 559 | 612 | 711 | 813 | ||||||
| MIN. X | 167 | 192 | 232 | 285 | 343 | 381 | 457 | 533 | 609 | 686 | ||||||
| MIN. Y | 170 | 195 | 235 | 285 | 343 | 381 | 457 | 533 | 609 | 686 | ||||||
| RUBBER ELEMENTS |
Per Cavity Per Coupling |
2 32 |
2 32 |
2 32 |
2 32 |
2 48 |
3 78 |
3 84 |
3 96 |
4 128 |
6 192 |
|||||
| MAXIMUM SPEED (rpm) (1) | 1460 | 1260 | 1090 | 975 | 1000 | 870 | 725 | 580 | 580 | 580 | ||||||
| WEIGHT (3) (kg) TOTAL |
W1 W2 W3 | 262.3 266.78 297.4 826.5 |
389.0 414.0 437.3 1240.3 |
562.4 633.4 651.2 1847 |
813.3 909.1 946.7 2669.1 |
1059.9 710.3 929.8 2700.0 |
1633.3 965.1 1388.8 3987.2 |
2594.6 1670.9 2631.4 6896.9 |
5263.3 2732.2 4185.5 12181.0 |
6450.8 3921.2 7196.1 17568.1 |
8644.4 4895.6 7742.9 21282.9 |
|||||
| INERTIA (3) (kg m2) |
J1 J2 J3 |
9.14 28.80 15.35 |
17.88 59.30 29.89 |
34.03 119.5 60.66 |
65.54 220.2 115.7 |
103.97 163.89 105.01 |
221.36 306.74 212.24 |
493.67 743.28 587.70 |
1653.41 2075.48 1466.3 |
2145.76 3056.46 2637.60 |
3063.85 3755.94 2927.67 |
|||||
| ALLOWABLE MISALIGNMENT (2) RADIAL (mm) AXIAL (mm) CONICAL (degree) |
3.5 4.0 0.5 |
3.9 4.5 0.5 |
4.6 5.25 0.5 |
5.2 6.0 0.5 |
2.8 3.2 0.5 |
3.3 3.2 0.5 |
3.3 4.8 0.5 |
3.3 6.3 0.5 |
3.3 6.3 0.5 |
3.3 6.3 0.5 |
||||||
Customers purschasing Renold PM Coupling at Dai Hong Phat.corp enjoy the following benefits?
– Established in 1864, Renold consolidated its coupling manufacturing facilities in the United Kingdom into its present base in Cardiff by 2017. Renold is currently renowned in more than 23 countries worldwide.
– Dai Hong Phat Corp. collaborates with Renold, a high-quality coupling equipment manufacturer from England.
– We assure our customers that products are 100% genuine, with new quality, certification, and clear origin.
– Our core value in cooperation is to bring significant benefits to customers in shock-absorbing rubber solutions in Vietnam. Renold PM Flexible Coupling distributed by Dai Hong Phat is authentic and directly sourced.
