1. Dai Hong Phat Corp. is a representative specializing in providing Rathi-Lovejoy Cone-Flex RC/RCT coupling products:
– Dai Hong Phat cooperates with partner Rathi-Lovejoy from India, a brand specializing in providing genuine overload protection devices with outstanding performance.
– Dai Hong Phat is the importer and distributor of all 100% genuine bolt and nut couplings of the Rathi-Lovejoy brand throughout Vietnam.
– Dai Hong Phat commits to more than 15 years of prestige, ensuring to provide customers with 100% genuine Rathi-Lovejoy Cone-Flex RC/RCT Pin & Bush coupling products. With high quality and the best price on the market.
2. Features of Rathi-Lovejoy Cone-Flex RC/RCT Pin & Bush Coupling:
– Cone-Flex RC/RCT Pin & Bush Coupling is manufactured by Rathi-Lovejoy/India
– Operating power: 1047 kw / 100 rpm
– Maximum shaft bore diameter: 286 mm
– Maximum torque: 99,981 Nm
– Cone-Flex Coupling consists of elastic “Cone-Flex” rings with pins & bushes. The two shafts have graded cast iron flanges. These “Cone-Flex” rings are specially shaped to allow the rubber to deflect in all directions and provide four times the torsional flexibility of conventional bushings.
– Cone-Flex RC/RCT Coupling is easy to assemble/disassemble and does not require lubrication of any kind.
– Reduces vibration and noise arising from severe torque fluctuations.
View more product: “Rathi-Lovejoy B-Flex RB Pin & Bush Coupling”
View more product: “Rathi-Lovejoy B-Flex LBC Pin & Bush Coupling”
| FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT: SALES DEPARTMENT HOTLINE: +84 906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN |
3. Applications of Cone-Flex RC/RCT coupling:
Rathi-Lovejoy Cone-Flex RC/RCT coupling are now widely used in the market in applications such as fans, air compressors, pumps, cranes, construction machinery, conveyors, concrete mixers, textile dyeing machines, hoists and steel industry equipment, etc.
4. Specifications of Rathi-Lovejoy Cone-Flex RC/RCT Coupling:

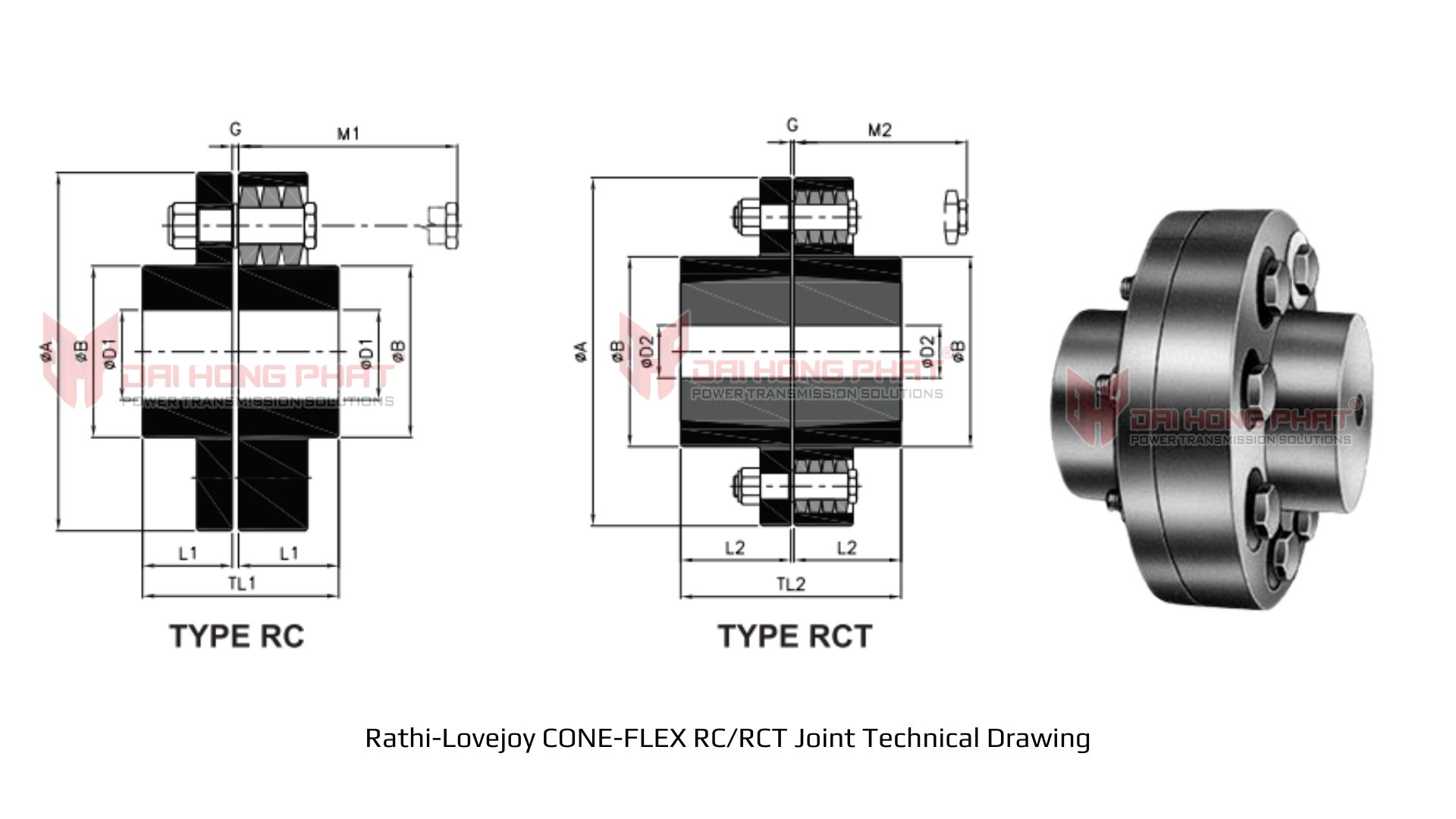

| Catalogue Rathi-Lovejoy Cone-Flex RC/RCT Coupling |
Installation instructions Rathi-Lovejoy Cone-Flex RC/RCT Coupling |
 |
|
Rathi-Lovejoy Cone-Flex RC/RCT Coupling Specification Table:
| Type | Couplings (Model) |
Max Speed rpm |
Φ D1 (RC) | Φ D2 (RCT) | Dimensions (mm) | ||||||
| Min. Bore | Max. Bore | Min. Bore | Max. Bore | ΦA | ΦB | G | L1 | L2 | |||
| RC | 020 | 6500 | 12 | 22 | – | – | 89 | 35 | 3 | 33 | – |
| 030 | 5470 | 12 | 32 | – | – | 127 | 51 | 3 | 41 | – | |
| 038 | 5260 | 15 | 40 | – | – | 132 | 64 | 3 | 48 | – | |
| RC/RCT | 042 | 4750 | 15 | 44 | 12 | 30 | 146 | 70 | 3 | 56 | 38 |
| 048 | 4050 | 21 | 52 | 14 | 38 | 171 | 81 | 3 | 61 | 38 | |
| 058 | 3600 | 21 | 62 | 14 | 45 | 193 | 97 | 3 | 68 | 45 | |
| 070 | 3220 | 21 | 74 | 16 | 60 | 216 | 117 | 3 | 76 | 64 | |
| 075 | 2730 | 28 | 80 | 16 | 60 | 254 | 127 | 3 | 88 | 64 | |
| 085 | 2480 | 28 | 92 | 24 | 75 | 279 | 147 | 3 | 100 | 76 | |
| 105 | 2100 | 34 | 114 | 35 | 90 | 330 | 180 | 3 | 117 | 89 | |
| 120 | 1880 | 61 | 130 | 40 | 100 | 370 | 206 | 6 | 132 | 102 | |
| 135 | 1660 | 67 | 144 | 55 | 110 | 419 | 230 | 6 | 147 | 114 | |
| 150 | 1520 | 82 | 160 | 70 | 125 | 457 | 256 | 6 | 165 | 127 | |
| RC/RCT | 170 | 1300 | 96 | 184 | – | – | 533 | 292 | 6 | 188 | – |
| 190 | 1170 | 122 | 206 | – | – | 597 | 330 | 6 | 211 | – | |
| 215 | 1050 | 135 | 230 | – | – | 660 | 368 | 6 | 237 | – | |
| 240 | 800 | 152 | 254 | – | – | 737 | 407 | 6 | 264 | – | |
| 265 | 700 | 165 | 286 | – | – | 826 | 457 | 6 | 292 | – | |
5. Why choose Dai Hong Phat as a supplier for Rathi-Lovejoy Cone-Flex RC/RCT coupling?
– You will buy 100% genuine bolt and nut couplings imported directly from the manufacturer by Dai Hong Phat.
– Dai Hong Phat will protect your risks against counterfeit Rathi-Lovejoy products.
– Dai Hong Phat provides full CO/CQ documents for Cone-Flex RC/RCT coupling.
– Rathi-Lovejoy coupling products are always available in Dai Hong Phat’s warehouse, so they will be delivered quickly to customers.
– Dai Hong Phat will provide customers with technical drawings of the product (when requested).
– Dai Hong Phat always supports and consults customers wholeheartedly about the product.
– Dai Hong Phat is always ready to provide free consultation on optimal solutions for customers’ factories.
– Dai Hong Phat will provide you with the genuine Catalogue of bolt and nut couplings.
– Dai Hong Phat offers free conversion of technical specifications and dimensions of Rathi-Lovejoy products according to your requirements.
– Dai Hong Phat delivers nationwide 24/7, helping you to minimize downtime.
– Dai Hong Phat has a professional fine-tuning workshop according to your specific requirements.
