HENFEL-RINGFEDER HYDRAULIC COUPLINGS TYPE HCP WITH PULLEY

The Henfel Hydrodynamic Couplings Type HCP-With Pulley are adept at smooth acceleration without the need for oversized motors. It limits the maximum torque to effectively protect both the driving motor and the driven machinery and products in production.

Dai Hong Phat Corp Shaft Coupling is an authorized representative and genuine distributor of Henfel-Ringfeder Germany in Vietnam, Laos, Cambodia, Philippines and Bangladesh.

Description

5/5 - (1 vote)

Let’s learn about Henfel-Ringfeder Hydraulic Couplings type HCP with pulley with Dai Hong Phat through the following article!

1. About Dai Hong Phat – Ringfeder Germany

– Dai Hong Phat is the official authorized representative of Ringfeder Germany in Vietnam (Ringfeder Vietnam), Laos, Cambodia, Philippines and Bangladesh. We provide genuine transmission shaft coupling solutions that meet international standards, helping to optimize the performance and durability of machinery systems.
– Ringfeder Germany – the world’s leading brand in transmission and damping solutions, with over 100 years of history of creation and innovation. Founded in 1922, with the first product “friction spring”, Ringfeder has become a globally prestigious symbol of quality and reliability.
– At the end of 2015, HENFEL was acquired by Ringfeder Germany Group, one of the famous industrial groups in the global market for transmission equipment.
– Henfel-Ringfeder Hydraulic Couplings type HCP with pulley products supplied by Dai Hong Phat are 100% genuine imported, with full CO/CQ, meeting international quality standards.

An authorized distributor for Ringfeder product in Vietnam Certificate of Dai Hong Phat Corp is an authorized representative of Ringfeder Germany in Vietnam

Learn more about: Other Henfel-Ringfeder Hydraulic Couplings

2. Characteristics of the Henfel Hydrodynamic Couplings Type HCP-With Pulley:

– The Henfel Hydrodynamic Couplings Type HCP-With Pulley are manufactured by Ringfeder Henfel/Brazil.
– Low inertia electric motor, even when the driven machine is loaded or stopped, the motor immediately slows down.
– The coupling can smoothly accelerate even with heavy loads without requiring oversized motors.
– Maximum torque.
– Henfel Hydrodynamic Couplings adjust the maximum torque transmitted by simply adjusting the mass of the operating medium inside the coupling.
– Even load distribution among all motors in the case of multiple drives. Startup can be sequenced to avoid high power consumption levels.
– Fully protected against overheating. In case the secondary wheel is blocked (overload), the fuse plug activates the drum brake of the device, interrupting the transmission process. Thermal electrical devices can be used to monitor temperature and shut down the drive at the set maximum temperature.
– Free power transmission, as there is no mechanical contact between the primary and secondary wheels.
– Excellent economy through the protection of all electrical and mechanical transmission components, even during frequent speed changes or reverse rotations occur at high frequency.

View more product “Henfel Hydrodynamic Couplings Type HCP-R“

FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT:
SALES DEPARTMENT
HOTLINE: +84 906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN

3. Applications of the Henfel Hydrodynamic Couplings Type HCP-With Pulley:

The hydraulic coupling limits the maximum torque to effectively protect both the engine and the driven machinery and the products being produced. The Henfel Hydrodynamic Couplings Type HCP-With Pulley are utilized across key industrial sectors, expanding industrial facilities, and supported by technical assistance from mechanical engineers.

View more product “Henfel Hydrodynamic Couplings Type HLF-R“

4. Technical of the Henfel Hydrodynamic Couplings Type HCP-With Pulley:

Catalogue Henfel HCP With Pulley				Installation Henfel HCP With Pulley

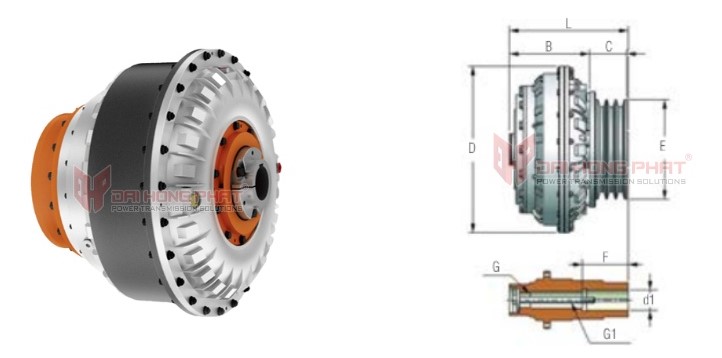

*Technical drawing of the Henfel Hydrodynamic Couplings Type HCP-With Pulley*

SIZE	D	L	B	d1max	Emin	Fmax	Cmax	G	G1	WEIGHT (kgf)*
5	232	186	121	40	90	80	65	M16	M10	8
10	262	193	123	42	95	80	70	M16	M10	11.5
15	303	228	133	48	110	110	95	M16	M16	23
30	332	270	150	55	110	110	120	M20	M16	34
50	376	299.5	169.5	65	114	110	130	M20	M20	41
75	400	331	221	65	205	110	110	G1”	M20	54.5
100	460	403.5	243.5	80	215	140	160	G 1.1/4”	M20	87
150	528	425	265	80	215	140	160	G 1.1/4”	M20	98.5
250	574	518	317	80	263	170	201	G 1.1/4”	M20	146
350	634	573.5	279.5	80	295	170	294	G 1.1/2”	M24	232
500	719	540	348	125	453	210	192	G 1.1/2”	M24	330
