1. Dai Hong Phat Corp. is a representative specializing in supplying all Cross More Overload Couplings Vietnam:
– Cross Morse is a brand from the UK specializing in manufacturing industrial products, overload protection equipment, various flexible shaft couplings, and other specialized power transmission products.
– Our company, Dai Hong Phat Corp. collaborates with Cross Morse, a UK-based partner specializing in supplying genuine, high-performance overload protection equipment. (Authorized Distributor for Cross Morse Products in Vietnam).
– Dai Hong Phat Company is the importer and distributor of all 100% genuine Safety Couplings products from the Cross Morse brand in Vietnam.
– Dai Hong Phat Company commits to over 15 years of reputation, ensuring customers can purchase 100% genuine Overload Couplings Type CS with high quality and the best prices in the market.
2. Characteristics of the Overload Couplings Type CS:
– The overload couplings Type CS are manufactured by Cross Morse/UK.
– The Cross Morse Type CS series of overload protection couplings consists of:
+ Standard Type: Designed in 6 sizes for bore diameters up to 65mm, with a torque range from 2.5 to 1800Nm, providing optimal speed and torque capabilities.
+ Mini Type: Designed in 4 sizes for bore diameters up to 45mm, with a torque range from 2.5 to 400Nm, offering a lower-cost option for slower speed drive applications.
– All types are designed with overload protection functions that allow alternative methods to connect driven components. Four operating modes of the drive are available to meet the requirements of various applications.
View more product “Torque Limiters Type 700M“
| FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT: SALES DEPARTMENT HOTLINE: +84906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN |
3. Funtions of the Overload Couplings Type CS:
The Cross Morse Overload Couplings Type CS comprise the following series:
– Cross Morse CSF Series: Utilizes ball bearings for power transmission and employs fixed-ratchet mechanisms at a specific position to ensure that the next overload event occurs. The ratchet mechanism allows for high-speed operation and easy recovery of drive force in case of overload caused by inertia during the next start, while still ensuring synchronization between input and output.
– Cross Morse CSY Series: Constructed with 7 rollers to transmit force, ensuring that there is only one engagement position of the drive, allowing for complete synchronization between the motor and the drive coupling.
– Cross Morse CSL Series: Designed with a retaining ring to prevent drive disengagement but allows enough movement to trigger a limit switch. Suitable for applications where components pass through each other’s path, as synchronization is maintained even when the coupling is overloaded. The coupling also controls the inertial drive motion.
– Cross Morse CSZ Series: The coupling disengages partially upon overload when subjected to external forces. This allows the coupling to operate at higher speeds and is also used in applications where stopping the coupling is undesirable. The requirement for external force ensures that the machine can be inspected before restarting.
4. Technical of the Overload Couplings Type CS:
| Catalogue Safety Coupling Type CS |
Installation Safety Coupling Type CS |
 |
|

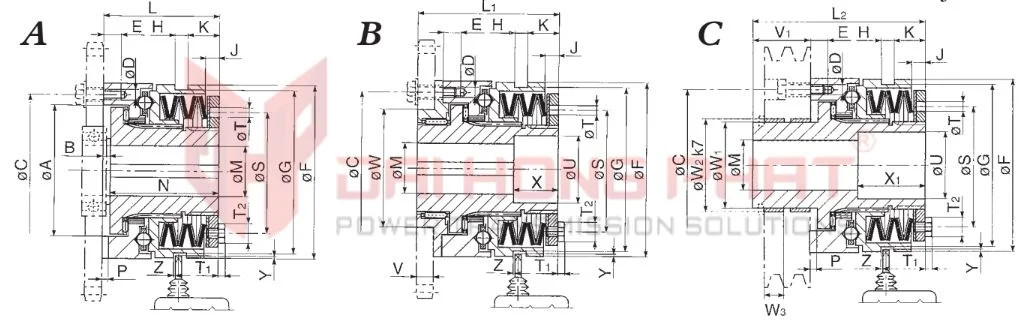

| Models* A, B & C |
Torque Range according to Spring Selection | Max. Speed | Bore Size | |||||||
| S | M | L | U | R | S/M | L/U | R | min | max | |
| Nm | rpm | mm | ||||||||
| CSF20 CSY20 CSL20 |
2.5-5.0 5-10 5-10 |
5-10 10-20 10-20 |
10-20 20-40 20-40 |
20-40 | 3300 1000 4000 |
1800 500 3000 |
7 | 20 | ||
| CSF25 CSY25 CSL25 CSZ25 |
6-12 12-25 12-25 12-25 |
12.3 25-50 25-50 25-50 |
25-55 50-100 50-100 50-100 |
55-100 | 2900 950 3900 5000 |
1450 450 2900 5000 |
10 | 25 | ||
| CSF35 CSY35 CSL35 CSZ35 |
12-25 25-50 25-50 25-50 |
25-50 50-100 50-100 50-100 |
50-120 100-200 100-200 100-200 |
120-200 | 2400 800 3300 4000 |
1200 400 2400 4000 |
14 | 35 | ||
| CSF45 CSY45 CSL45 CSZ45 |
25-50 50-100 50-100 50-100 |
50-100 100-200 100-200 100-200 |
100-250 200-400 200-400 200-400 |
250-400 | 2000 650 2800 3500 |
1000 300 2000 3500 |
18 | 45 | ||
| CSF55(R) CSY55(R) CSL55(R) CSZ55 |
50-100 100-200 100-200 100-200 |
100-200 200-400 200-400 200-400 |
200-500 400-800 400-800 400-800 |
500-800 | 800-2000 800-2000 800-2000 |
1600 550 2300 3500 |
850 250 1600 3000 |
90 90 700 |
24 | 55 |
| CSF65(R) CSY65(R) CSL65(R) CSZ65 |
85-200 170-400 170-400 170-400 |
170-500 350-900 350-900 350-900 |
300-1000 700-1800 700-1800 700-1800 |
700-1800 | 1200-3400 1200-3400 1200-3400 |
1400 400 1800 2300 |
700 150 1400 2300 |
70 70 600 |
30 | 70* |
| CSF80(R) CSY80(R) CSL80(R) CSZ80 |
180-480 300-750 300-750 300-750 |
360-960 600-1500 600-1500 600-1500 |
720-1950 1200-3000 1200-3000 1200-3000 |
1600-3300 | 2900-5800 2900-5800 2900-5800 |
1200 150 1500 1600 |
600 80 1000 1600 |
40 40 400 |
40 | 80 |
| CSF100(R) CSY100(R) CSL100(R) CSZ100 |
250-520 550-110 550-110 550-110 |
500-1050 1100-2200 1100-2200 1100-2200 |
1000-2100 2200-4400 2200-4400 2200-4400 |
2000-3600 | 3000-8200 3000-8200 3000-8200 |
950 100 1300 1400 |
480 50 800 1400 |
30 30 300 |
50 | 110* |
5. Why choose Dai Hong Phat Corp as the supplier for Cross Morse Safety Couplings?
– You will purchase 100% genuine Overload Couplings Type CS directly imported from the manufacturer.
– You can rest assured because Dai Hong Phat will protect you against the risks of counterfeit products.
– You will receive full CO/CQ documentation for Crossmorse Products provided by Dai Hong Phat.
– Genuine Backlash-Free Torque Limiter are always available in Dai Hong Phat’s warehouse, ensuring prompt delivery to you.
– Dai Hong Phat will provide you with technical drawings of the purchased Cross Morse Safety Couplings upon request.
– We always provide dedicated support to our customers with a team of highly skilled technical professionals.
– We offer free consultation on optimizing solutions for your plant regarding Safety Couplings.
– Dai Hong Phat will provide you with the genuine product catalogue.
– We will freely convert the technical parameters and dimensions of products according to your requirements.
– Dai Hong Phat provides nationwide 24/7 delivery, minimizing downtime for your machinery.
– Our professional machining workshop can tailor products to your specific requirements.
