1. What makes Dai Hong Phat Corp. the ideal choice for your Locking Assembly MAV supplier?
– You will be able to purchase 100% genuine Locking Assembly MAV 5061 directly imported by Dai Hong Phat from the manufacturer.
– You can trust Dai Hong Phat to protect you from risks and counterfeit products of MAV.
– Dai Hong Phat provides complete CO/CQ documents for Locking Assembly MAV.
– MAV products are always available in Dai Hong Phat’s warehouse, ensuring fast delivery to customers.
– Dai Hong Phat will provide technical drawings of the MAV 5061 products you purchase upon request.
– Dai Hong Phat offers dedicated support and consultation to customers regarding bolted flexible couplings, with a team of highly skilled technical specialists.
– Dai Hong Phat provides free consultation on optimal solutions for your plant regarding genuine MAV Products.
– Dai Hong Phat provides customers with genuine Locking Assembly MAV catalogues.
– Dai Hong Phat offers free technical parameter conversion and customization of MAV 4005 according to customer requirements.
– Dai Hong Phat provides nationwide 24/7 delivery services, minimizing downtime for your machinery.
– Dai Hong Phat has a professional workshop for custom machining according to customers’ specific requirements.
2. Dai Hong Phat Corp. is the specialized representative for supplying all Locking Assembly MAV products throughout Vietnam:
– Dai Hong Phat is the exclusive importer and distributor of all 100% genuine MAV brand Locking Assembly products across Vietnam and the Southeast Asia region.
– With over 10 years of reputable service, Dai Hong Phat ensures customers acquire 100% authentic Locking Assembly MAV 5061 products with high quality and the best prices in the market.

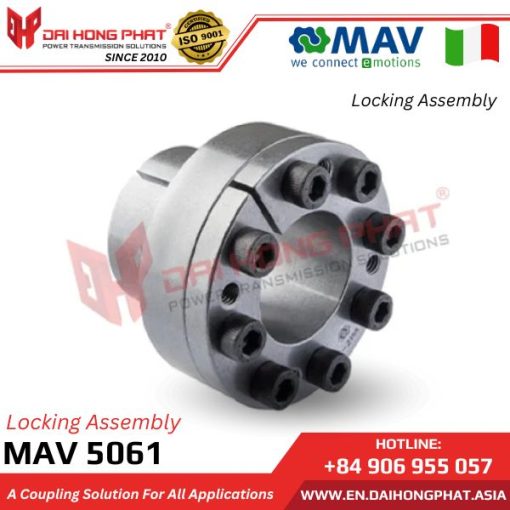

3. Characteristics of the MAV 5061 Locking Assembly:
– The Locking Assembly MAV 5061 is manufactured by MAV/Italy.
– Inner diameter d: 6-130 mm.
– Outer diameter D: 14-165 mm.
– Total length L: 26-140 mm.
– Torque T: 21-26,200 Nm.
– Tolerance: shaft h7-h11; center bore H7-H11.
– The locking assembly MAV 5061 features self-centering and self-locking capabilities. It maintains a fixed center shaft position during tightening, making it suitable for connecting thin-walled shafts.
– MAV 5061 is easily removable and reassembled when the slots on the inner and outer rings are aligned. The device is accurately assembled. No shaft displacement occurs during the locking process.
View more product “Locking Assembly MAV 2500“
| FOR ANY INQUIRIES OR QUOTATION REQUESTS, PLEASE CONTACT: SALES DEPARTMENT HOTLINE: +84906 955 057 – EMAIL: INFO@DHP-CORP.COM.VN |
4. Applications of the MAV 5061 Locking Assembly:
The Locking Assembly MAV 5061 provides a frictional connection that securely tightens the shaft without requiring keyways, while also eliminating backlash between the equipment shaft and the hollow shaft. It is suitable for various applications such as gears, rollers, cams, levers, rotors, and more. MAV 5061 is ideal for transmitting torque, axial loads, bending moments, and radial loads either individually or in combination.

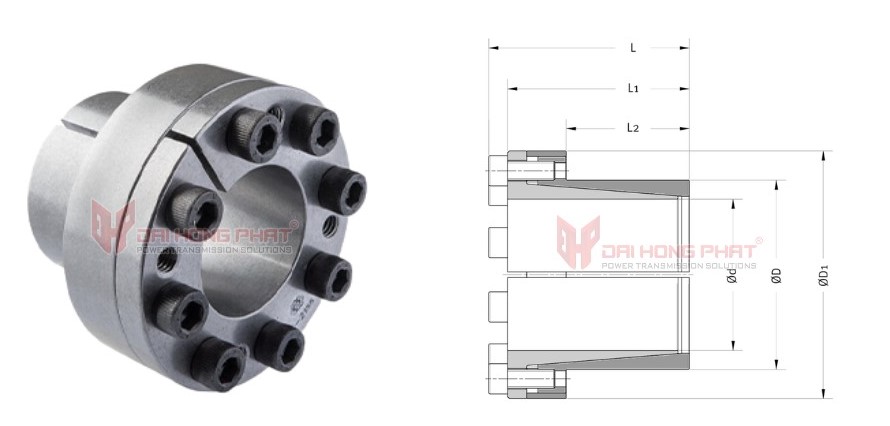

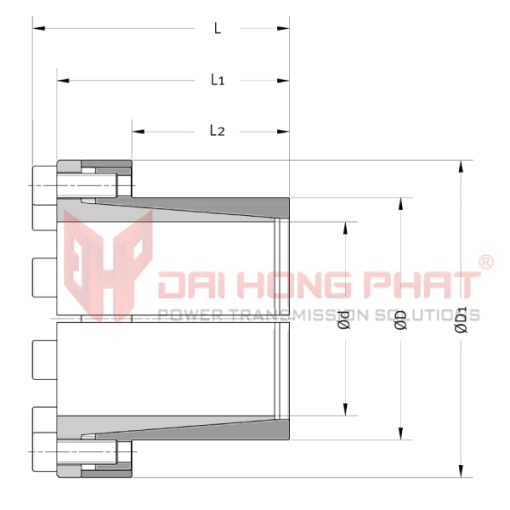

5. Technical of The MAV 5061 Locking Assembly:
| Catalogue MAV 5061 |
Installation MAV 5061 |
||||||
 |
|
| DIMENSIONS | SCREWS | PERFORMANCES | WEIGHT | ||||||||
| d mm x D mm | D1 mm |
L2 mm |
L1 mm |
L mm |
size | Ma Nm | Mt Nm | Fax kN | Ps MPa | Ph MPa | kg |
| 6 x 14 | 25 | 10 | 22.0 | 26.0 | M 4 | 5 | 21 | 7 | 273 | 134 | 0.04 |
| 7 x 15 | 27 | 12 | 25.0 | 29.0 | M 4 | 5 | 25 | 7 | 199 | 104 | 0.04 |
| 8 x 15 | 27 | 12 | 25.0 | 29.0 | M 4 | 5 | 28 | 7 | 177 | 104 | 0.05 |
| 9 x 16 | 29 | 14 | 27.0 | 31.0 | M 4 | 5 | 42 | 9 | 182 | 112 | 0.06 |
| 10 x 16 | 29 | 14 | 27.0 | 31.0 | M 4 | 5 | 47 | 9 | 166 | 112 | 0.06 |
| 11 x18 | 32 | 14 | 27.5 | 31.5 | M 4 | 5 | 52 | 9 | 149 | 99 | 0.07 |
| 12 x 18 | 32 | 14 | 27.5 | 31.5 | M 4 | 5 | 57 | 9 | 138 | 99 | 0.07 |
| 13 x 23 | 38 | 14 | 27.5 | 31.5 | M 4 | 5 | 61 | 9 | 122 | 78 | 0.11 |
| 14 x 23 | 38 | 14 | 27.5 | 31.5 | M 4 | 5 | 66 | 9 | 114 | 78 | 0.11 |
| 15 x 24 | 44 | 16 | 36.5 | 42.5 | M 6 | 17 | 130 | 17 | 167 | 115 | 0.20 |
| 16 x 24 | 44 | 16 | 36.5 | 42.5 | M 6 | 17 | 130 | 17 | 159 | 115 | 0.20 |
| 17 x 25 | 45 | 18 | 39.5 | 45.5 | M 6 | 17 | 190 | 22 | 179 | 131 | 0.20 |
| 18 x 26 | 47 | 18 | 39.5 | 45.5 | M 6 | 17 | 200 | 22 | 169 | 126 | 0.30 |
| 19 x 27 | 49 | 18 | 39.5 | 45.5 | M 6 | 17 | 210 | 22 | 160 | 122 | 0.30 |
| 20 x 28 | 50 | 18 | 39.5 | 45.5 | M 6 | 17 | 220 | 22 | 152 | 117 | 0.30 |
| 22 x 32 | 54 | 25 | 47.0 | 53.0 | M 6 | 17 | 250 | 22 | 100 | 74 | 0.40 |
| 24 x 34 | 56 | 25 | 47.0 | 53.0 | M 6 | 17 | 400 | 33 | 138 | 104 | 0.40 |
| 25 x 34 | 56 | 25 | 47.0 | 53.0 | M 6 | 17 | 420 | 33 | 133 | 104 | 0.40 |
| 28 x 39 | 61 | 25 | 47.0 | 53.0 | M 6 | 17 | 470 | 33 | 117 | 91 | 0.40 |
| 30 x 41 | 62 | 25 | 47.0 | 53.0 | M 6 | 17 | 500 | 33 | 109 | 86 | 0.40 |
| 32 x 43 | 65 | 25 | 47.0 | 53.0 | M 6 | 17 | 710 | 45 | 137 | 110 | 0.50 |
| 35 x 47 | 68 | 32 | 54.0 | 60.0 | M 6 | 17 | 780 | 45 | 99 | 79 | 0.50 |
| 38 x 50 | 72 | 32 | 54.0 | 60.0 | M 6 | 17 | 850 | 45 | 91 | 74 | 0.60 |
| 40 x 53 | 75 | 32 | 54.0 | 60.0 | M 6 | 17 | 890 | 45 | 86 | 70 | 0.70 |
| 42 x 55 | 78 | 32 | 54.0 | 60.0 | M 6 | 17 | 940 | 45 | 82 | 67 | 0.70 |
| 45 x 59 | 86 | 45 | 70.0 | 78.0 | M 8 | 41 | 1,900 | 82 | 102 | 82 | 1.10 |
| 48 x 62 | 87 | 45 | 70.0 | 78.0 | M 8 | 41 | 2,000 | 82 | 96 | 78 | 1.10 |
| 50 x 65 | 92 | 45 | 70.0 | 78.0 | M 8 | 41 | 2,100 | 82 | 91 | 75 | 1.30 |
| 55 x 71 | 98 | 55 | 81.0 | 89.0 | M 8 | 41 | 2,500 | 93 | 77 | 63 | 1.60 |
| 60 x 77 | 104 | 55 | 81.0 | 89.0 | M 8 | 41 | 2,800 | 93 | 70 | 58 | 1.80 |
| 65 x 84 | 111 | 55 | 81.0 | 89.0 | M 8 | 41 | 3,000 | 93 | 65 | 53 | 2.10 |
| 70 x 90 | 119 | 65 | 96.0 | 106.0 | M 10 | 83 | 5,300 | 152 | 84 | 69 | 2.80 |
| 75 x 95 | 126 | 65 | 96.0 | 106.0 | M 10 | 83 | 5,700 | 152 | 78 | 65 | 3.10 |
| 80 x 100 | 131 | 65 | 96.0 | 106.0 | M 10 | 83 | 8,100 | 203 | 98 | 83 | 3.20 |
| 85 x 106 | 137 | 65 | 96.0 | 106.0 | M 10 | 83 | 8,600 | 203 | 92 | 78 | 3.50 |
| 90 x 112 | 144 | 65 | 96.0 | 106.0 | M 10 | 83 | 9,100 | 203 | 87 | 74 | 3.90 |
| 95 x 120 | 149 | 65 | 96.0 | 106.0 | M 10 | 83 | 11,200 | 236 | 95 | 80 | 4.30 |
| 100 x 125 | 160 | 70 | 107.0 | 119.0 | M 12 | 145 | 15,100 | 303 | 108 | 92 | 5.50 |
| 110 x 140 | 174 | 70 | 107.0 | 119.0 | M 12 | 145 | 16,600 | 303 | 97 | 82 | 6.80 |
| 120 x 155 | 198 | 90 | 128.0 | 140.0 | M 12 | 145 | 24,200 | 404 | 93 | 77 | 9.90 |
| 130 x 165 | 208 | 90 | 128.0 | 140.0 | M 12 | 145 | 26,200 | 404 | 85 | 72 | 10.50 |
Customers purchasing the MAV 5061 locking device from Dai Hong Phat Corp enjoy the following benefits:
– Dai Hong Phat Corp. is the official authorized distributor of MAV in Vietnam and the Southeast Asia region.
– The company places “quality” as its primary business objective and customer service focus.
– Dai Hong Phat commits that all Locking Assembly MAV 5061 products are 100% genuine, brand new, accompanied by certificates, and have clear origins.
Contact Dai Hong Phat now for consultation!
